Candy Cane Spinner Mount

$46.95

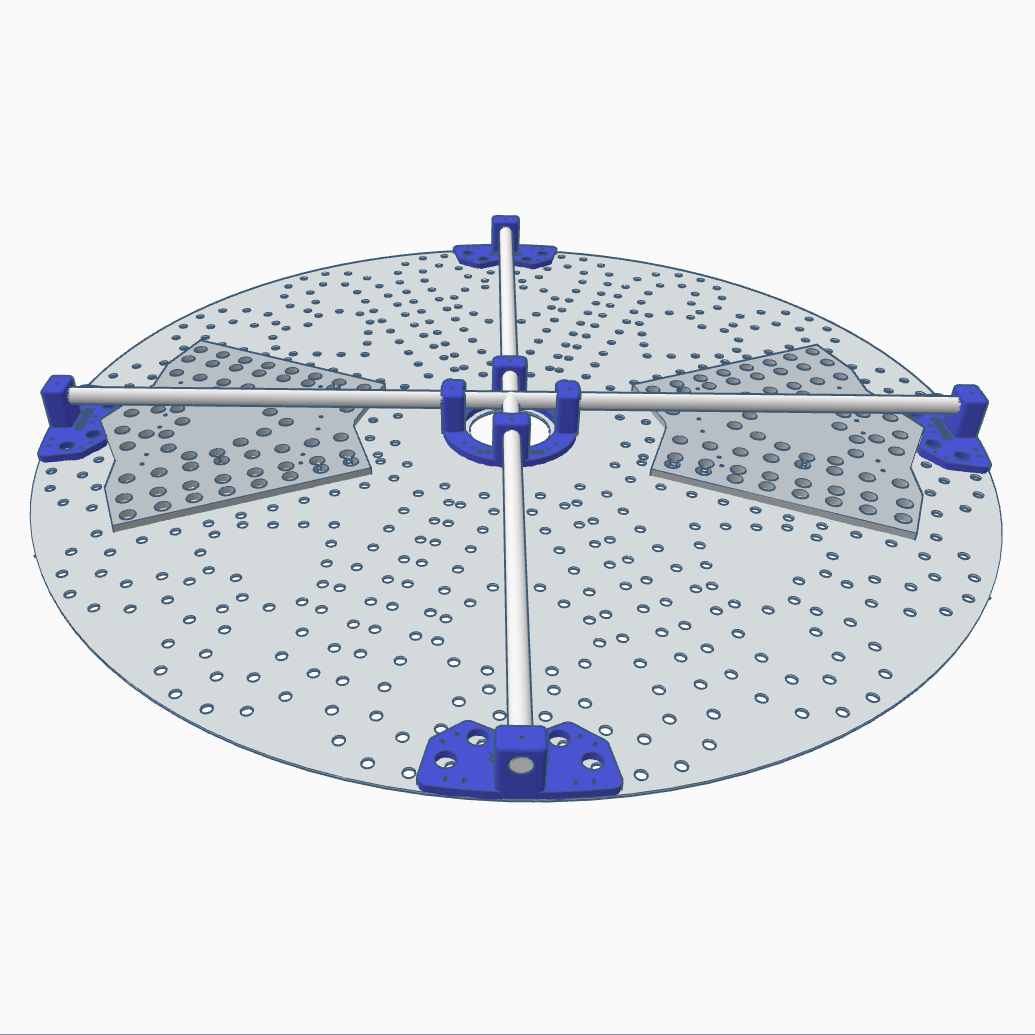

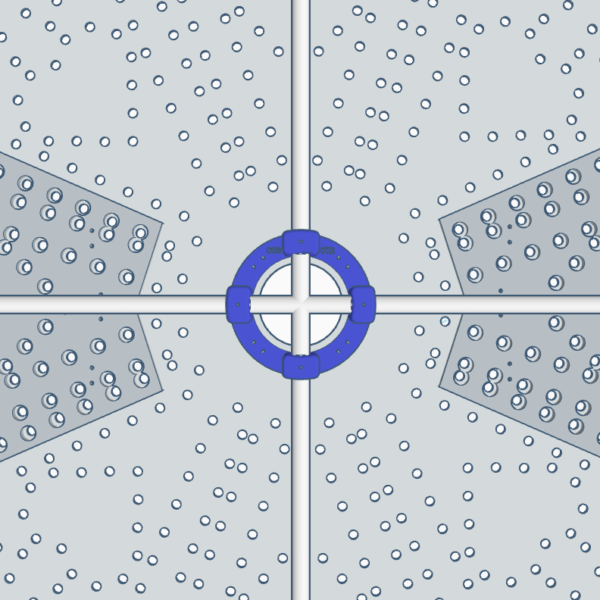

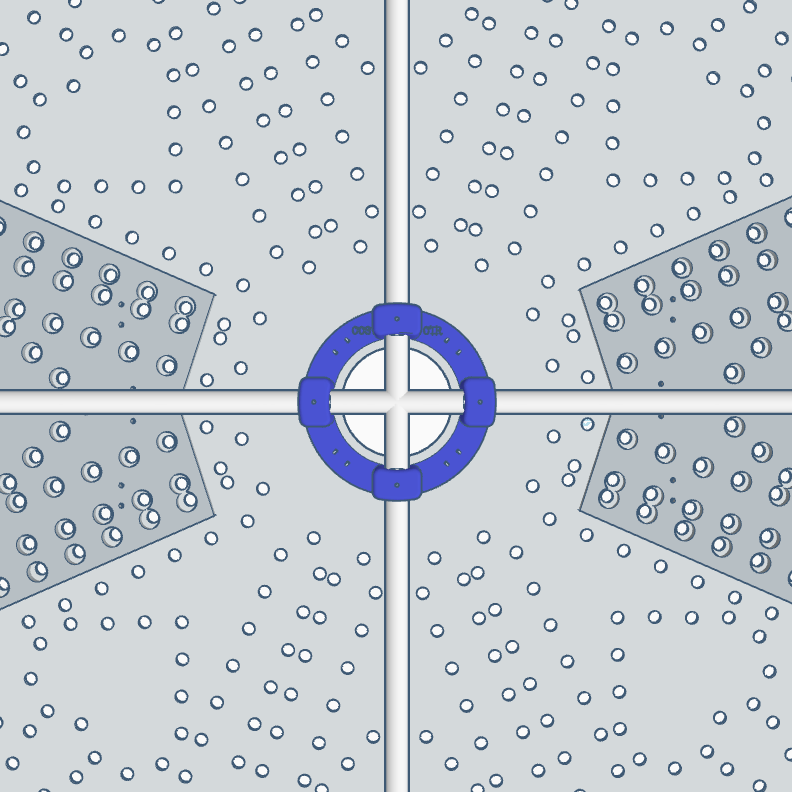

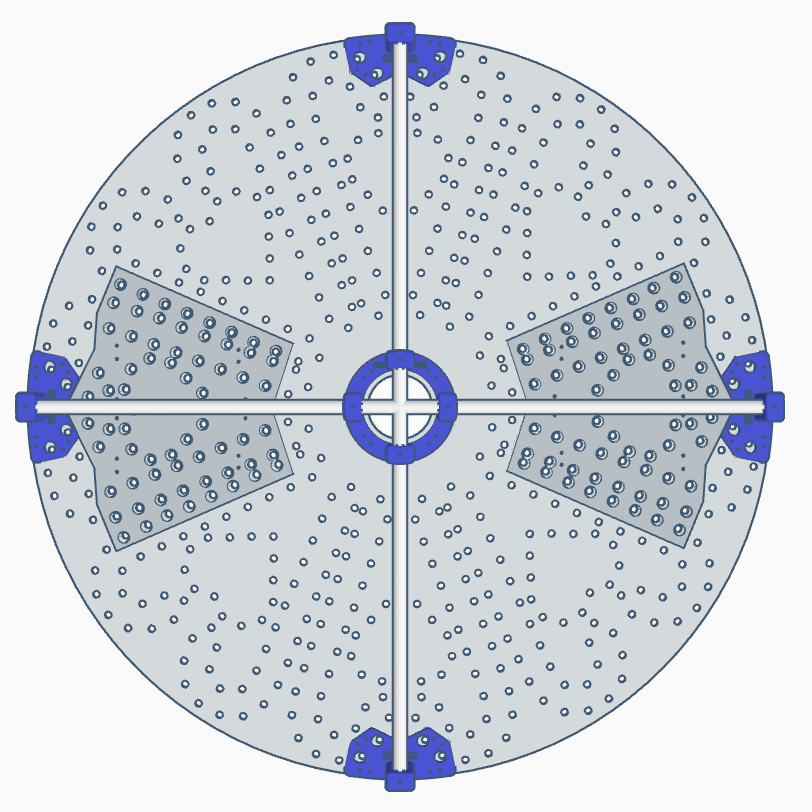

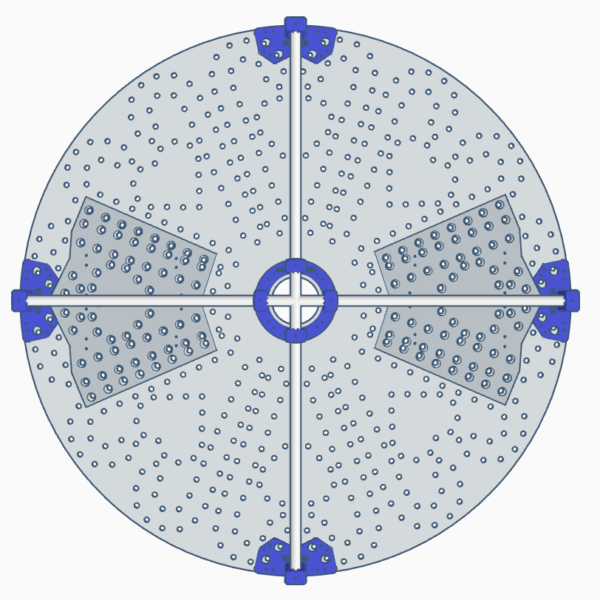

3D Printed mounting system for the Gilbert Engineering Candy Cane Spinner. The mounts work with both the Love and Without Love versions and can be ordered to fit either 1/2″ EMT conduit or 1/2″ PVC pipe. They are zip tied to the coro and and provide a frame structure to increase strength and allow mounting to various surfaces. A 1/2″ PVC cross is utilized at the center junction to connect the perpendicular sections. EMT is recommended for added rigidity since one of the EMT sections can run continuously through the PVC cross at the center of the prop with the EMT to PVC bushings that are included with the EMT version. Colors may vary, typically they are white or black. If you have a specific color request for white or black please include a note indicating your preference with your order, but keep in mind that it may increase processing time for in-stock items. Includes 3D printed parts only.

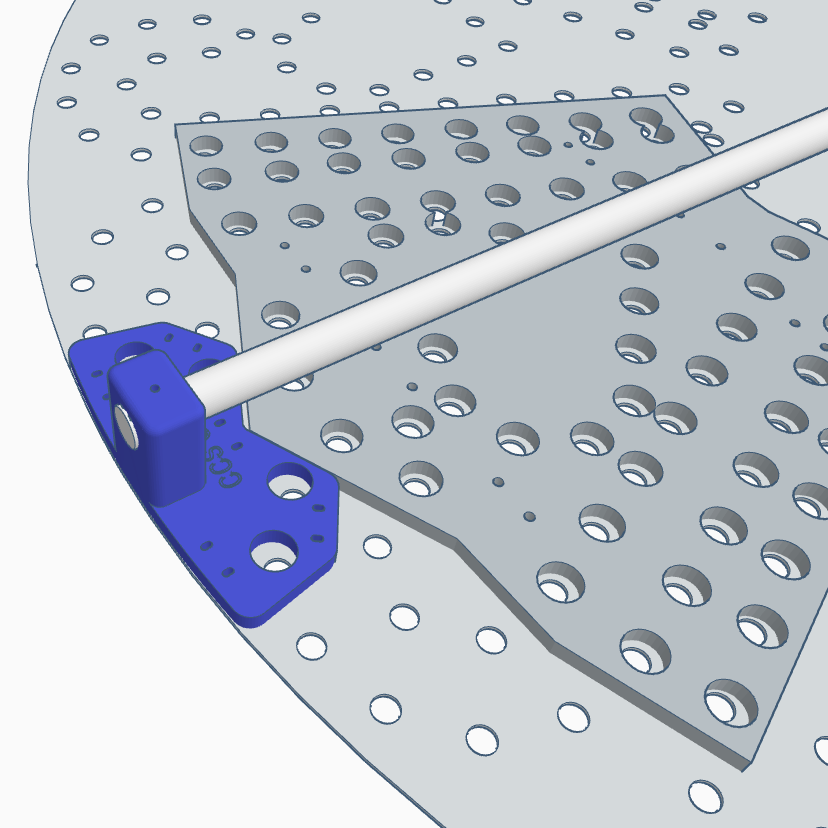

Important: The hole patterns on the Candy Cane Spinner are slightly asymmetric to the center line of the prop by a couple of millimeters. However the mounts themselves are symmetrical, so it is recommended to use a long straight edge to mark the horizontal and vertical center lines of the prop and center the outer mounts on the true center line. Do not to use the pixel holes to line up the outer mounts. The mounts have large enough pixel openings to account for this discrepancy. Before fully tightening the zip ties on the mounts, run the EMT or PVC through all the mount pieces so the position can be adjusted as necessary.

SKU: GE-CCS Category: Tag:

As with all our designs, we strive to utilize the precut zip tie hole locations for our mounts. However, these pre-made holes don’t always align perfectly for optimal mount placement, which means you may need to create additional holes in the coro to secure the mounts with zip ties.

General instructions for attaching mounts to coro props, including zip tie hole alignment, can be found by clicking this link.

3D printing parts is a slow process and we have a whole print farm running 24/7 to fulfill orders and build stock of the more popular items. If you order a product that shows “made to order” we will move it directly to the print queue where it will be printed as soon as possible. While normal processing times for most orders with made to order items is less than a week, it can fluctuate. Very large orders can also experience longer than normal processing times as well because of the high number of hours it takes to produce lots of parts. If processing times are expected to be longer than two weeks before shipping, there will be a banner at the top of the website indicating the expected wait times. See the FAQ page for more info.

All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.

Please follow and like us:
Pin Share
Weight N/A
Mount Type

1/2" EMT, 1/2" PVC
