Star Gazer Mount

$46.95

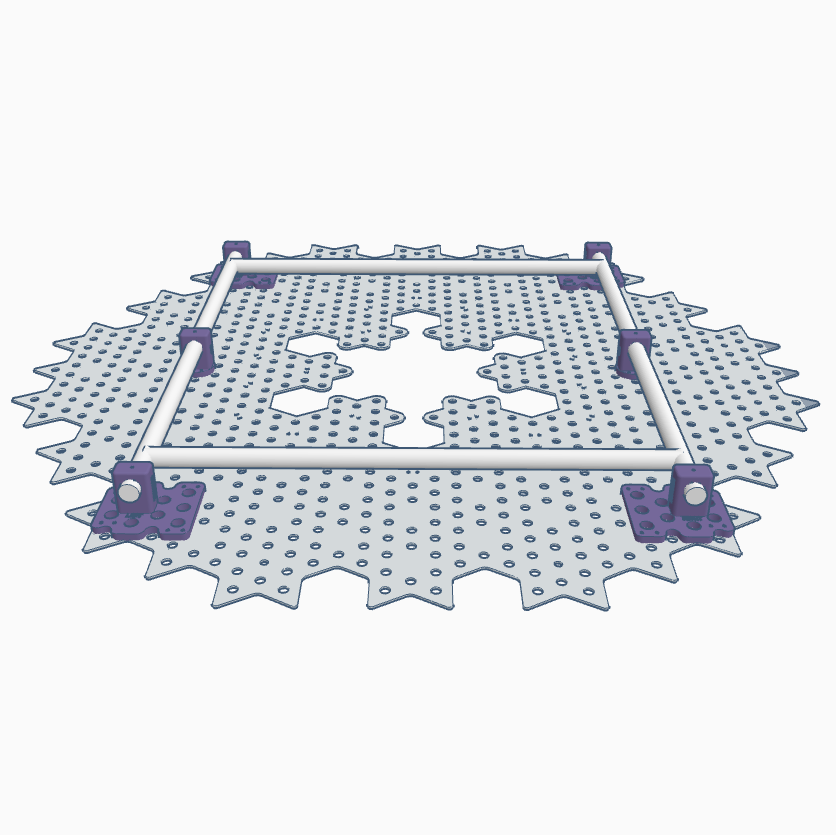

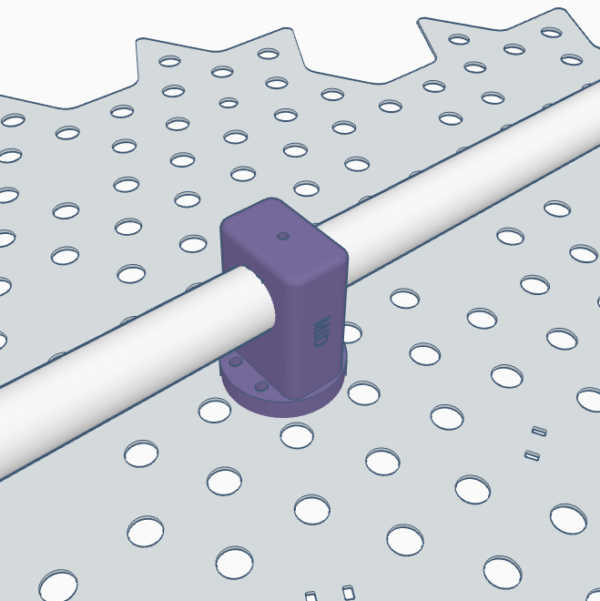

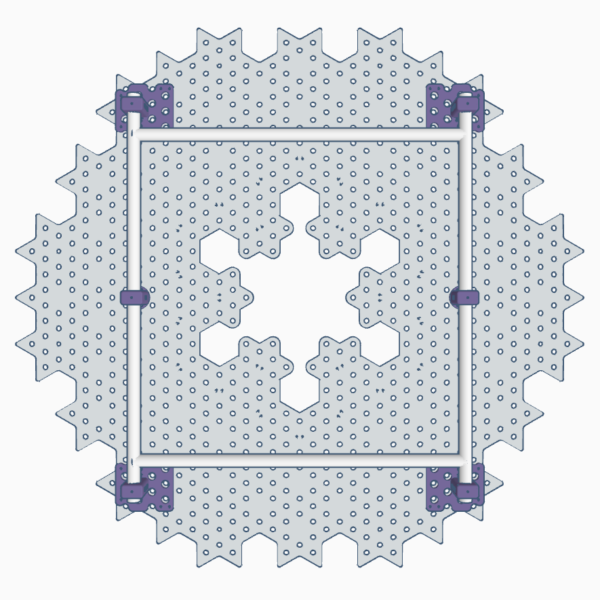

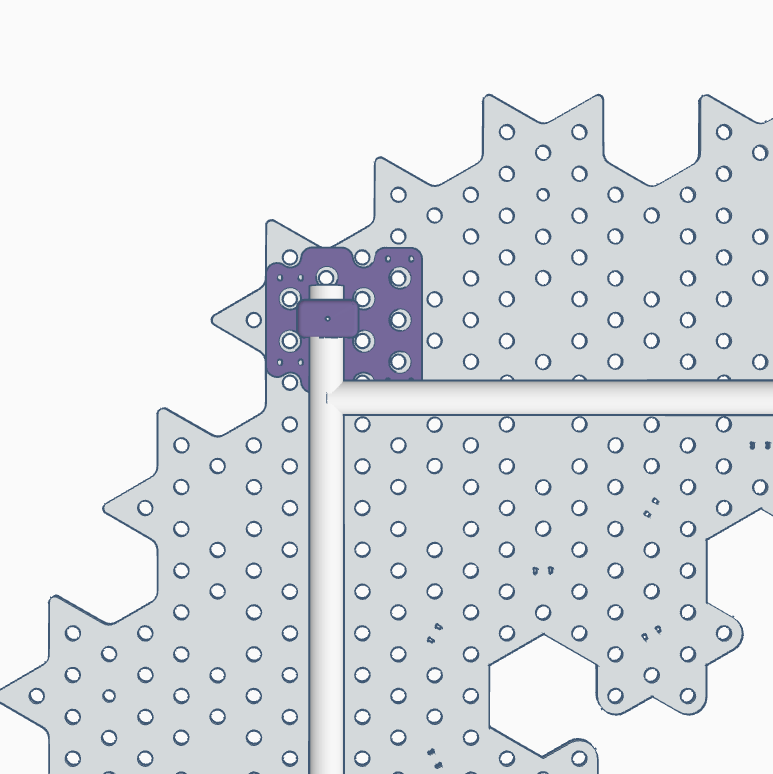

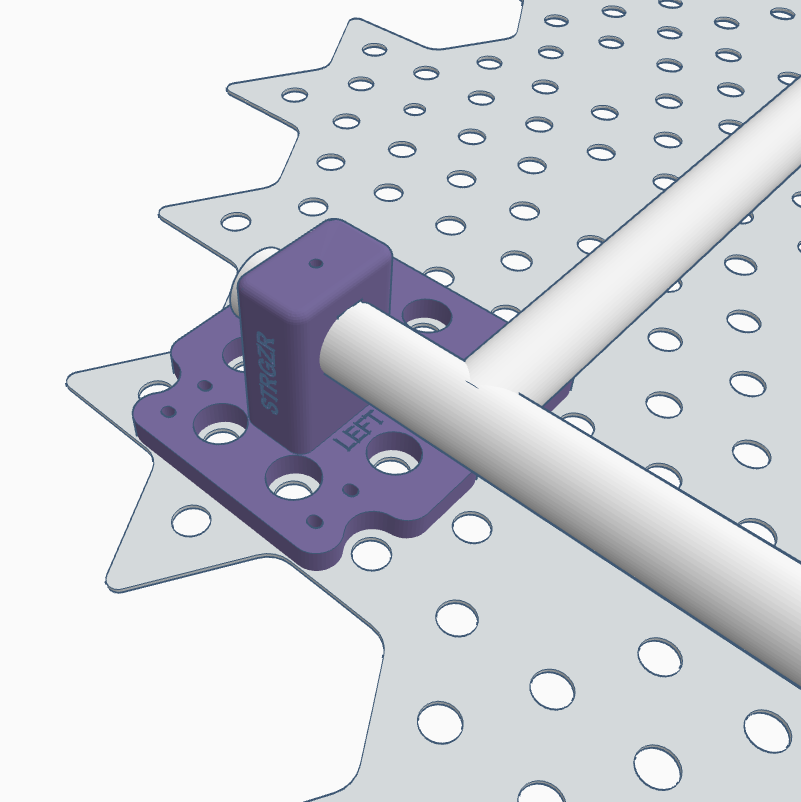

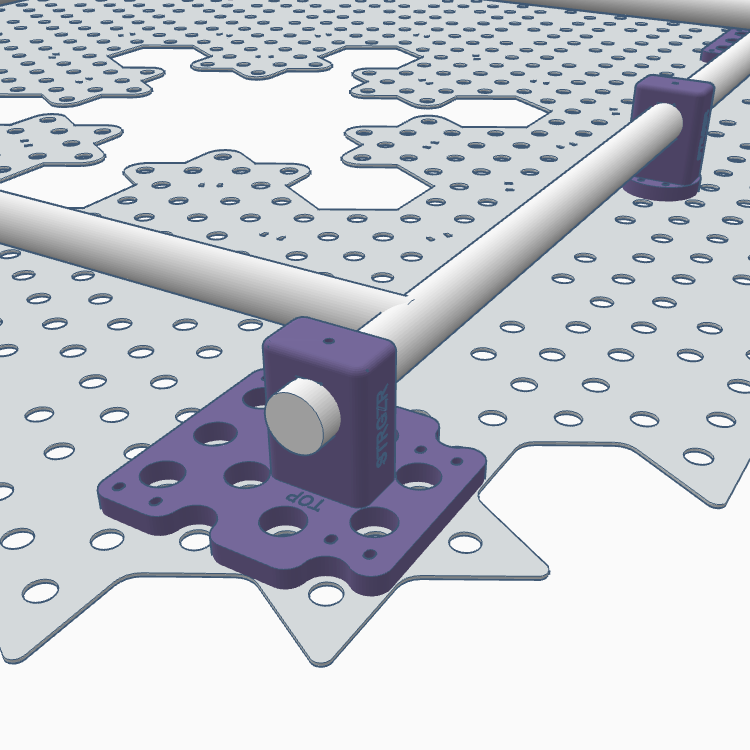

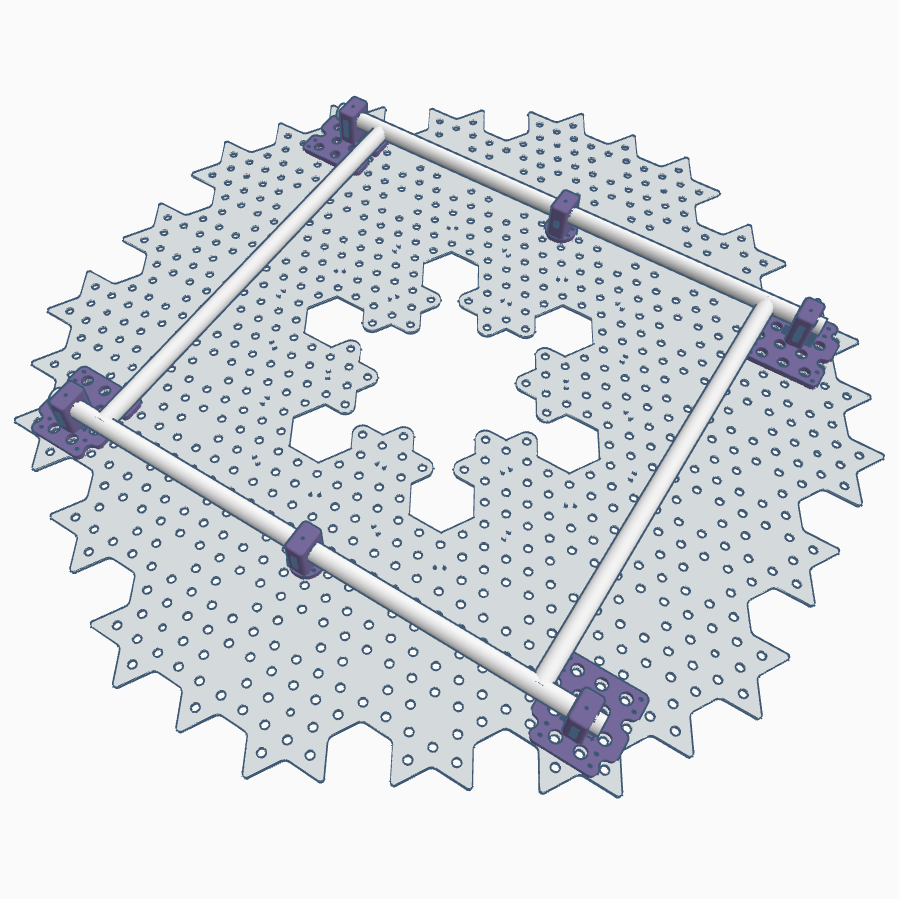

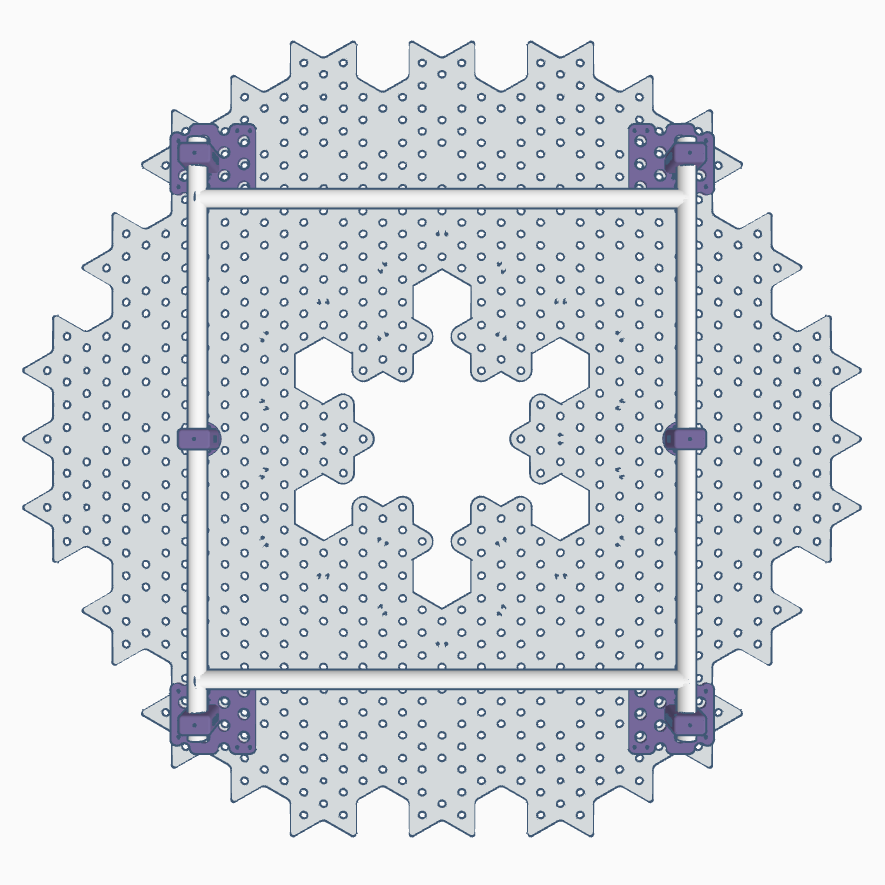

3D Printed mounting system for the Gilbert Engineering Star Gazer. The mounts provide a frame structure behind the coro to increase strength and allow mounting to various surfaces as well as provide rigidity to the prop after it has been slit in half for shipping. The mounts are sized to fit 3/4″ EMT conduit and were designed as a box frame around the Star Gazer so not to obstruct the center opening design. The mounts themselves are zip tied to the coro and feature a hole on the top where a screw can be inserted through the mount and into the EMT to secure it in place. In order to construct the horizontal cross braces, four 3/4″ PVC Tee fittings are required and will utilize the 12 included EMT to PVC bushings that will reduce the size of the PVC Tee so that it accepts the EMT conduit. Once dry fit, drill through the PVC, bushings and EMT at all the junction points with #8 sheet metal screws to lock all components in place. Colors may vary, typically they are white or black. If you have a specific color request for white or black please include a note indicating your preference with your order, but keep in mind that it may increase processing time for in-stock items. Includes 3D printed parts only.

Availability: Only 1 left in stock (then additional ones are made to order)

SKU: GE-STRGZR - w/ 12 bushings Category: Tag:

As with all our designs, we strive to utilize the precut zip tie hole locations for our mounts. However, these pre-made holes don’t always align perfectly for optimal mount placement, which means you may need to create additional holes in the coro to secure the mounts with zip ties.

General instructions for attaching mounts to coro props, including zip tie hole alignment, can be found by clicking this link.

Our goal is to get your order shipped as quickly as possible. Most orders, including made to order items, ship within 3 to 5 business days, and many ship even sooner. If we anticipate processing times exceeding this, the most up-to-date estimated processing times will be displayed in a banner at the top of the website.

All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.
