SpinReel Max 36″ Mount

$39.95

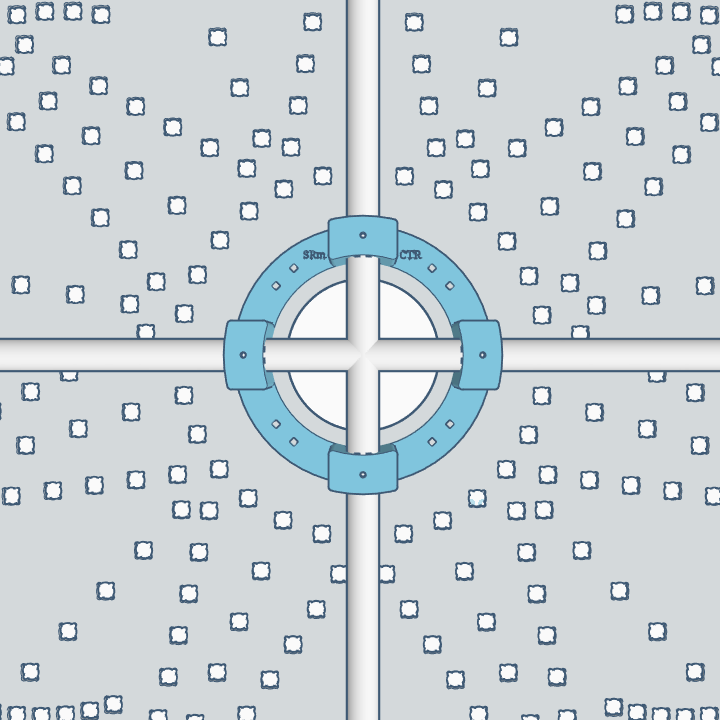

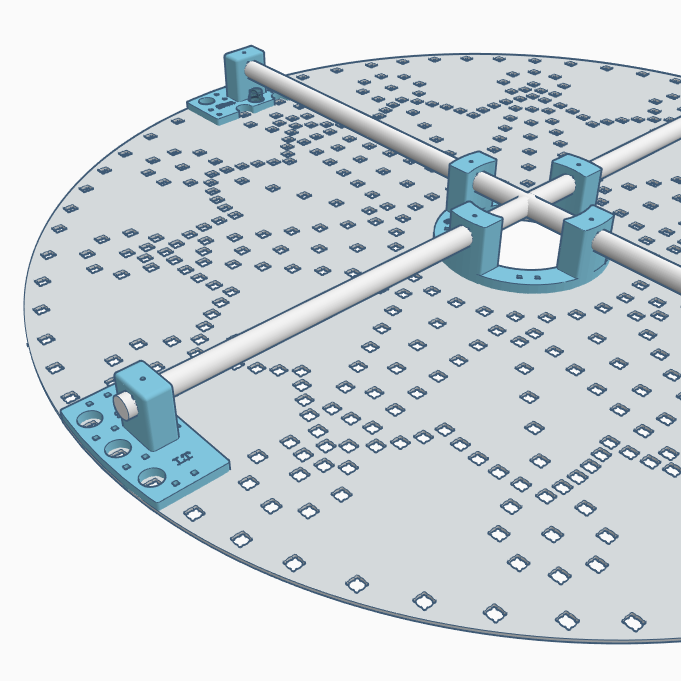

3D Printed mounting system for the Gilbert Engineering SpinReel Max 36″.  These mounts are for the smaller version of the prop, if you have the full size 46″ version of the SpinReel Max there is a different mount for that version. The mounts provide a frame structure behind the coro to increase strength and allow mounting to various surfaces. The mounts can be ordered to fit either 1/2″ EMT conduit or 1/2″ PVC pipe and are designed to be zip tied to the coro. They feature a hole on the top where a screw can be inserted through the mount and into the EMT or PVC to secure it in place. A 1/2″ PVC cross is utilized at the center junction to connect the perpendicular sections. On these high density props EMT is recommended due to the increased weight of all the pixels. EMT also provides added rigidity since one of the EMT sections can run continuously through the PVC cross at the center of the prop with the EMT to PVC bushings that are included with the EMT version. Colors may vary, typically they are white or black. If you have a specific color request for white or black please include a note indicating your preference with your order, but keep in mind that it may increase processing time for in-stock items. Includes 3D printed parts only.

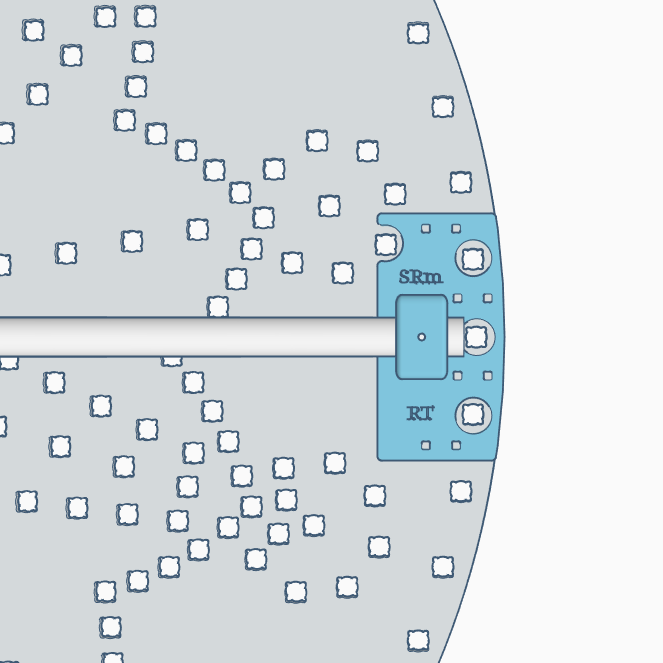

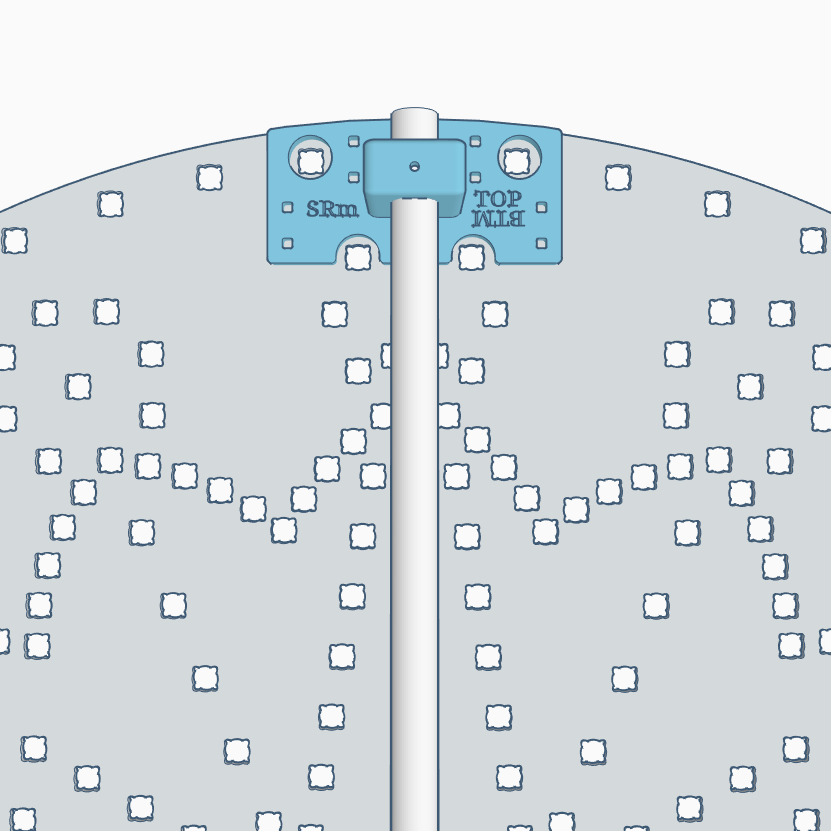

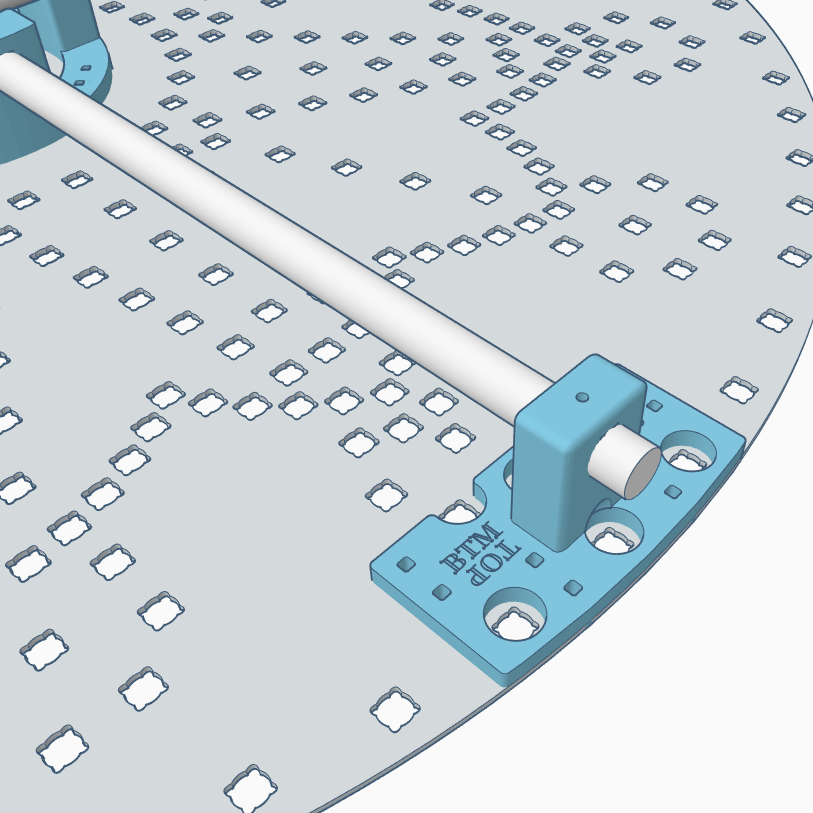

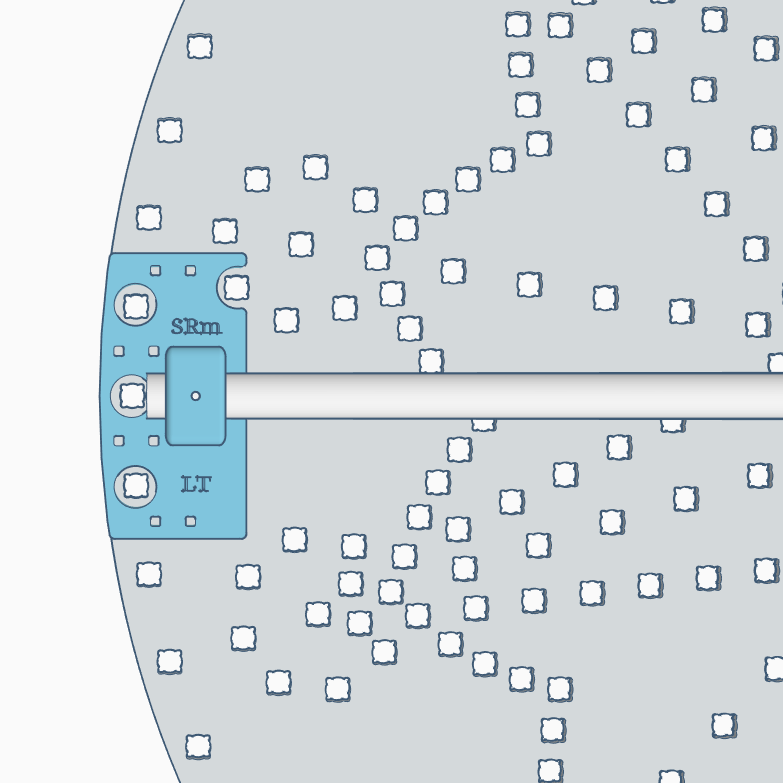

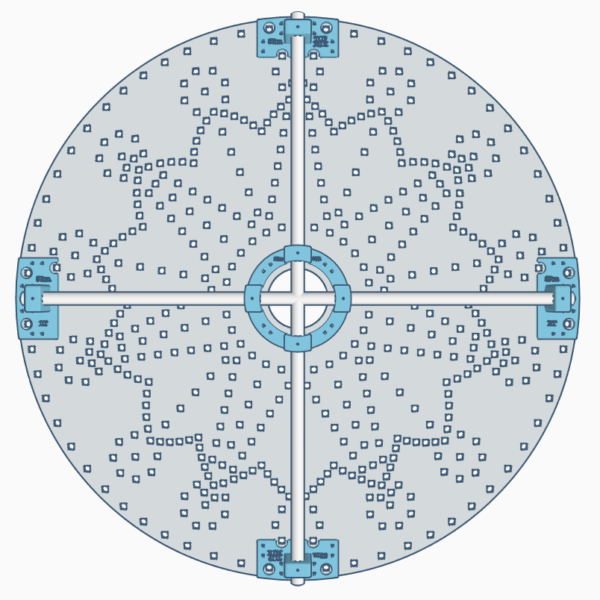

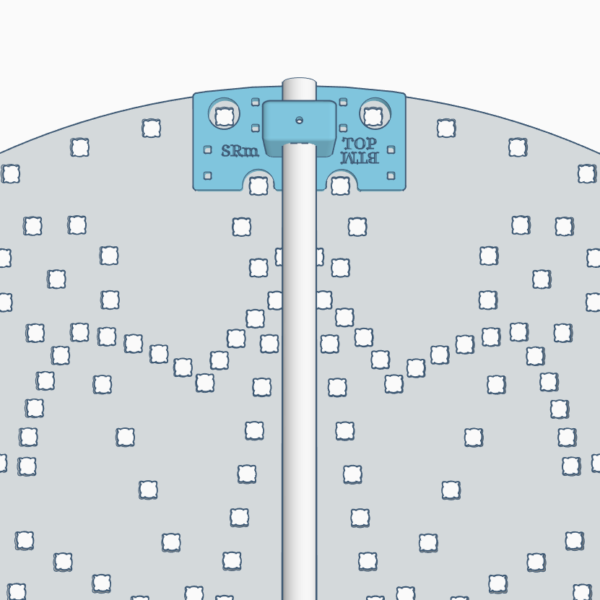

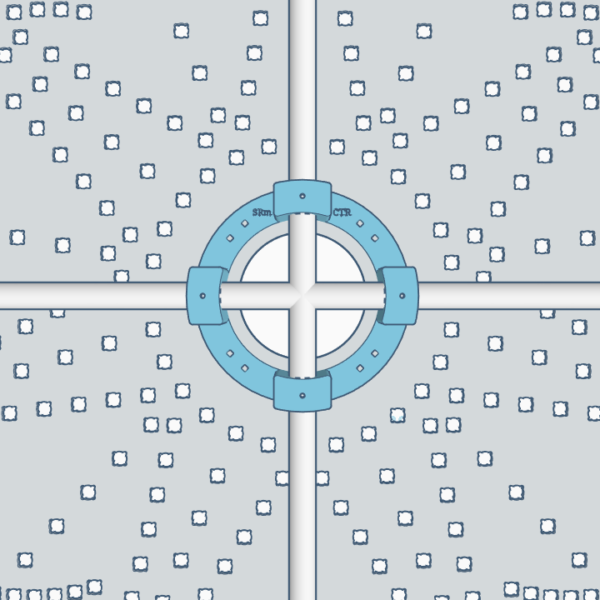

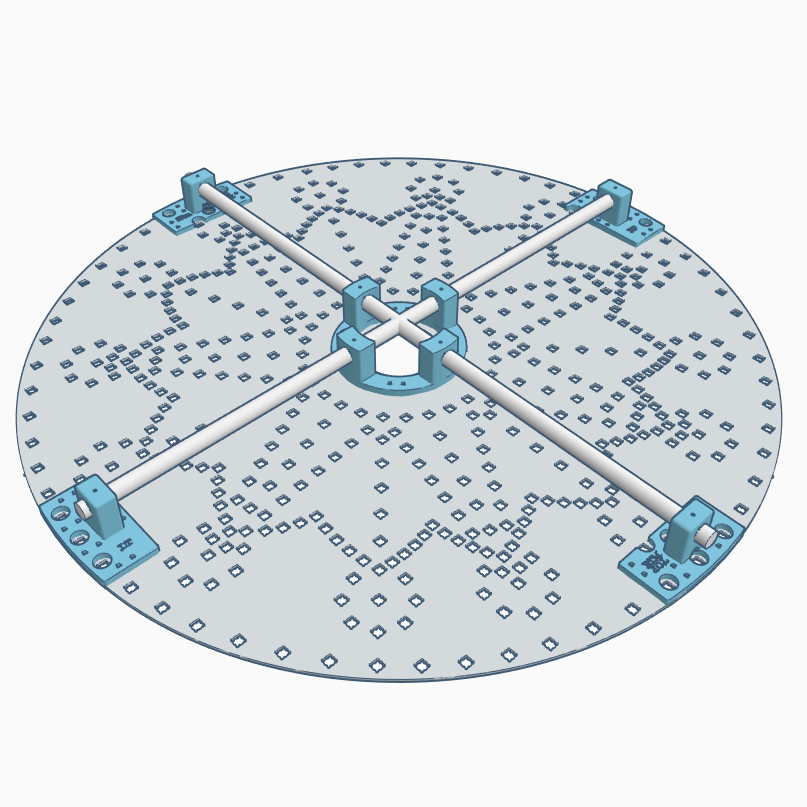

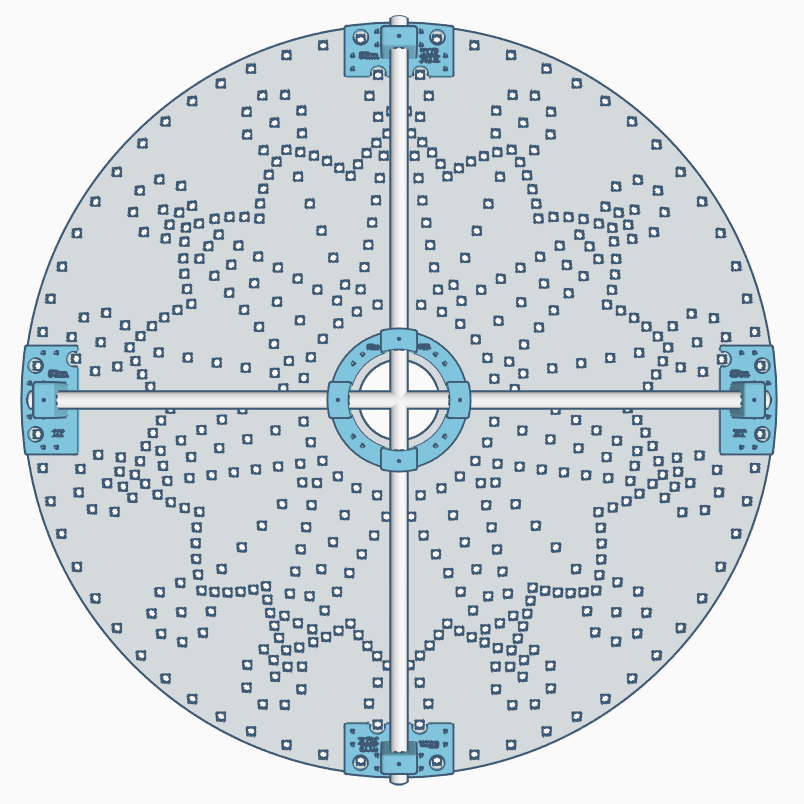

The orientation of the SpinReel Max is very critical since the mounts only will align in one direction. Pay close attention to the renderings and how there is a triangle pointed straight up and a spoke that runs perfectly straight top to bottom. In many of the similar looking orientations the spokes will be slightly offset on the vertical axis which is incorrect. Also note the orientation of the spokes and triangles at the left and right mounts. The triangles are on the lower portion and the single spokes are on the higher portion.

** NOTE: SHIPPING WILL BE INVOICED SEPARATELY **

Clear
SKU: GE-SRm Category: Tag:

3D printing parts is a slow process and we have a whole print farm running 24/7 to fulfill orders and build stock of the more popular items. In stock items will be ready for shipping, pending payment of the shipping invoice, either same day or next day. If you order a product on backorder we will move it directly to the print queue where it will be printed as soon as possible. While normal processing times for most orders with backordered items is less than a week, it can fluctuate from time to time around 1-2 weeks. Very large orders can also experience longer than normal processing times as well. If processing times are expected to be longer than two weeks before shipping, there will be a banner at the top of the website indicating the expected wait times. Additionally very large orders could have longer delays due to the vast number of printer hours required for production of the parts. We will contact you and let you know the expected production time if it were to exceed the estimated timeline for very large orders. Orders will ship USPS by default unless FedEx is specifically requested. See the FAQ page for more info.

All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.



Please follow and like us:
Weight N/A
Mount Type

1/2" EMT, 1/2" PVC

Reviews

There are no reviews yet.

Be the first to review “SpinReel Max 36″ Mount”
