Small World Mount

$42.95$43.95

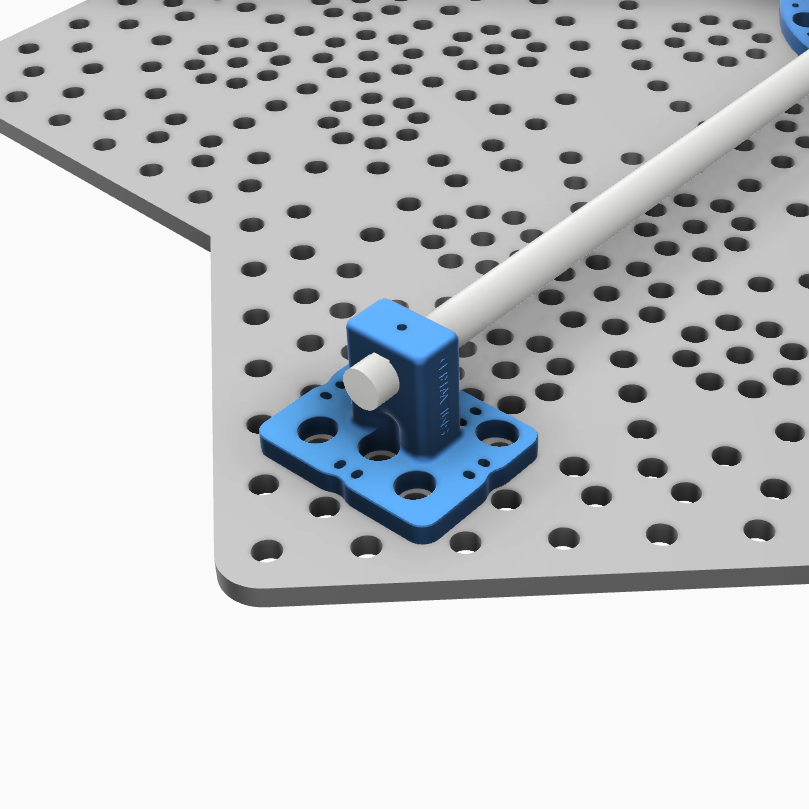

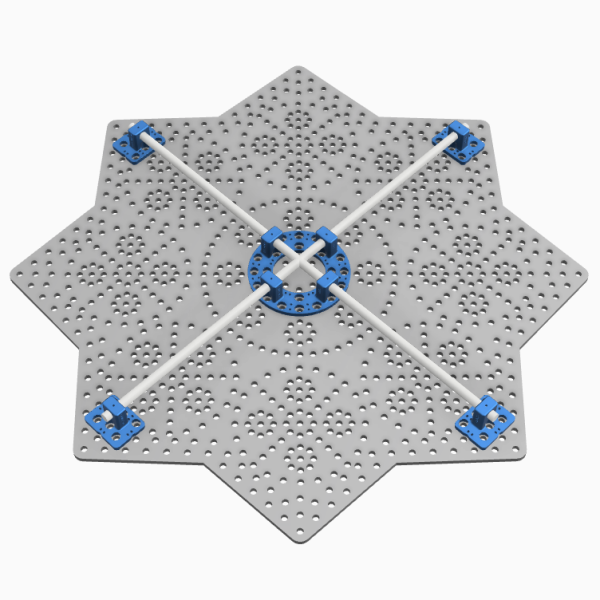

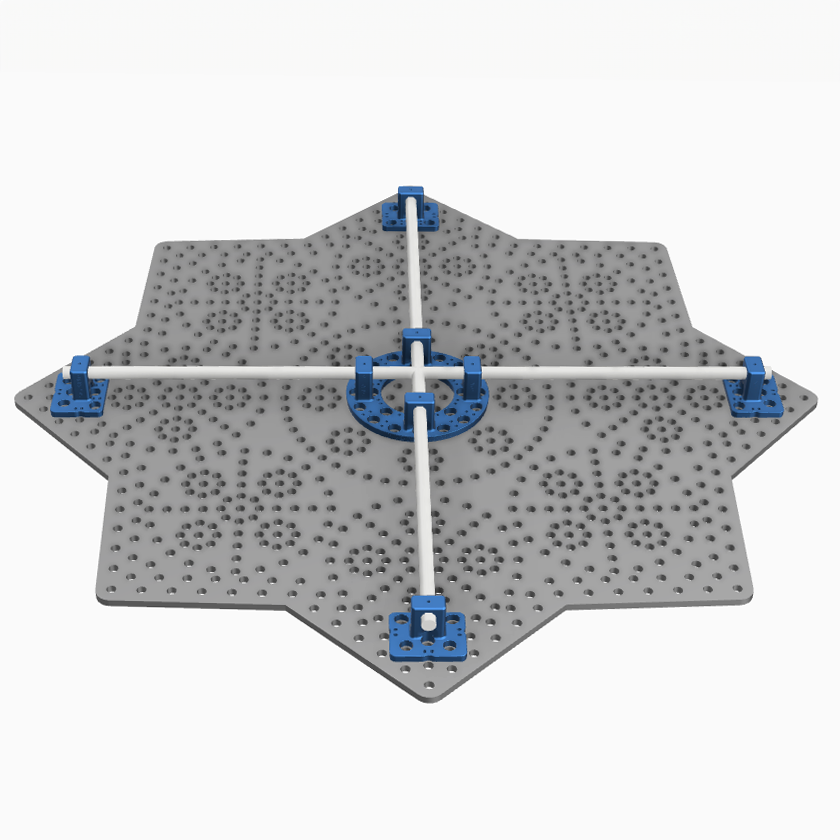

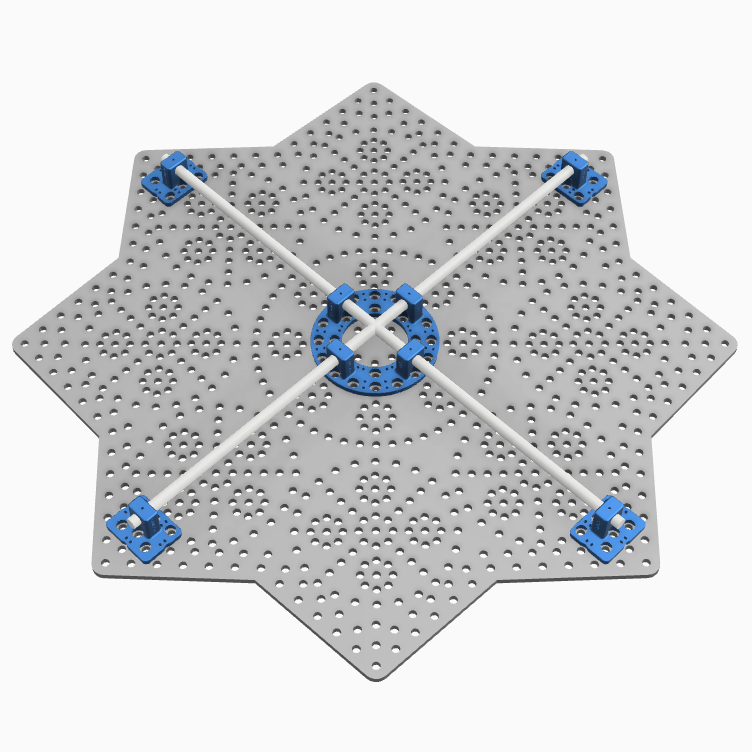

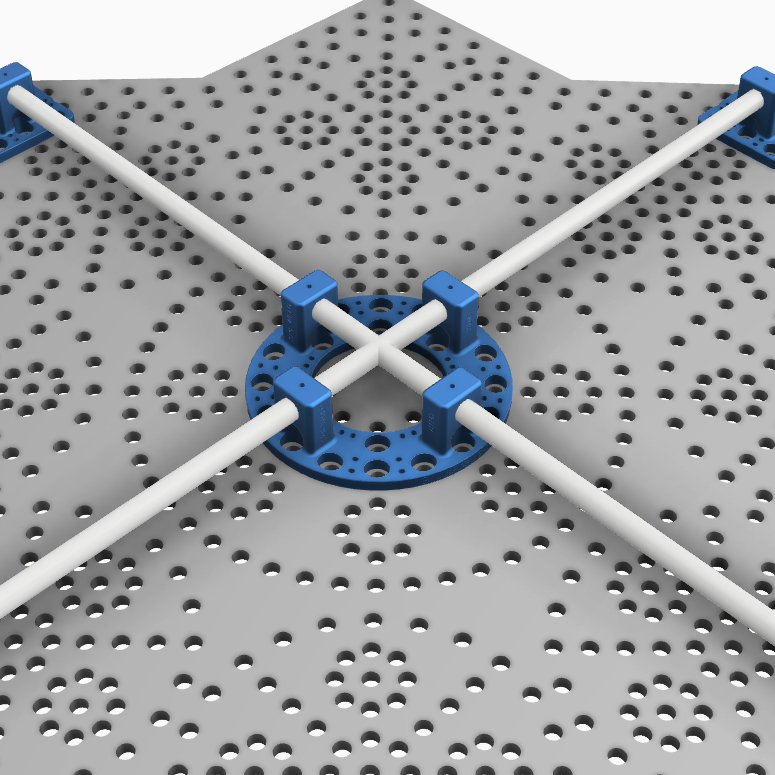

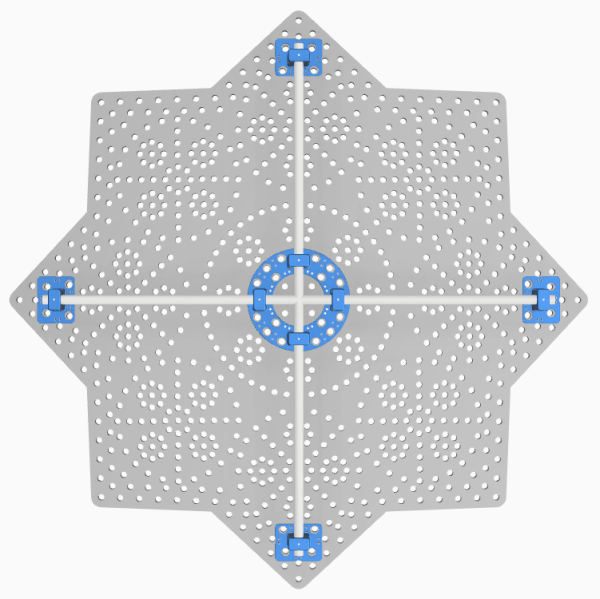

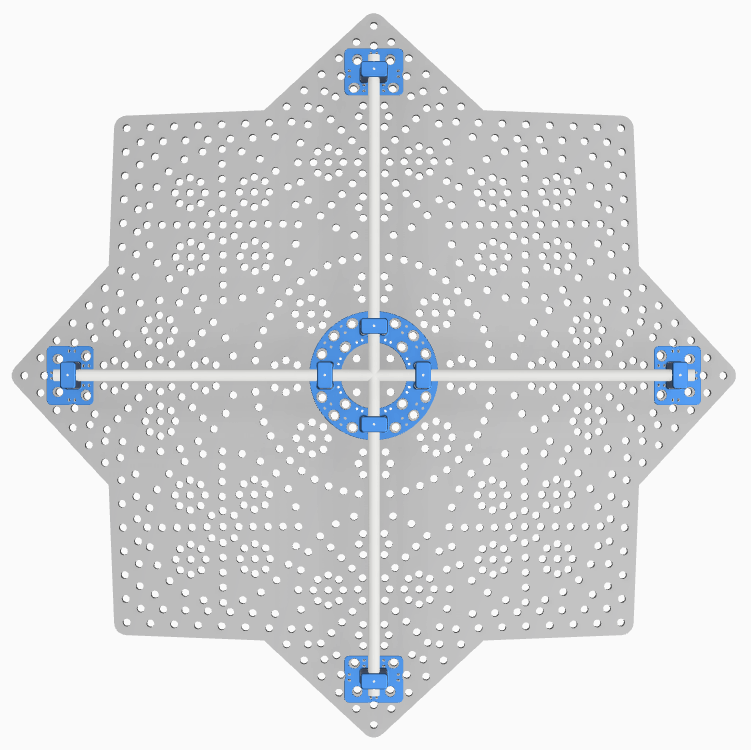

3D Printed mounting system for the Gilbert Engineering Small World 46″. The mounts provide a frame structure behind the coro to increase strength and allow mounting to various surfaces as well as provide rigidity to the prop after it has been slit in half for shipping. The mounts can be ordered to fit either 1/2″ or 3/4″ EMT conduit and are designed to be zip tied to the coro. The conduit slides through the mounts with the center junction utilizing a 1/2″ or 3/4″ PVC cross (depending on which size conduit used) that allows the smaller EMT conduit to pass through with the included bushings. The conduit is then secured to the mounts using screws to lock the mounting frame in place to the prop. Colors may vary, typically they are white or black. If you have a specific color request for white or black please include a note indicating your preference with your order, but keep in mind that it may increase processing time for in-stock items. Includes 3D printed parts only. More information below.

SKU: GE-SMLWRLD Category: Tag:

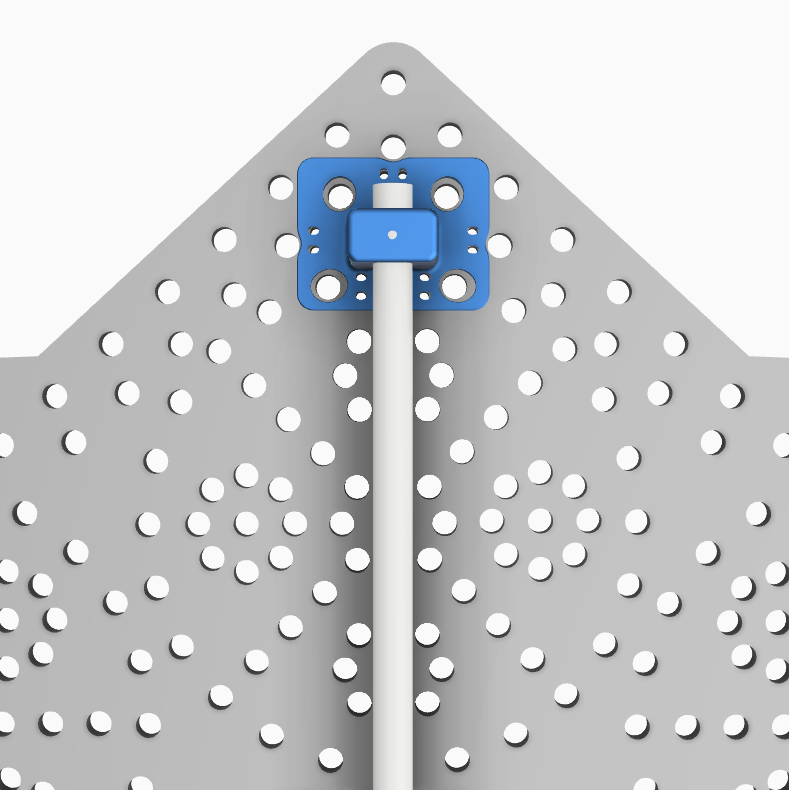

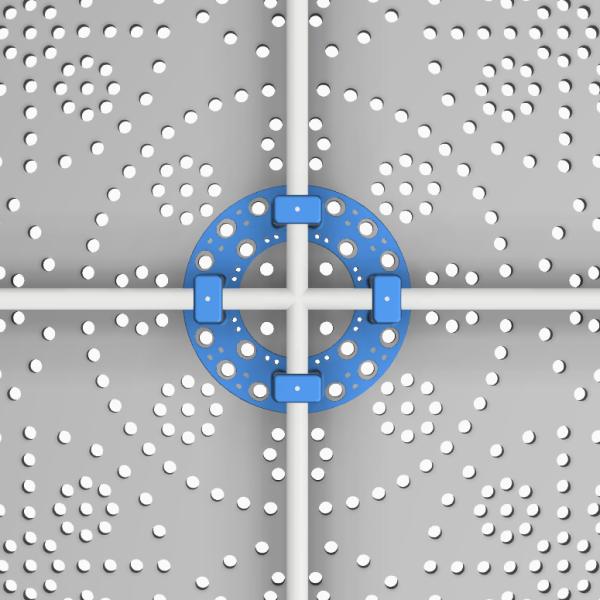

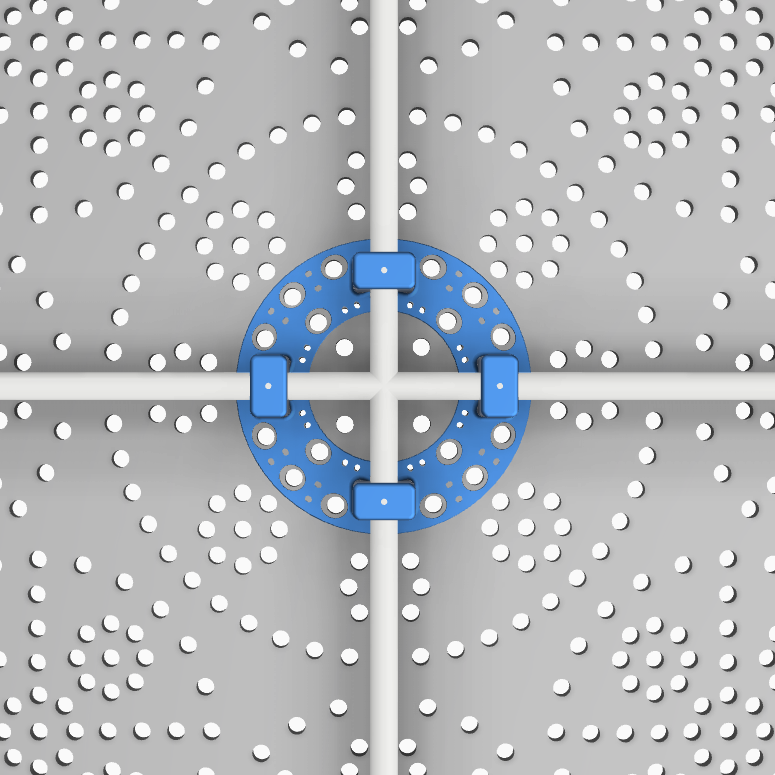

Many of the the pixel holes on the Small World are not symmetric about the horizontal or vertical centerlines of the prop and vary by a few millimeters, this is most apparent on the center mount. To compensate for this variation the impacted pixel holes on the mount are elliptical and are placed at the average center point of the pixels. The mounts should be placed on the prop where the alignment averages out between the pixel and zip tie holes. We recommend not fully tightening the zip ties until the conduit is fully inserted to allow for small adjustment of the final fit.

General instructions for attaching mounts to coro props, including zip tie hole alignment, can be found by clicking this link.

3D printing parts is a slow process and we have a whole print farm running 24/7 to fulfill orders and build stock of the more popular items. If you order a product that shows “made to order” we will move it directly to the print queue where it will be printed as soon as possible. While normal processing times for most orders with made to order items is less than a week, it can fluctuate. Very large orders can also experience longer than normal processing times as well because of the high number of hours it takes to produce lots of parts. If processing times are expected to be longer than two weeks before shipping, there will be a banner at the top of the website indicating the expected wait times. See the FAQ page for more info.

All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.

Please follow and like us:
Pin Share
Weight N/A
EMT Size

1/2" EMT, 3/4" EMT

Reviews

There are no reviews yet.

Be the first to review “Small World Mount”
