PPD GeoWreath Mount

$46.95

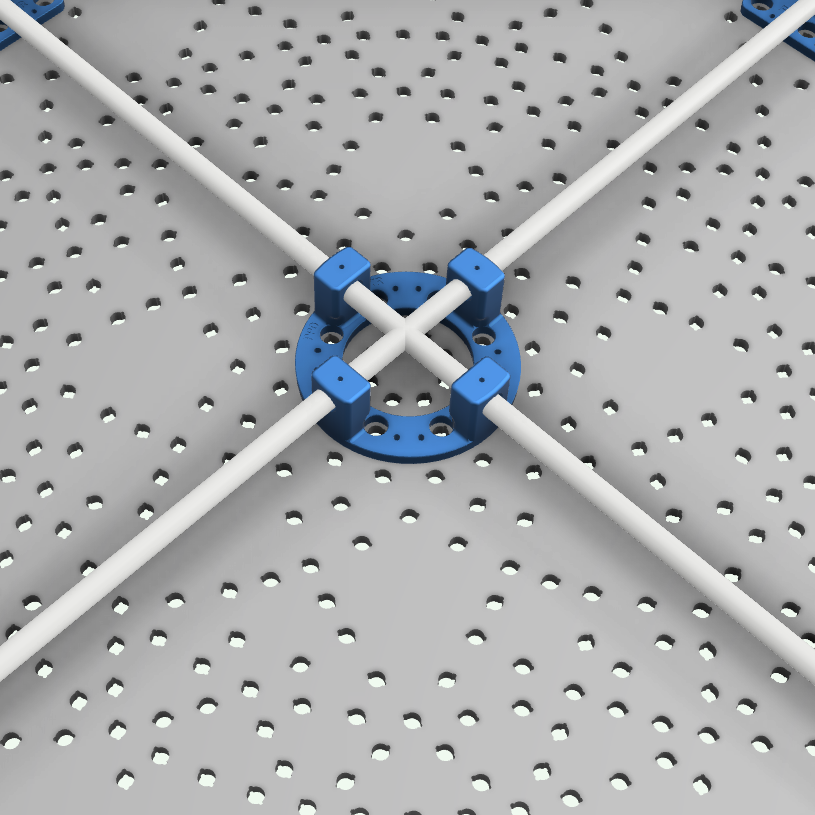

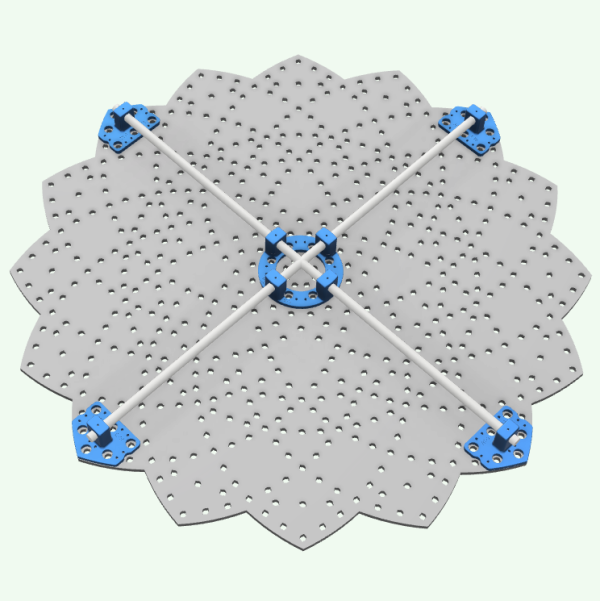

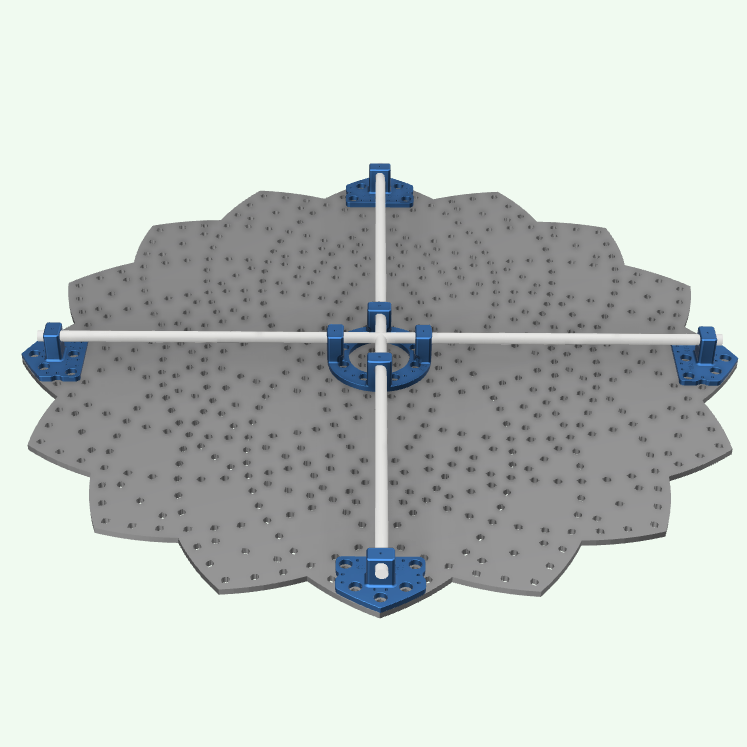

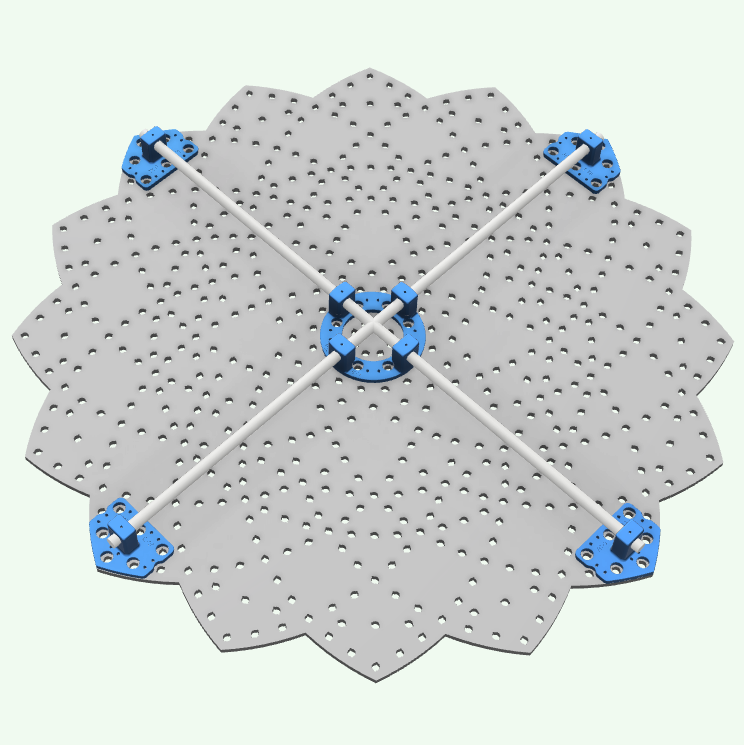

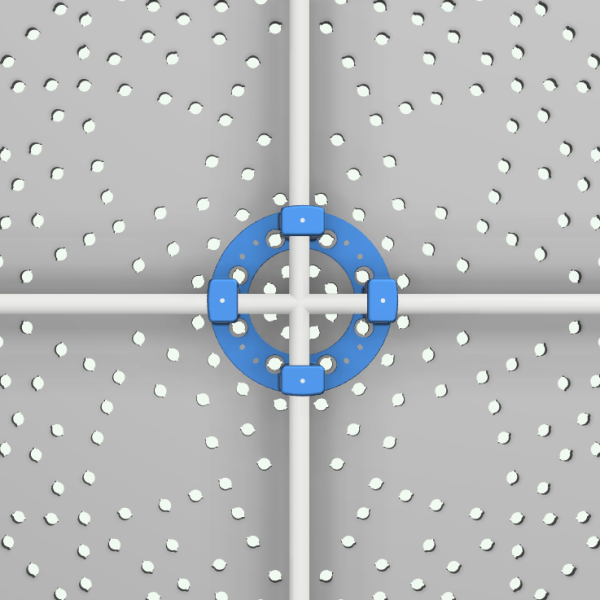

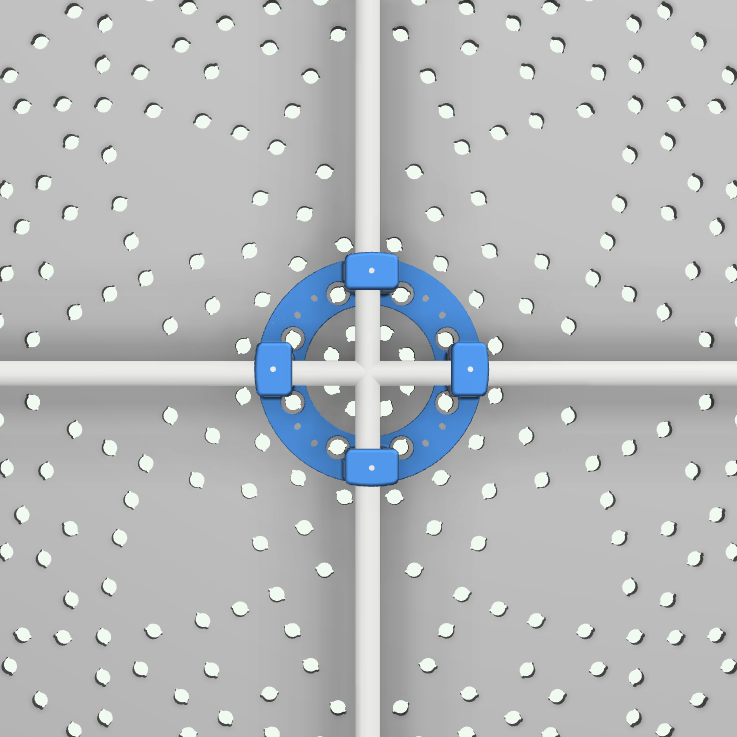

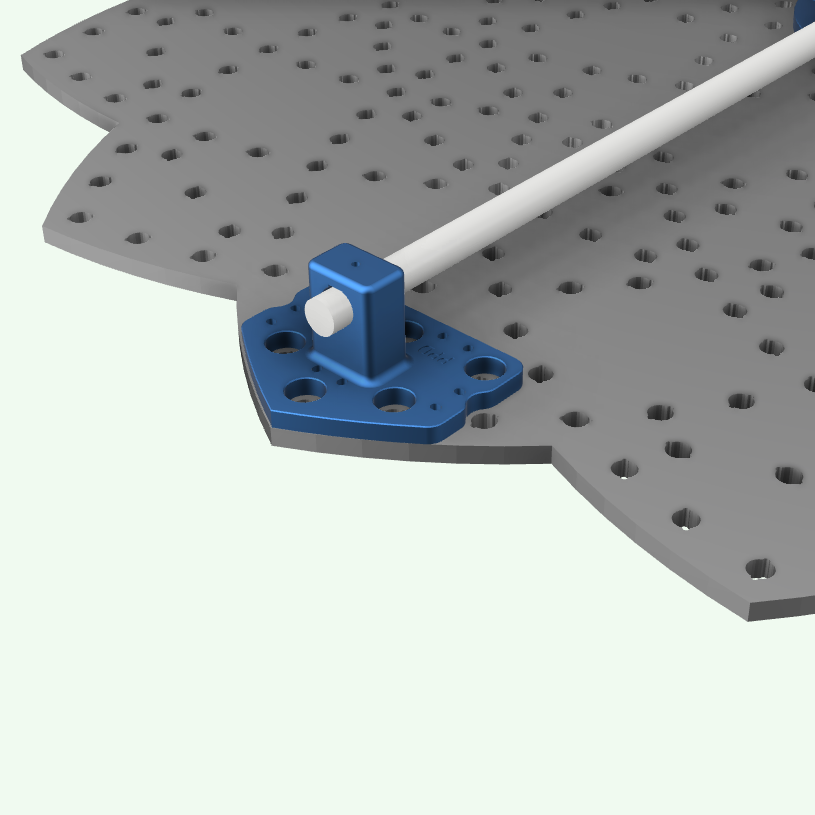

3D Printed mounting system for the 46.5″ Boscoyo Studios PPD GeoWreath. The mounts provide a frame structure behind the coro to increase strength and allow mounting to various surfaces and are available to fit both 1/2″ EMT conduit and 1/2″ PVC pipe. They are designed to be zip tied to the coro and a 1/2″ PVC cross is utilized at the center junction to connect the perpendicular sections. On these high density props EMT is recommended due to the increased weight of all the pixels. EMT also provides added rigidity since one of the EMT sections can run continuously through the PVC cross at the center of the prop with the EMT to PVC bushings that are included with the EMT version. For those who have a prop that has been slit in half for shipping, we offer optional printed backer plates to help reinforce the prop. (Details below) Colors may vary, typically they are white or black. If you have a specific color request for white or black please include a note indicating your preference with your order, but keep in mind that it may increase processing time for in-stock items. Includes 3D printed parts only.

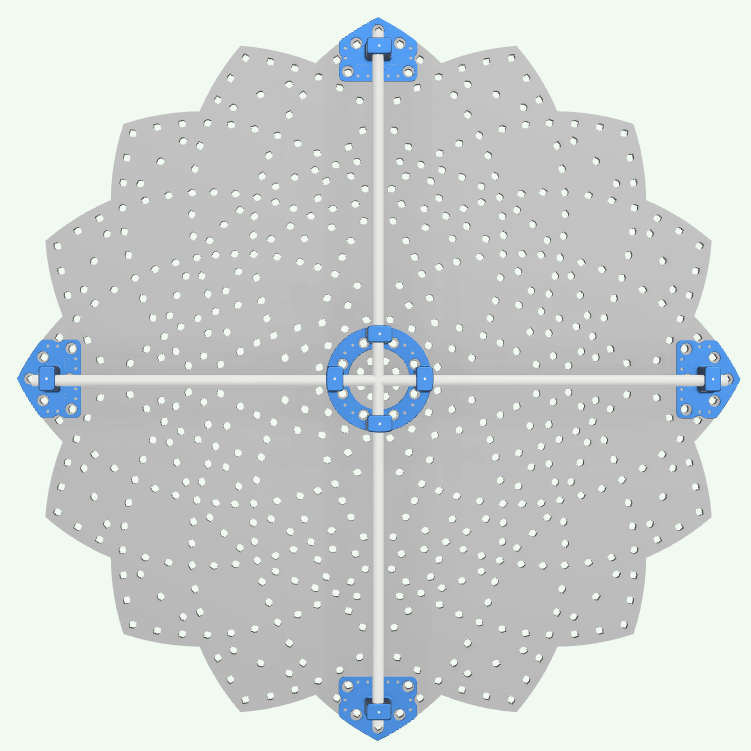

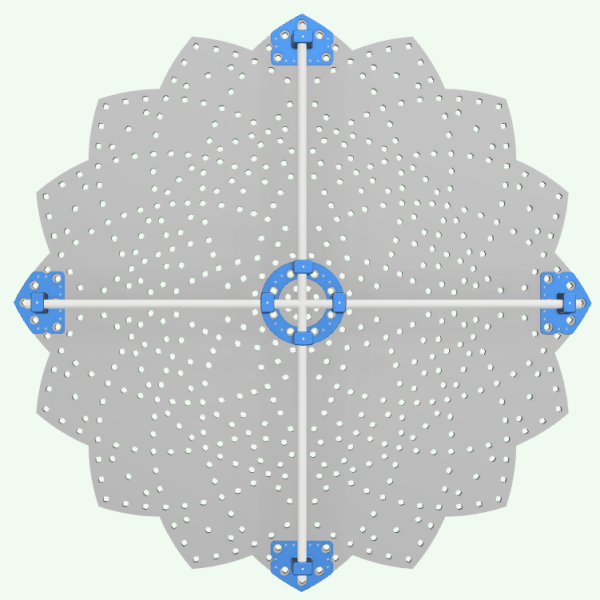

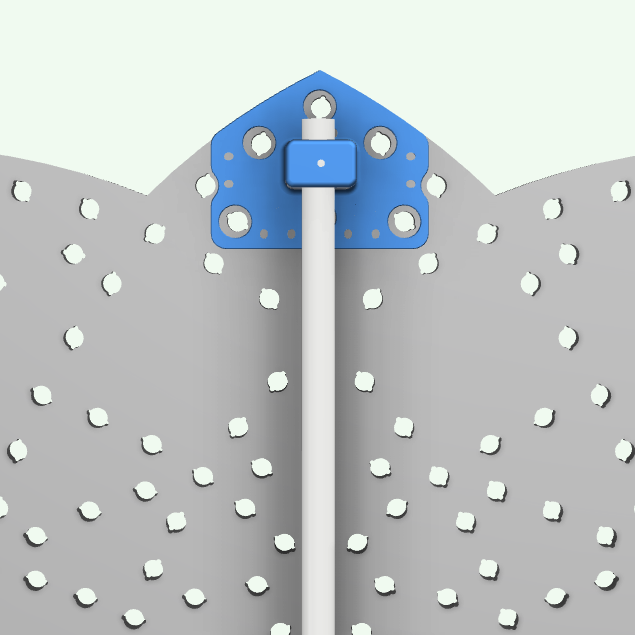

The orientation shown of the PPD Wreath in these renderings is correct and matches the xLights model and the original concept from PPD. The orientation shown in the pics on the Boscoyo website is incorrect and when making the slit on the prop for shipping, they are slitting across a valley and not along the outer peaks of the prop. The result is that the slit is 11.25 degrees off from the horizontal axis of the prop where the mounts are correctly located and the outer mounts do not pass over the slit. We have designed a pair of backer plates that will reinforce the slit which adds strength and rigidity back into the prop. These backer plates are sold separately and are designed to work with the prop mounting system. If you have any questions don’t hesitate to ask us.

SKU: BS-PPD Category: Tag:

As with all our designs, we strive to utilize the precut zip tie hole locations for our mounts. However, these pre-made holes don’t always align perfectly for optimal mount placement, which means you may need to create additional holes in the coro to secure the mounts with zip ties.

General instructions for attaching mounts to coro props, including zip tie hole alignment, can be found by clicking this link.

3D printing parts is a slow process and we have a whole print farm running 24/7 to fulfill orders and build stock of the more popular items. If you order a product that shows “made to order” we will move it directly to the print queue where it will be printed as soon as possible. While normal processing times for most orders with made to order items is less than a week, it can fluctuate. Very large orders can also experience longer than normal processing times as well because of the high number of hours it takes to produce lots of parts. If processing times are expected to be longer than two weeks before shipping, there will be a banner at the top of the website indicating the expected wait times. See the FAQ page for more info.

All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.

Please follow and like us:
Pin Share
Weight N/A
Mount Type

1/2" EMT, 1/2" PVC
