Nash Tree Mount

$37.95

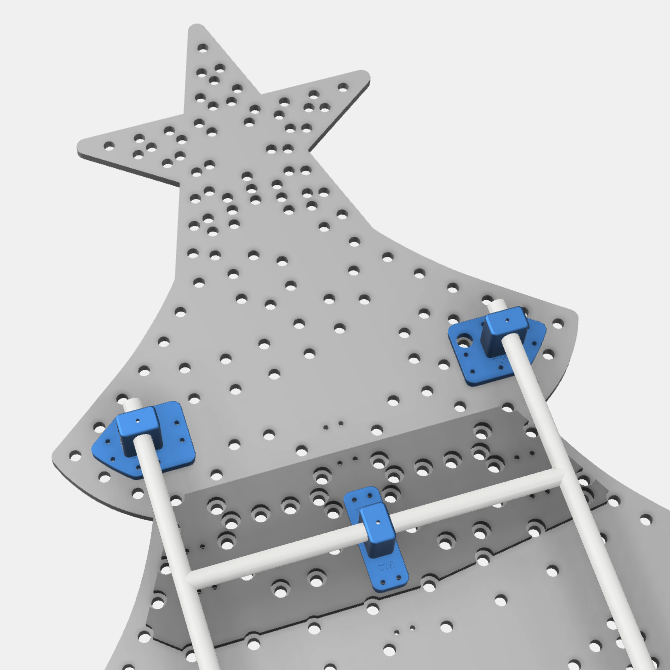

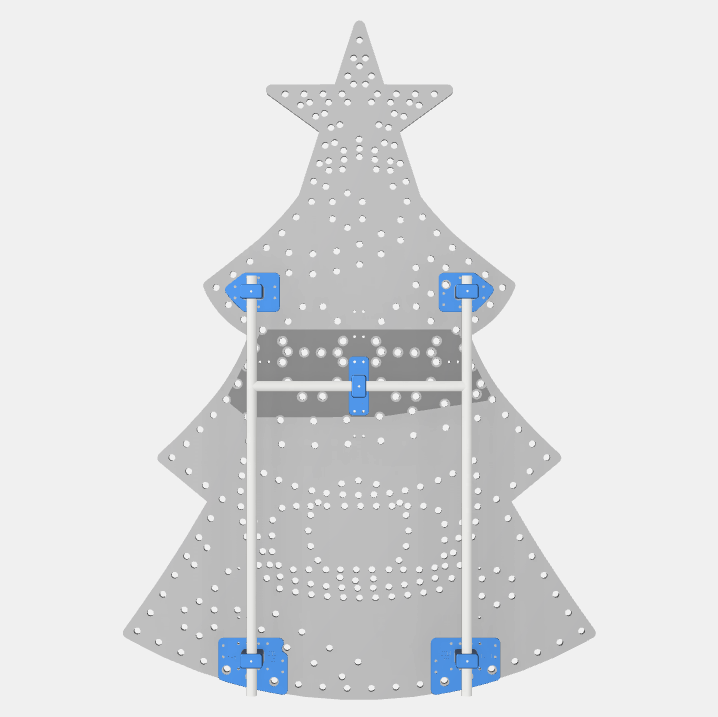

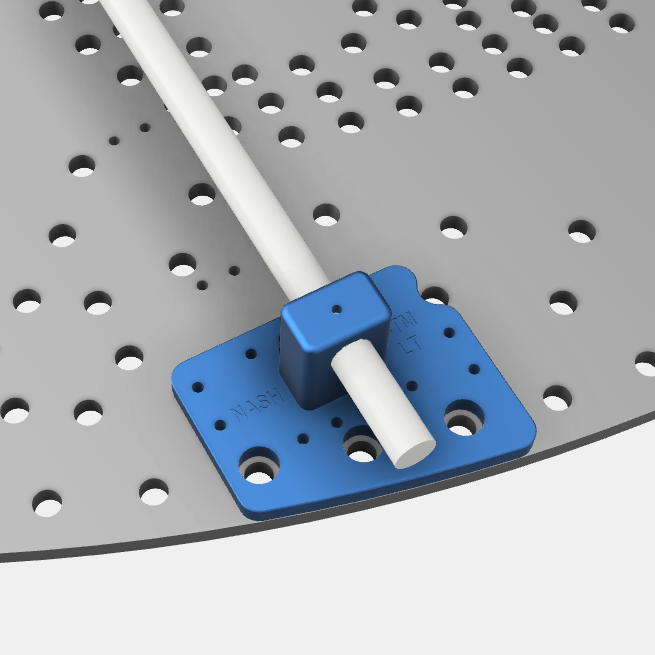

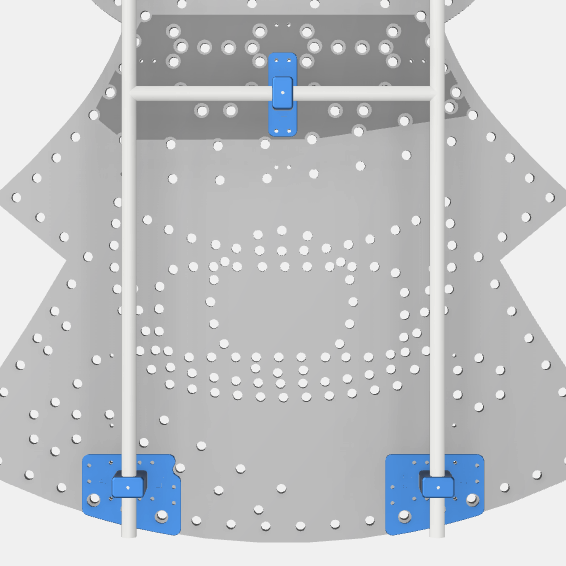

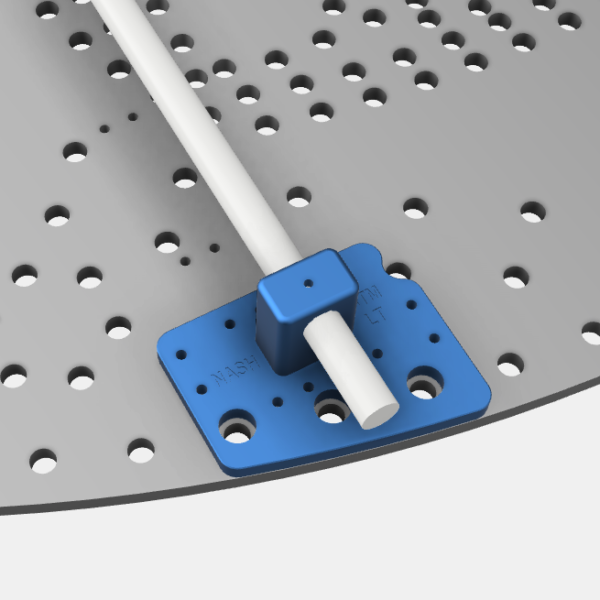

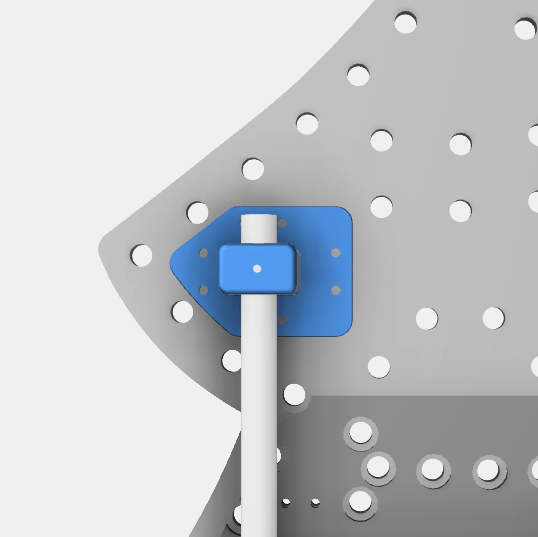

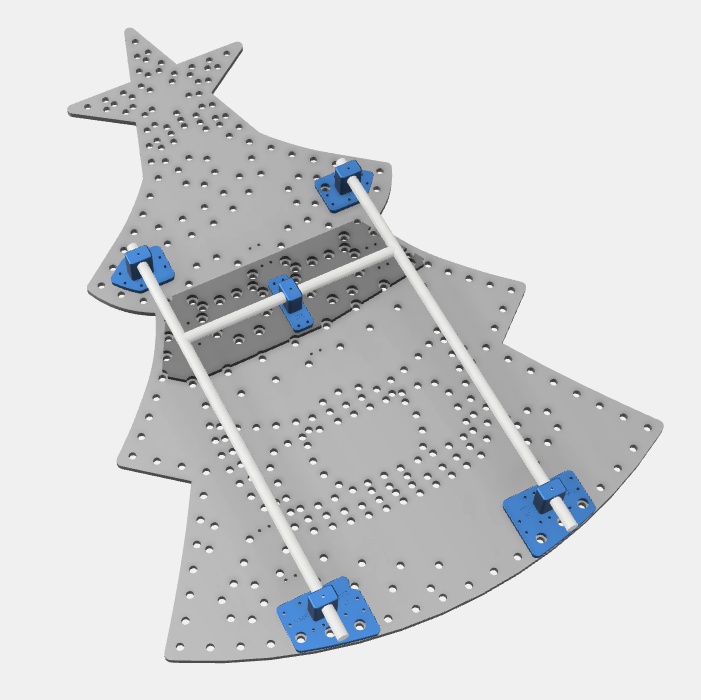

3D Printed mounting system for the Gilbert Engineering Nash Tree. The mounts provide a frame structure behind the coro to increase strength and allow mounting to various surfaces as well as provide rigidity to the prop after it has been slit in half for shipping. The mounts are sized to fit 1/2″ EMT conduit and are designed to be zip tied to the coro. They feature a hole on the top where a screw can be inserted through the mount and into the EMT to secure it in place. In order to construct the center horizontal EMT brace, two 1/2″ PVC T fittings can be inserted along the vertical sections of EMT using the included EMT to PVC bushings that allow the EMT to fit inside of the PVC. For ground installations 1/2″ rebar can be driven into the ground and the EMT can slide over the rebar to hold the prop in place. At a minimum the rebar should go into the ground at least 18″ and extend into the prop 18″. Guy wires or additional EMT structure like the one illustrated may be necessary for those that experience high winds. Please select whether your Nash Tree has the reenforcing backer plates or not. Note that the Nash Tree is an asymmetric prop with a front and back side and thus the mounts only will only fit on the back side of the prop. You can reference these renderings which show the mounts attached to the back side of the prop as well as the model within xLights to determine the correct orientation. Colors may vary, typically they are white or black. If you have a specific color request for white or black please include a note indicating your preference with your order, but keep in mind that it may increase processing time for in-stock items. Includes 3D printed parts only.

SKU: GE-NASH Category: Tag:

3D printing parts is a slow process and we have a whole print farm running 24/7 to fulfill orders and build stock of the more popular items. If you order a product on backorder we will move it directly to the print queue where it will be printed as soon as possible. While normal processing times for most orders with backordered items is less than a week, it can fluctuate from time to time around 1-2 weeks. Very large orders can also experience longer than normal processing times as well. If processing times are expected to be longer than two weeks before shipping, there will be a banner at the top of the website indicating the expected wait times. Additionally very large orders could have longer delays due to the vast number of printer hours required for production of the parts. We will contact you and let you know the expected production time if it were to exceed the estimated timeline for very large orders. See the FAQ page for more info.

All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.

Please follow and like us:
Pin Share
Weight N/A
Backer Plates

Backer Plates Yes, Backer Plates No
