Modular Matrix Mounts STL

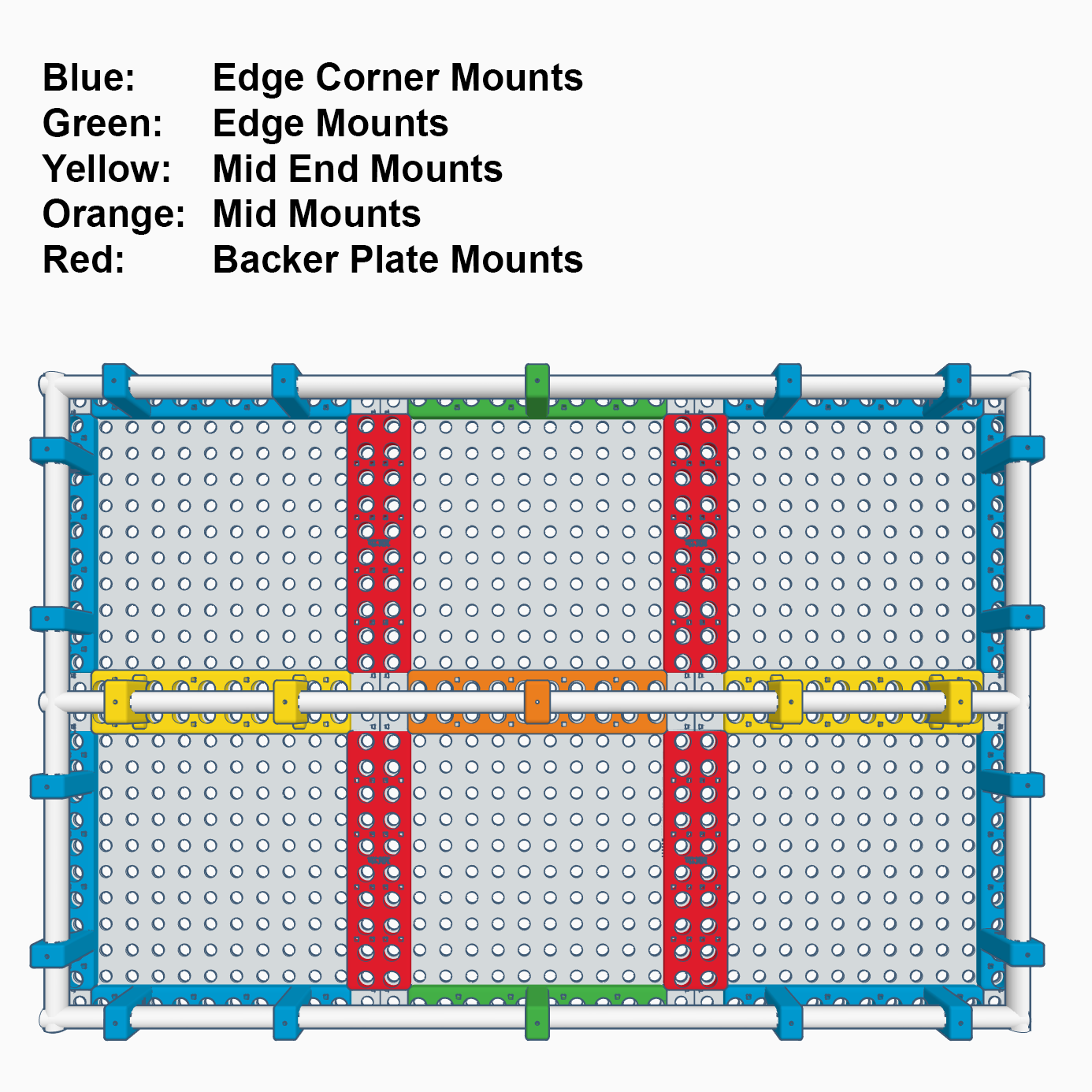

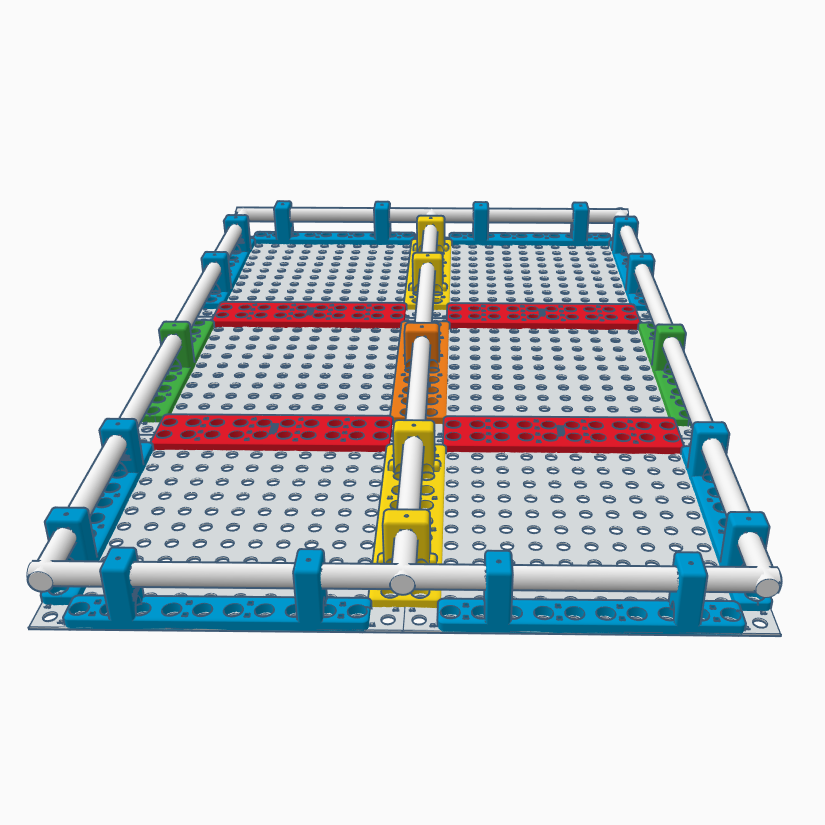

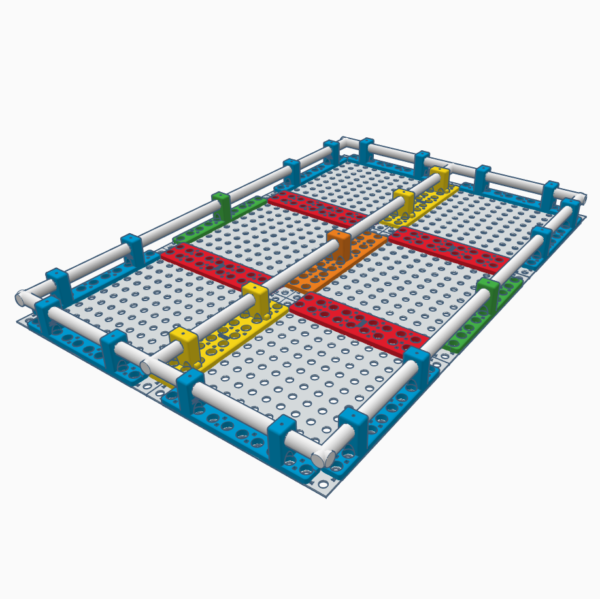

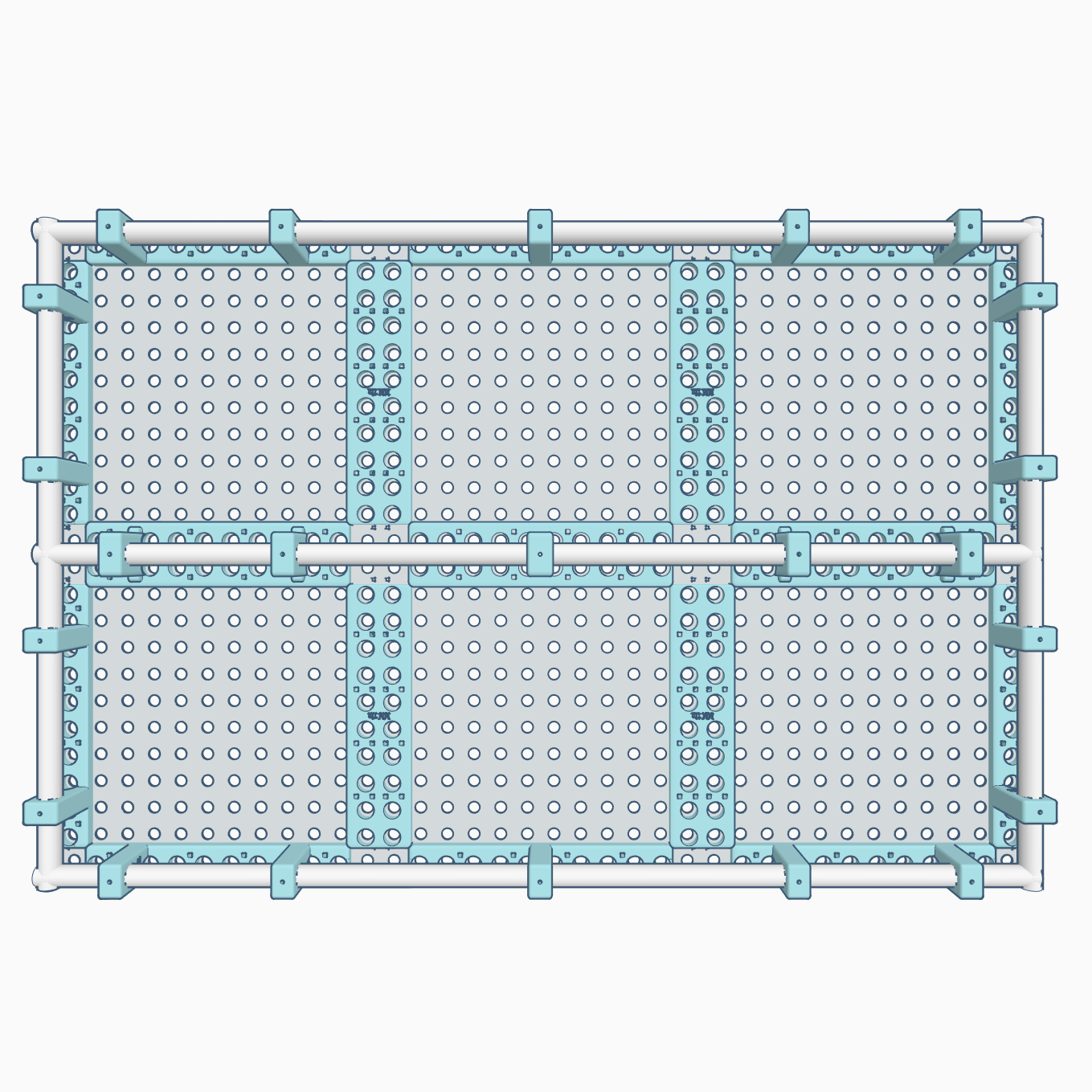

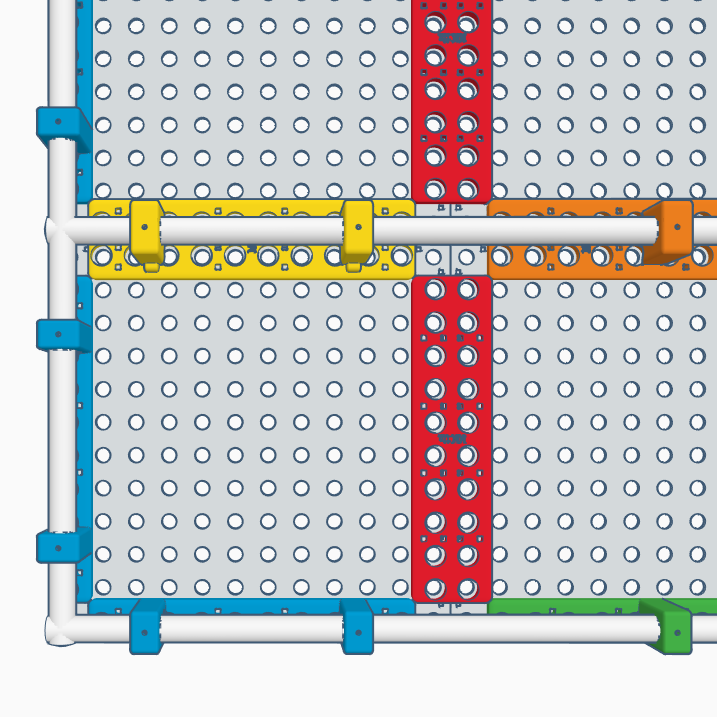

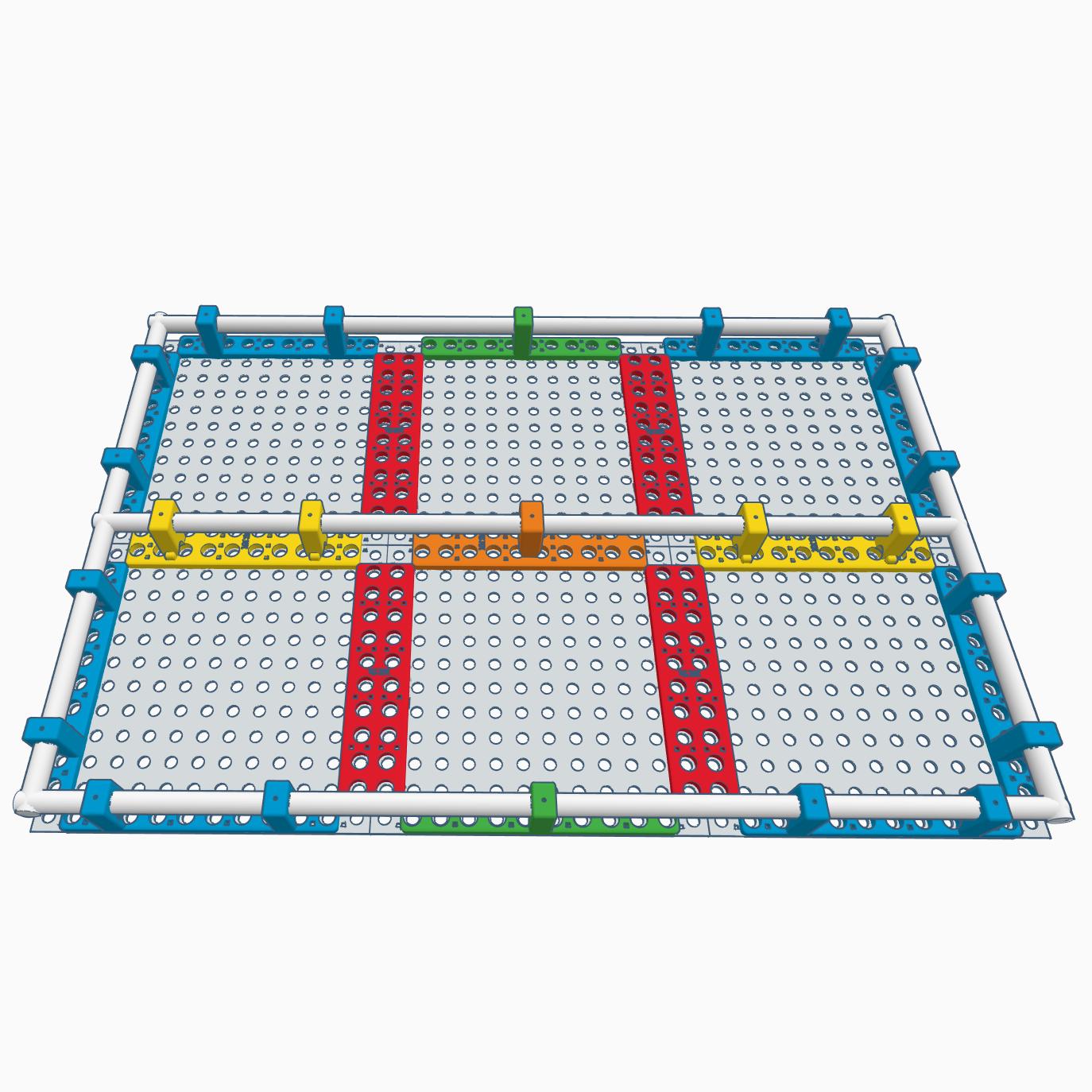

3D Printed mounting system for the Gilbert Engineering Modular Matrix Panels. There are 5 different mount types all sized to fit 1/2″ EMT conduit. At the various junction points where the EMT comes together you can connect the sections of EMT utilizing 1/2″ PVC fittings and EMT to PVC bushings which the STL file is also included with the mounts. See below for a larger image of the various mounts which shows the locations where they are designed to fit.

Note: This is a digital purchase for STL files and not a physical product.


SKU: N/A Category: Tag:


Please follow and like us:
Pin Share
Matrix Spacing

1 Inch, 2 Inch
