Singing Tree Mounts

$34.95 – $46.95

3D Printed mounting system for the Gilbert Engineering Singing Trees. The mounts provide a frame structure behind the coro to increase strength and allow mounting to various surfaces as well as provide rigidity to the prop after it has been slit in half for shipping. The mounts are sized to fit 1/2″ EMT conduit and are designed to be zip tied to the coro.

In order to construct the center horizontal EMT brace, two 1/2″ PVC T fittings can be inserted along the vertical sections of EMT using the included EMT to PVC bushings that allow the EMT to fit inside of the PVC. For ground installations 1/2″ rebar can be driven into the ground and the EMT can slide over the rebar to hold the prop in place. At a minimum the rebar should go into the ground at least 18″ and extend into the prop 18″. Guy wires or additional EMT structure like the one illustrated is highly recommended for those that experience winds. Please select the size of your tree and for the 46″ version whether it has the reenforcing backer plates or not. Colors may vary, typically they are white or black. If you have a specific color request for white or black please include a note indicating your preference with your order, but keep in mind that it may increase processing time for in-stock items. Includes 3D printed parts only.

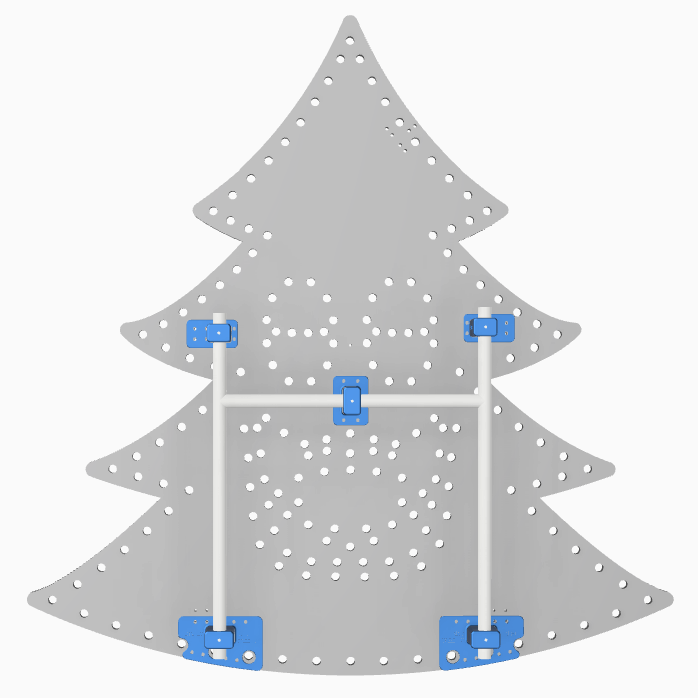

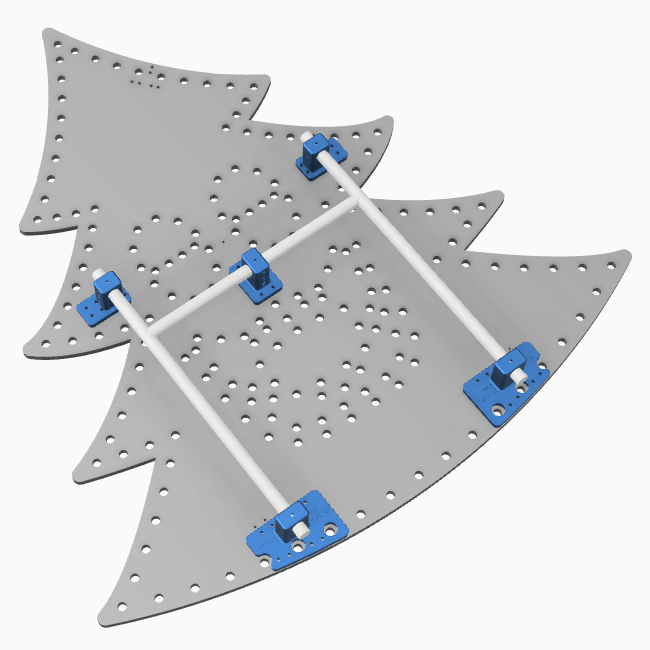

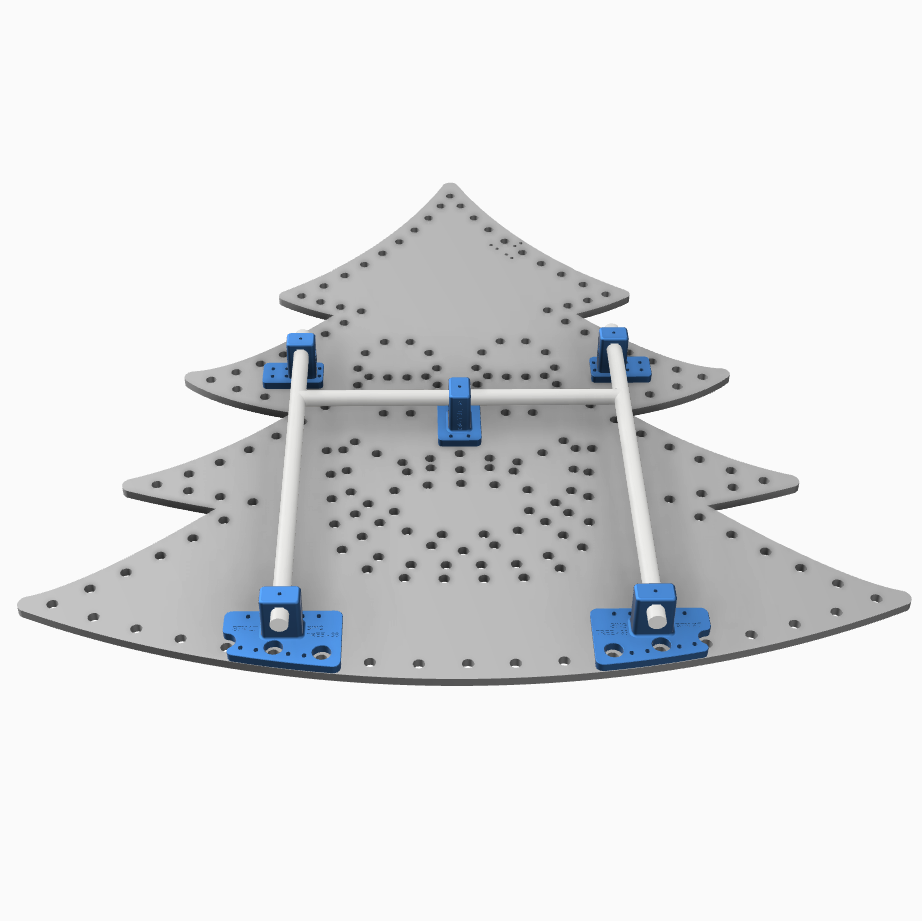

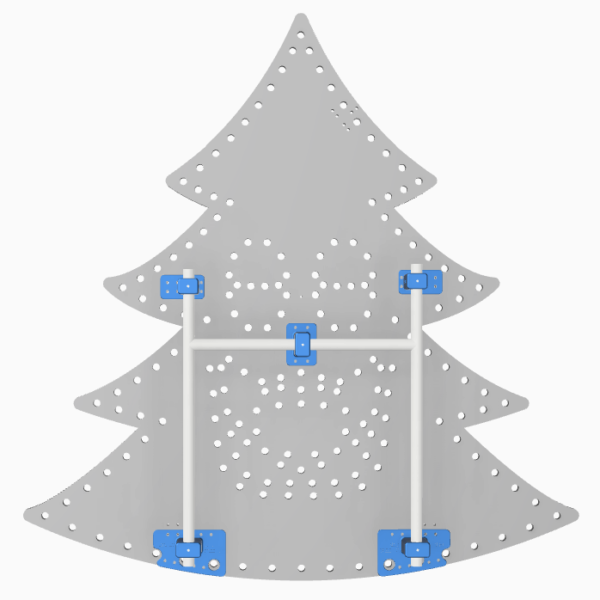

The pictures depict the 36″ version, but when you make your selection a photo showing the mount layout for that version will be displayed.

SKU: GE-SING-TREE Category: Tag:

As with all our designs, we strive to utilize the precut zip tie hole locations for our mounts. However, these pre-made holes don’t always align perfectly for optimal mount placement, which means you may need to create additional holes in the coro to secure the mounts with zip ties.

General instructions for attaching mounts to coro props, including zip tie hole alignment, can be found by clicking this link.

3D printing parts is a slow process and we have a whole print farm running 24/7 to fulfill orders and build stock of the more popular items. If you order a product that shows “made to order” we will move it directly to the print queue where it will be printed as soon as possible. While normal processing times for most orders with made to order items is less than a week, it can fluctuate. Very large orders can also experience longer than normal processing times as well because of the high number of hours it takes to produce lots of parts. If processing times are expected to be longer than two weeks before shipping, there will be a banner at the top of the website indicating the expected wait times. See the FAQ page for more info.

All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.

Please follow and like us:
fb-share-icon
Tweet
Pin Share
Weight N/A
Tree Size

30 inch, 36 inch, 46 inch
Backer Plates

Backer Plates Yes, Backer Plates No
