Star 46-460 Mount 20mm STL

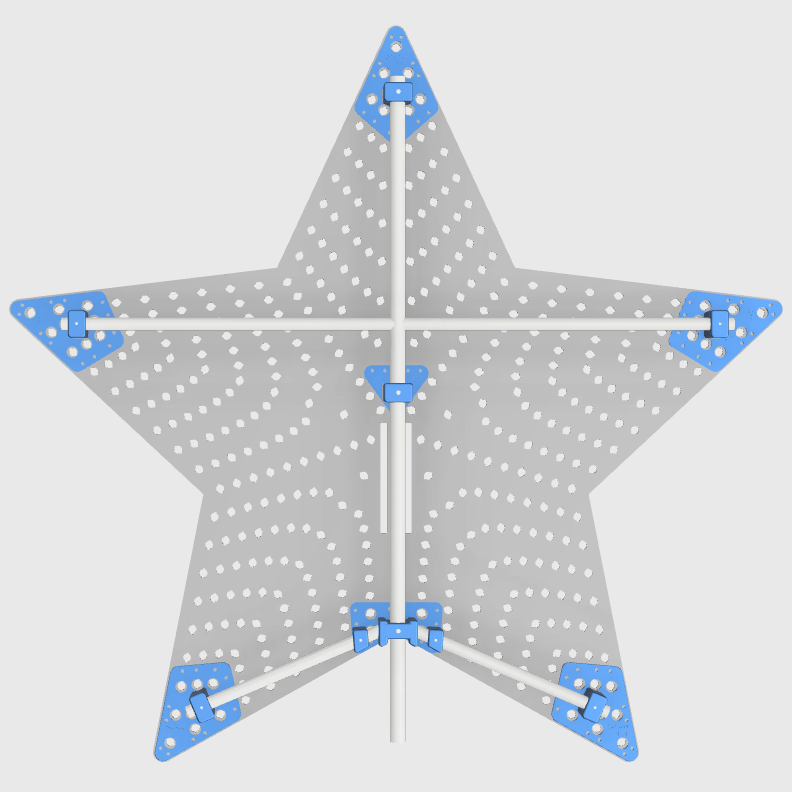

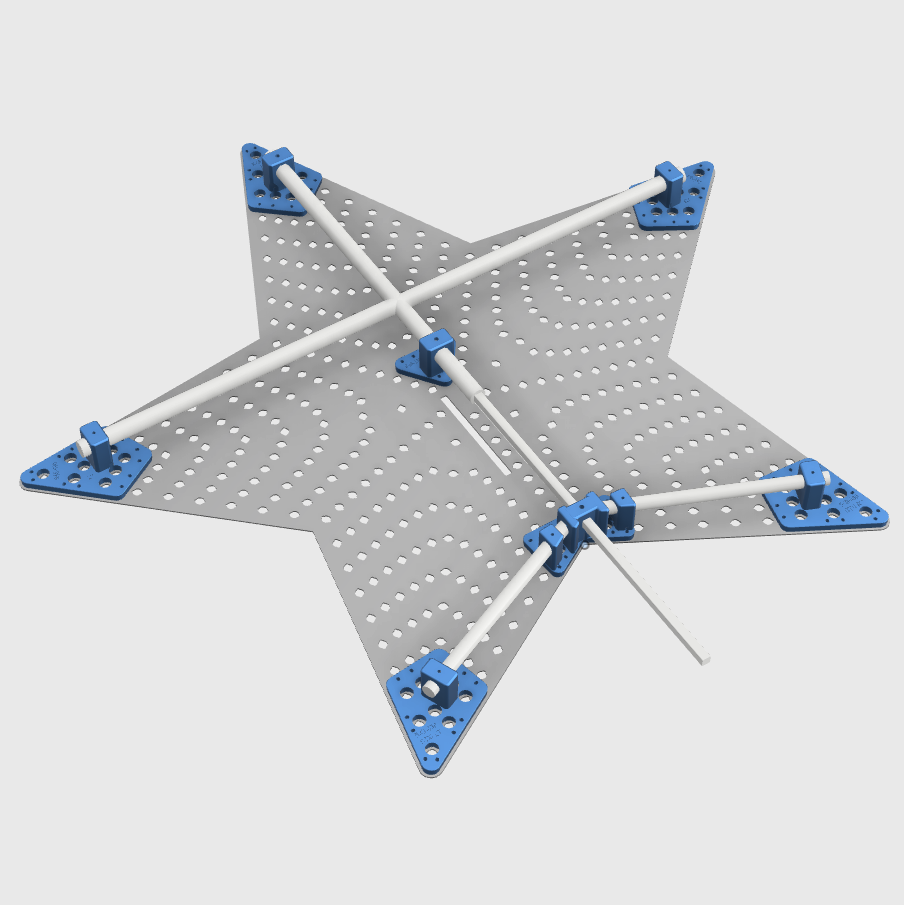

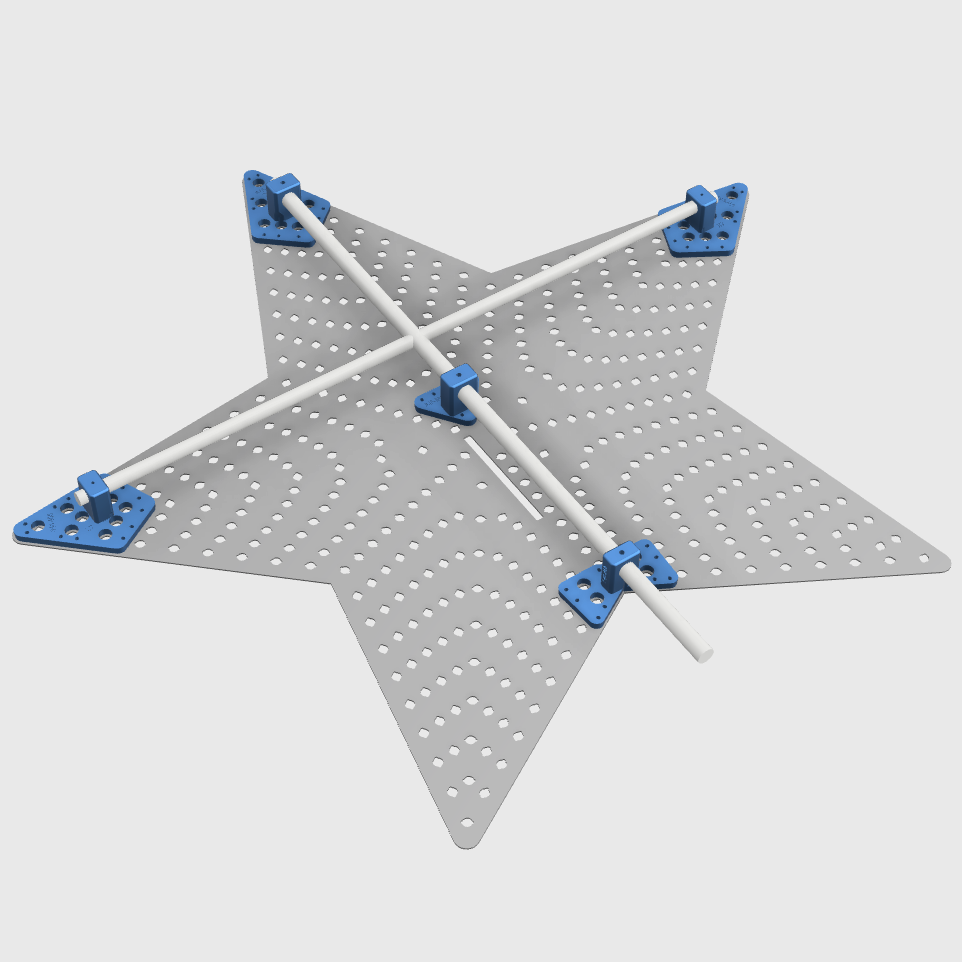

3D Printed mounting system for the Gilbert Engineering Star 46-460. These mounts have been completely redesigned to eliminate the need to use the stock coro clamps to attach the vertical pipe to the star. The mounts are available as either a standard mount or a mega mount which adds additional support structure to the lower points of the star. All mounts are sized to fit 20mm conduit with the top, mid and bottom mounts making the primary connection to the topper. On those mounts a 60mm long M6 machine screw or bolt is inserted on the top of the mount and attaches to a M6 nut that you insert into the underside of the mount. This creates an incredibly strong post that will support the primary loads of the topper. The center junction is make using a 25mm PVC cross that allows the smaller 20mm conduit to pass through using the included bushings file.

For those in the UK, the links below are where you can get the conduit and PVC fittings.

Link to Conduit

Link to PVC Cross

Note: This is a digital purchase for STL files and not a physical product.

SKU: N/A Category: Tag:
Mount Style

Standard Mount, Mega Mount
