Spiral X NSR Tree Mount

Price range: $30.95 through $52.95

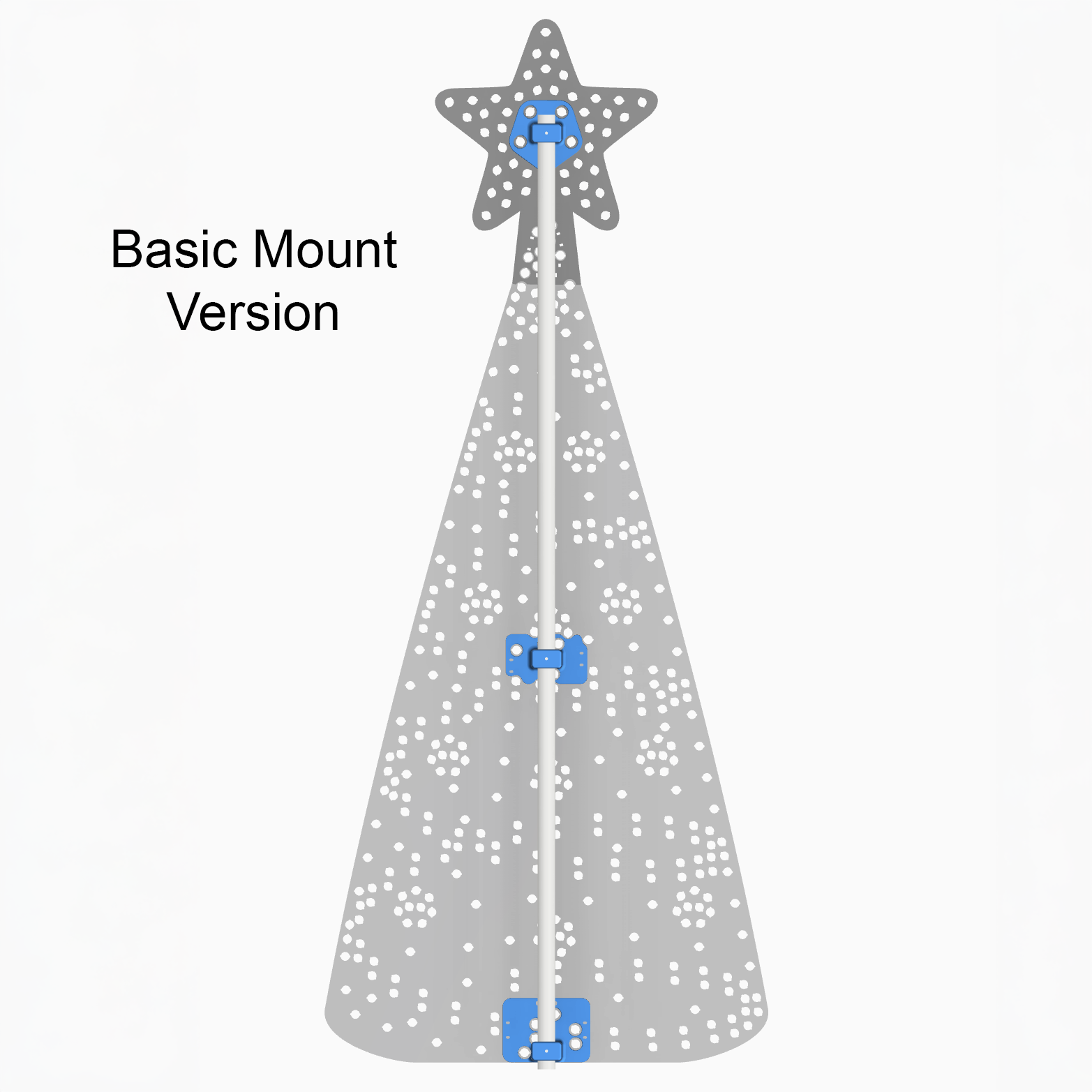

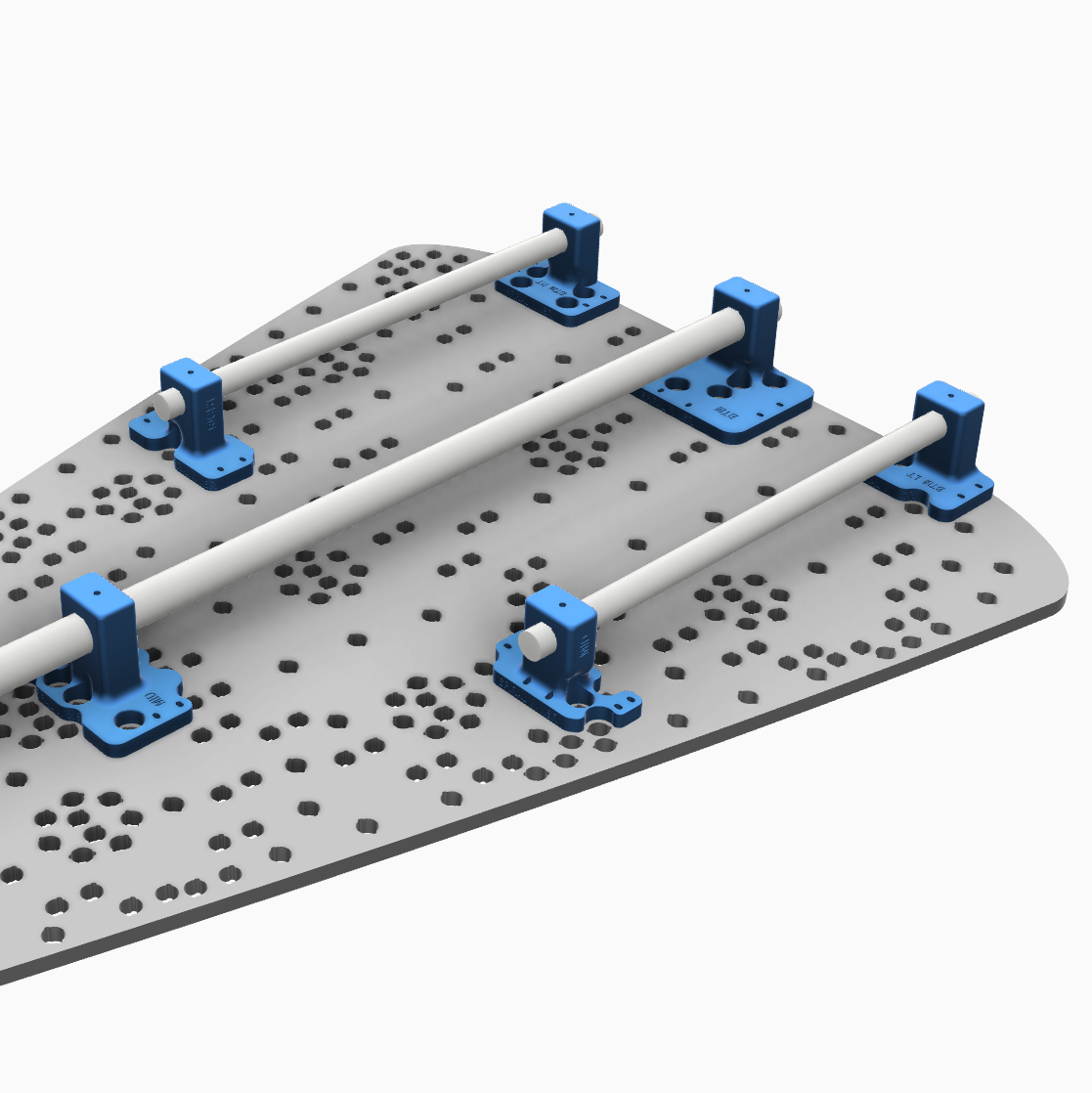

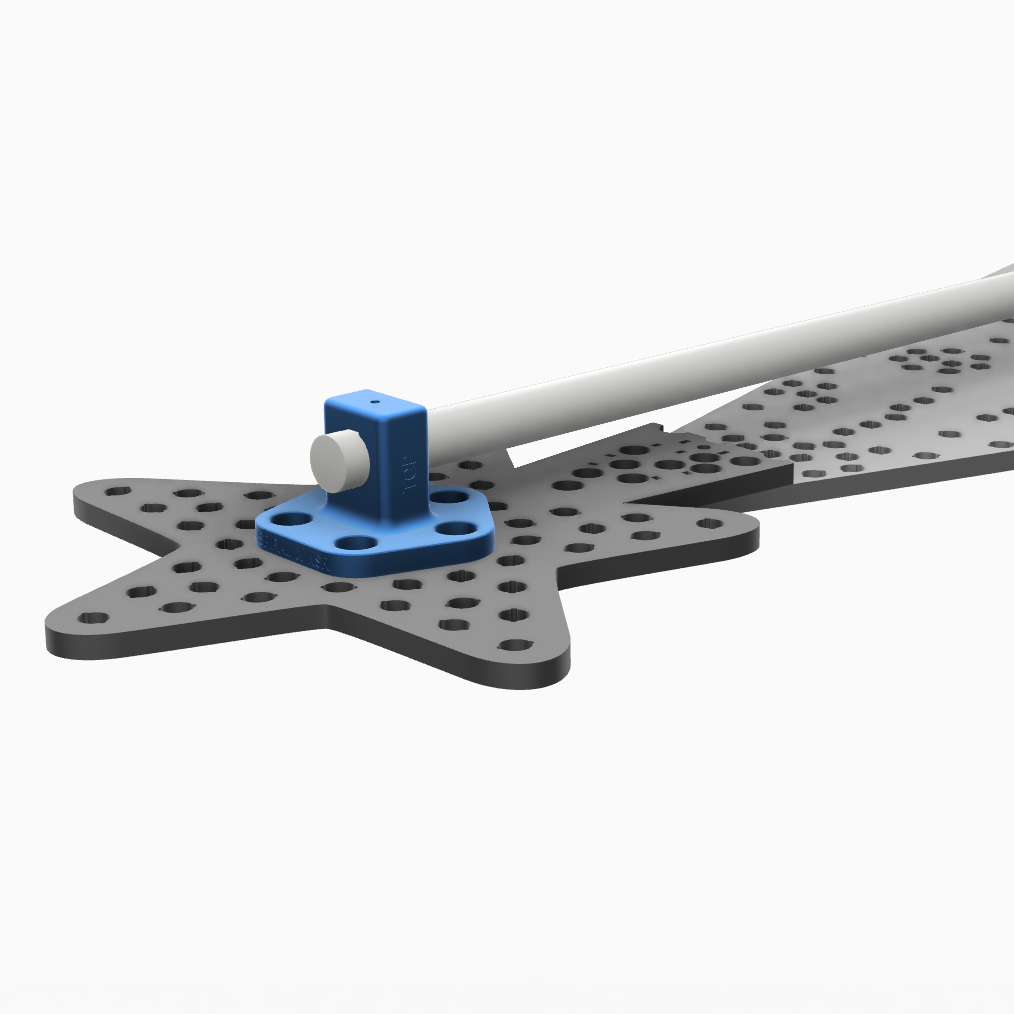

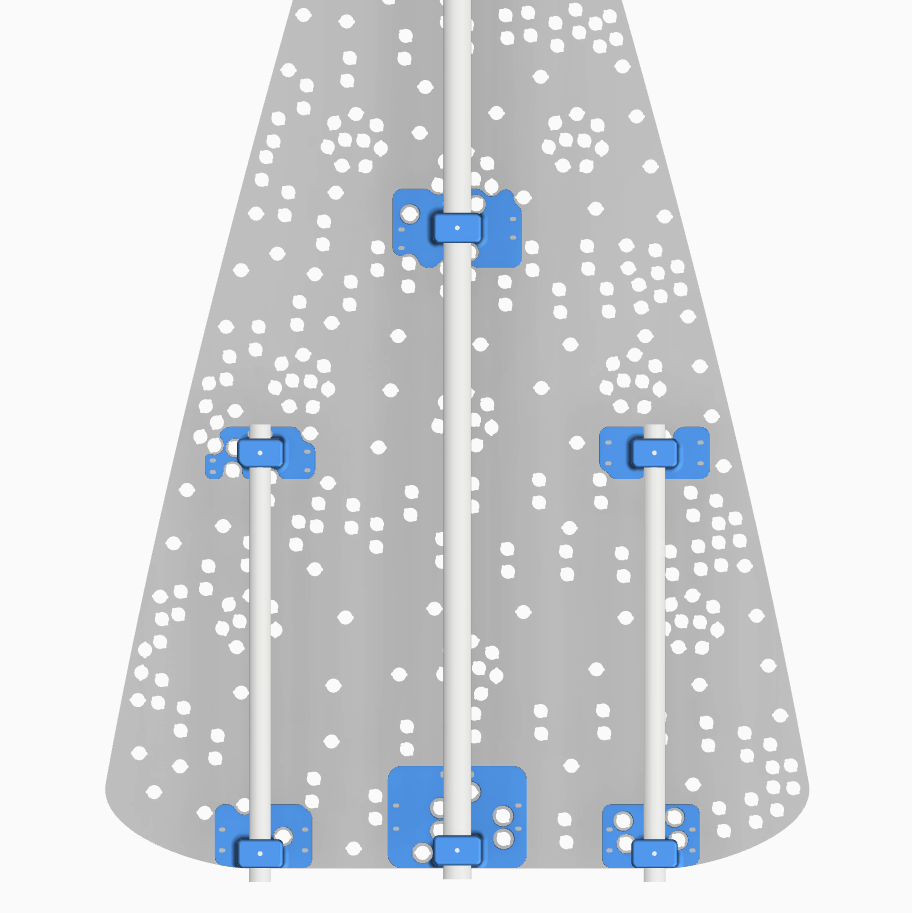

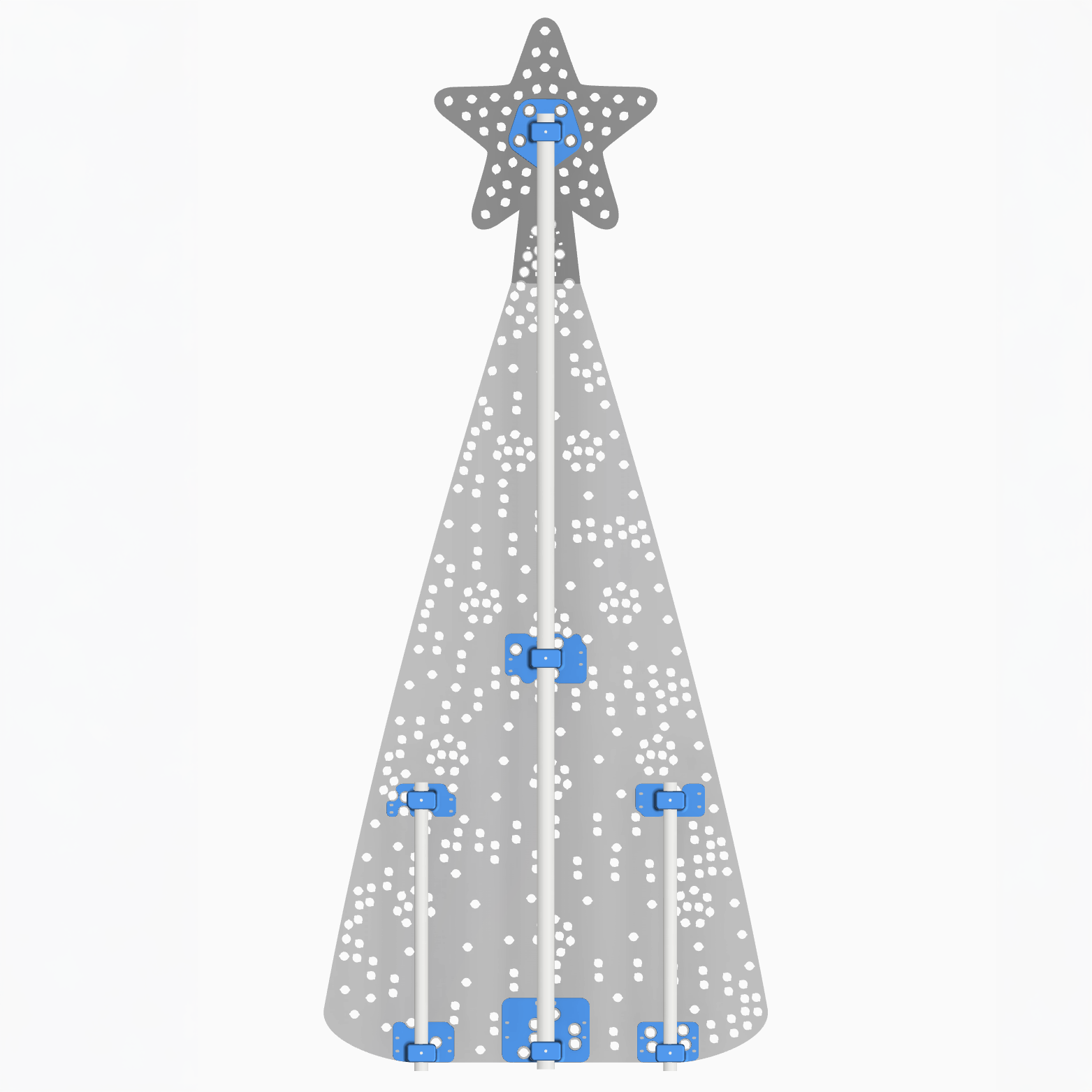

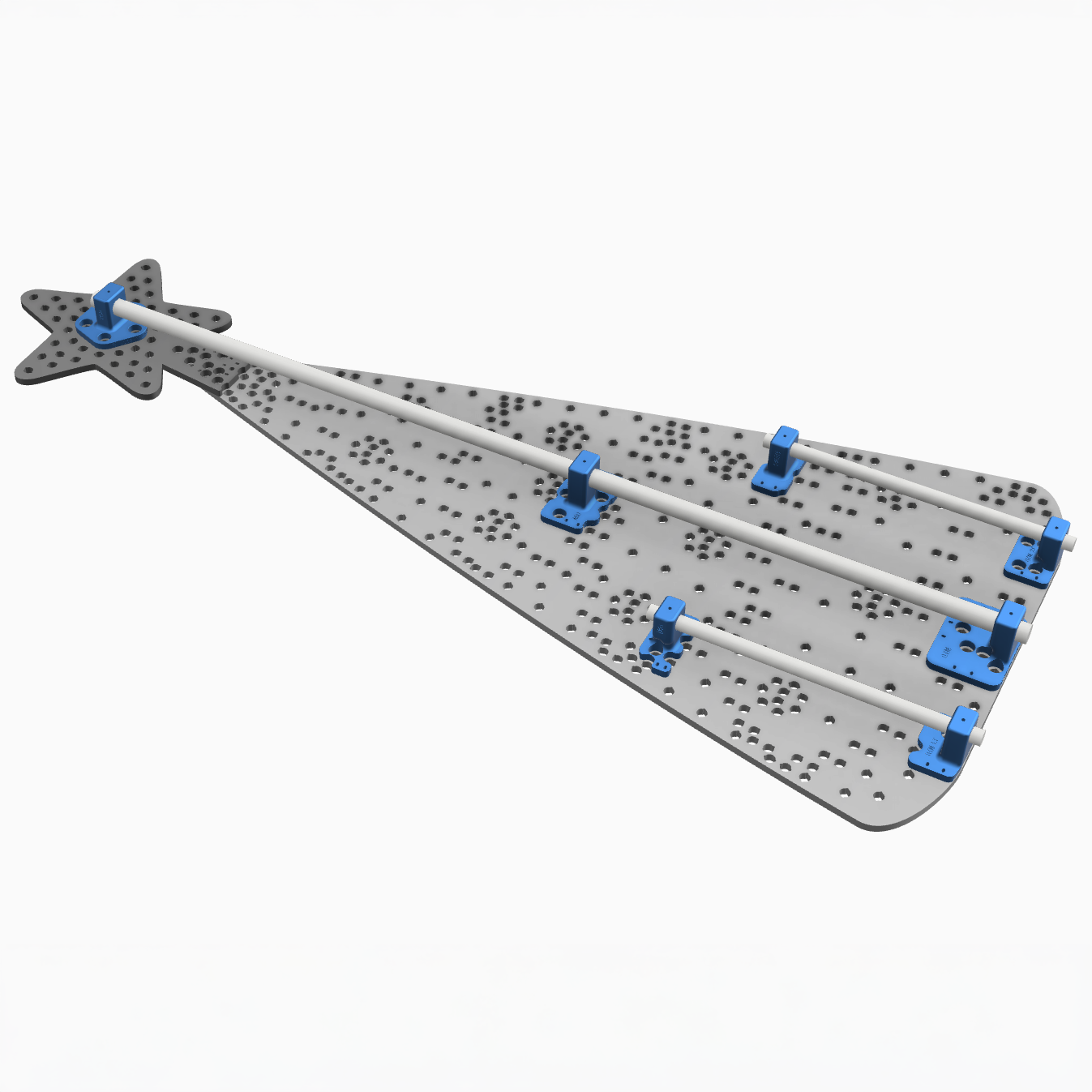

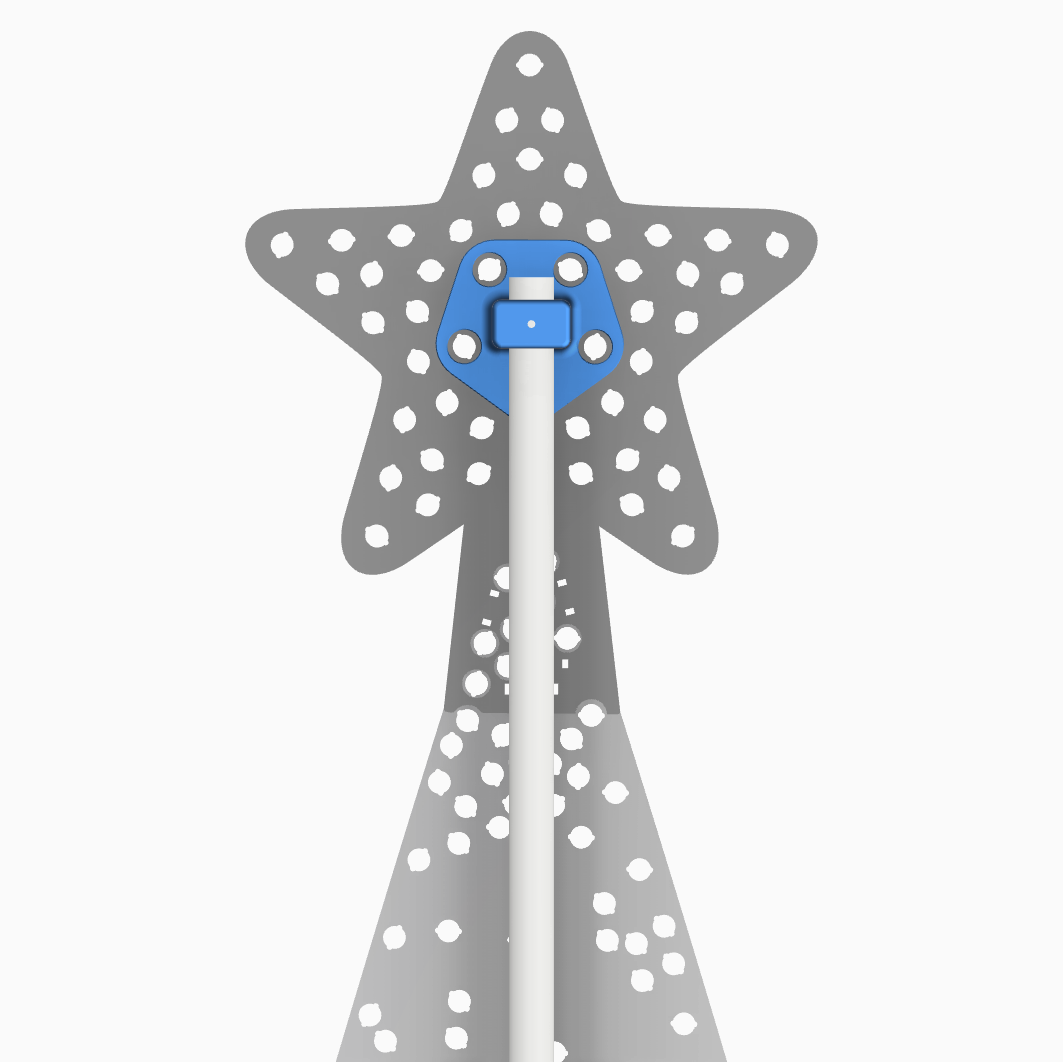

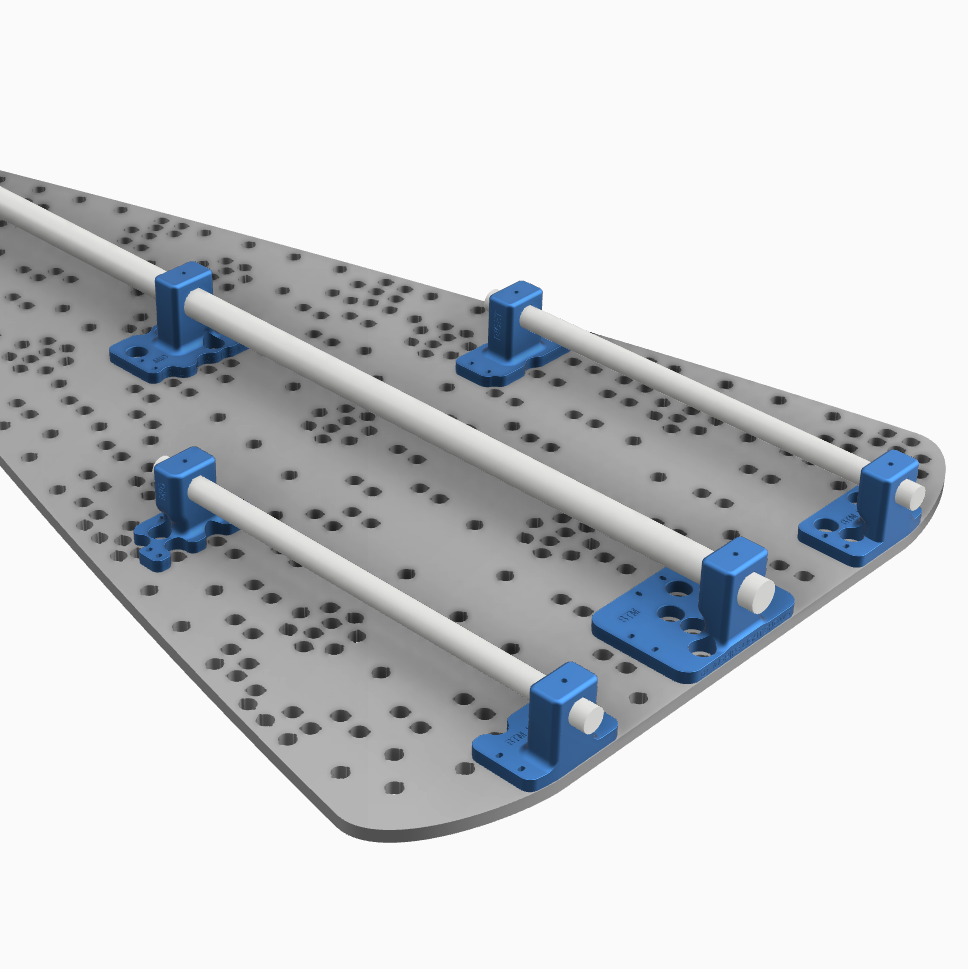

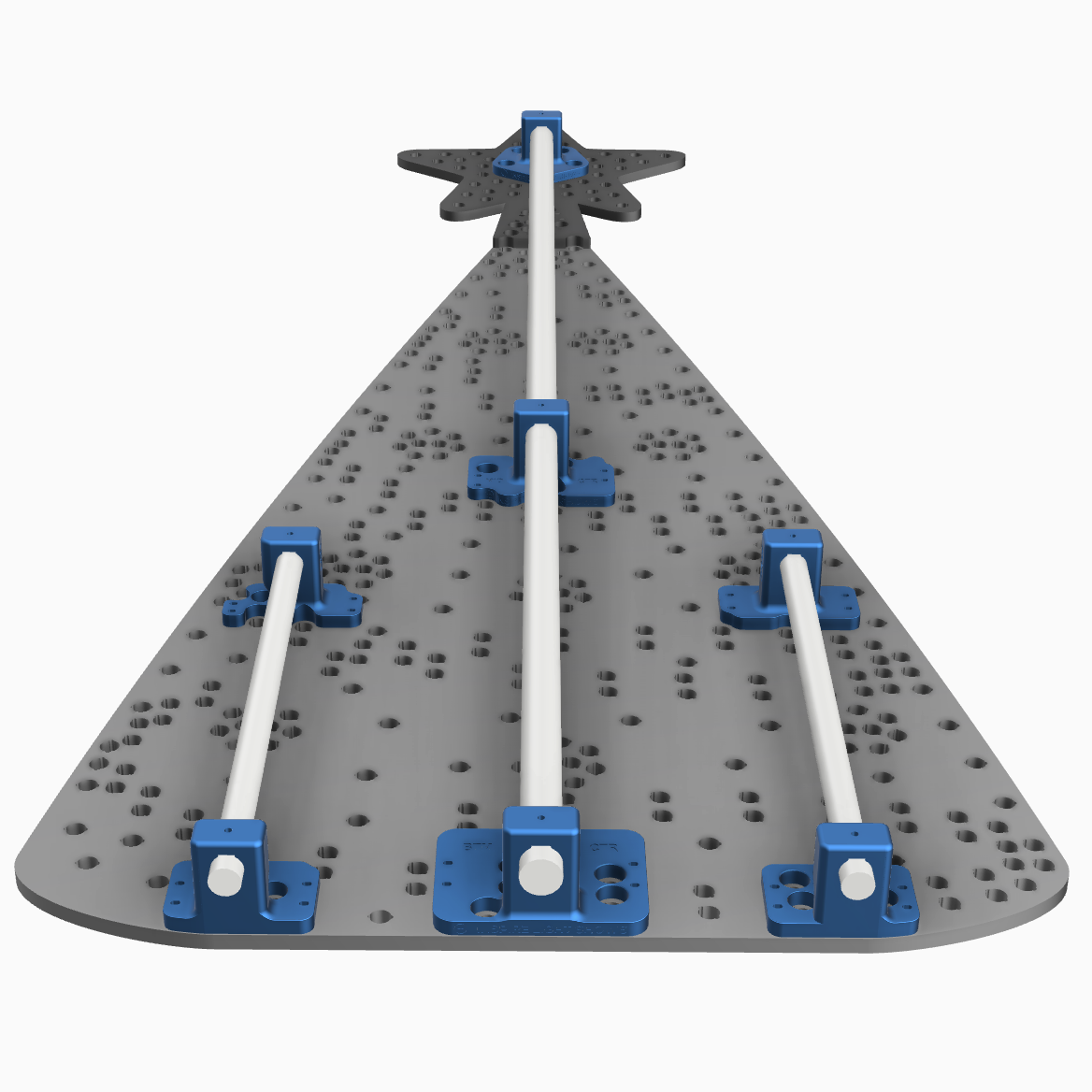

This 3D printed mounting system is designed specifically for the EFL Spiral X NSR Tree. The mounts are secured to the coro with zip ties and provide a rigid frame structure that increases the strength of the tree while allowing it to be mounted to various surfaces. Two mounting styles are available: Basic and Mega. The Basic version consists of three mounts along the centerline of the tree that support a single piece of 3/4″ EMT conduit. The Mega version adds outrigger mounts designed primarily to help stabilize the tree during ground installations. The outrigger mounts are sized for 1/2″ EMT conduit, allowing 1/2″ rebar to be driven into the ground and inserted inside the conduit, while the center mounts retain their 3/4″ EMT sizing. Because the tree is 47″ tall, these mounts are not intended to be the sole support system. The tree should either be attached to a solid structure such as a fence post or porch column, supported with a separate EMT framework using Maker Pipe fittings, or stabilized using guy wires attached directly to the EMT. A Maker Pipe support framework can be fabricated using additional EMT and fittings to create angled supports extending from the tree, forming a rigid triangular structure. Please select the mounting style you would like when ordering. Colors may vary, although black is most common. If you have a specific color request for black or white please include a note indicating your preference with your order, but keep in mind that it may increase processing time for in-stock items. Includes the 3D printed parts only; conduit, rebar, screws, zip ties, and Maker Pipe fittings are not included.



SKU: EFL-SPRLX Category: Tag:

Please note this prop is asymmetric and there is a defined front side and a back side. The renderings show the mounts attached to the back side of the prop which matches the xLights wiring diagram from EFL.

This mount utilizes a handful of zip tie tunnels in addition to traditional zip tie slots at some locations. These mounts have an opening on the bottom with an internal hollow tunnel that allows the zip tie to pass completely through the mount from one side to the other. When a zip tie tunnel is present, the zip tie must be inserted from the front of the prop rather than the back. This design keeps the zip tie concealed within the mount while providing a secure connection to the coro when space is limited. See the video below for a demonstration of how to install zip ties through these mounts.

As with all our designs, we strive to utilize the precut zip tie hole locations for our mounts when possible. On the Spiral X NSR Tree we utilize the stock zip tie hole locations on the center mounts, but additional zip tie holes will still need to be made when using the mounts on this prop.

General instructions for attaching mounts to coro props, including zip tie hole alignment, can be found by clicking this link.

Our goal is to get your order shipped as quickly as possible. Most orders, including made to order items, ship within 3 to 5 business days, and many ship even sooner. If we anticipate processing times exceeding this, the most up-to-date estimated processing times will be displayed in a banner at the top of the website.

All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.
