$15.00

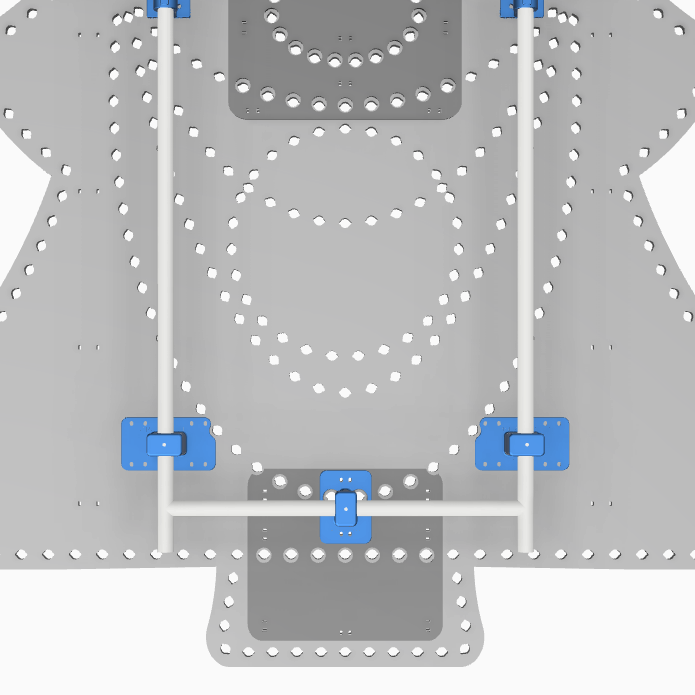

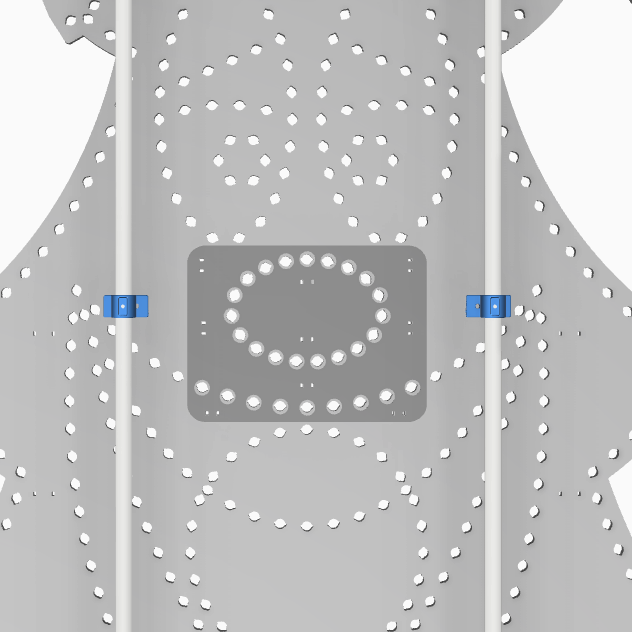

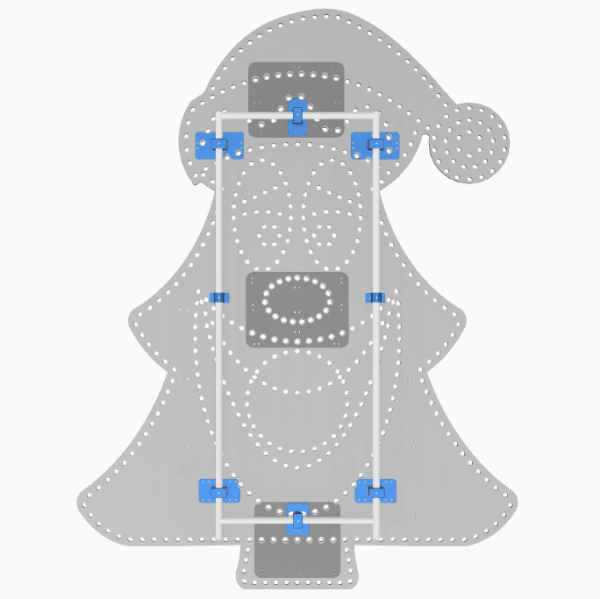

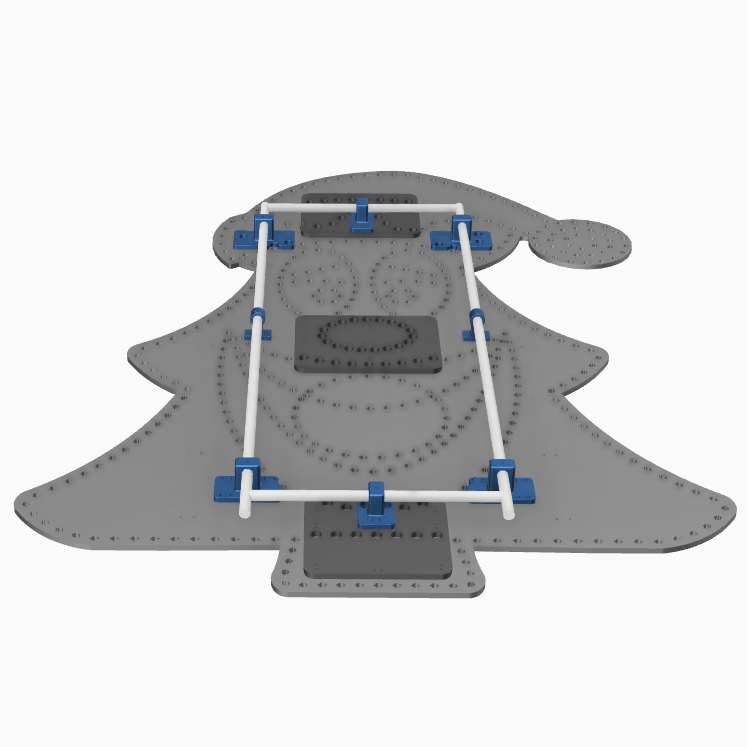

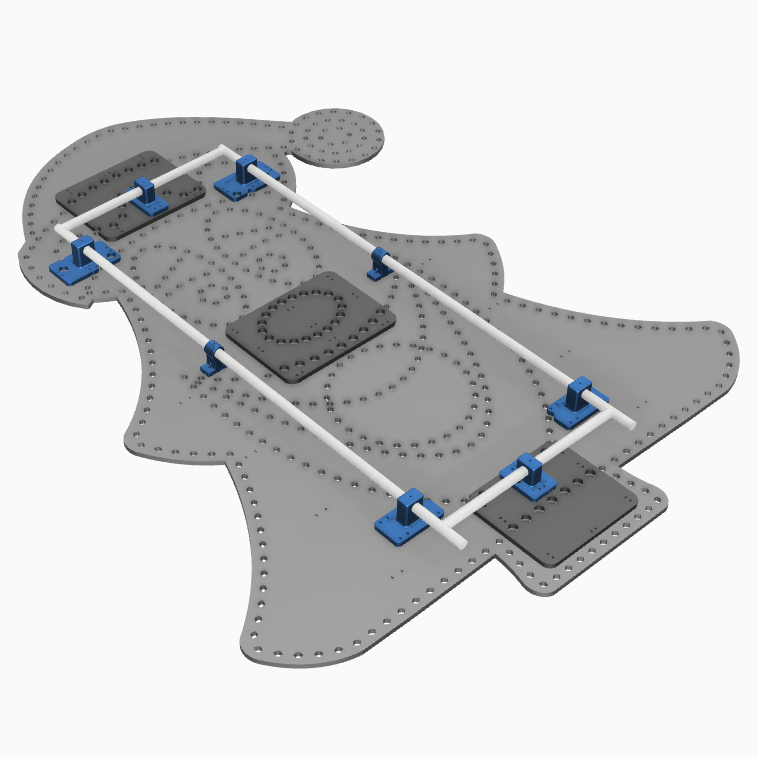

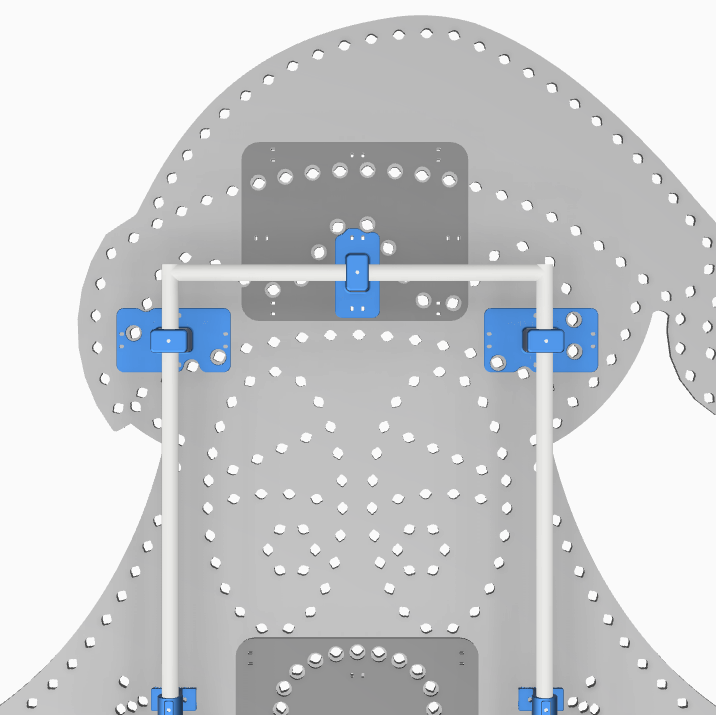

3D Printed mounting system for the Gilbert Engineering Singing Tree with Santa Hat, 61″ tall x 46″ wide. The mounts provide a frame structure behind the coro to increase strength and allow mounting to various surfaces as well as provide rigidity to the prop after it has been slit in half for shipping. The mounts are sized to fit 1/2″ EMT conduit and are designed to be zip tied to the coro. The junction points between the vertical and horizontal sections of conduit are made using 1/2″ PVC fittings along with our bushings which allow the smaller EMT to fit within the PVC fitting. The upper junction points are made with 2x 90 degree PVC elbows and the lower junction points are made with 2x PVC tee fittings.
For ground installations 1/2″ rebar can be driven into the ground and the EMT can slide over the rebar to hold the prop in place. At a minimum the rebar should go into the ground at least 24″ and extend into the prop 24″. Guy wires or additional EMT structure like the one illustrated is highly recommended for those that experience winds. The STL download contains files for versions both with and without the reinforcing coro backer plates. More information below.
Note: This is a digital purchase for STL files and not a physical product.
As with all our designs, we strive to utilize the precut zip tie hole locations for our mounts. However, these pre-made holes don’t always align perfectly for optimal mount placement, which means you may need to create additional holes in the coro to secure the mounts with zip ties. For this particular prop, only the center mounts will be able to use the existing precut holes.
| Tree Size | 30 inch, 36 inch, 46 inch |
|---|
