QuinLED Dig Quad to Meanwell LRS 350 Mount STL

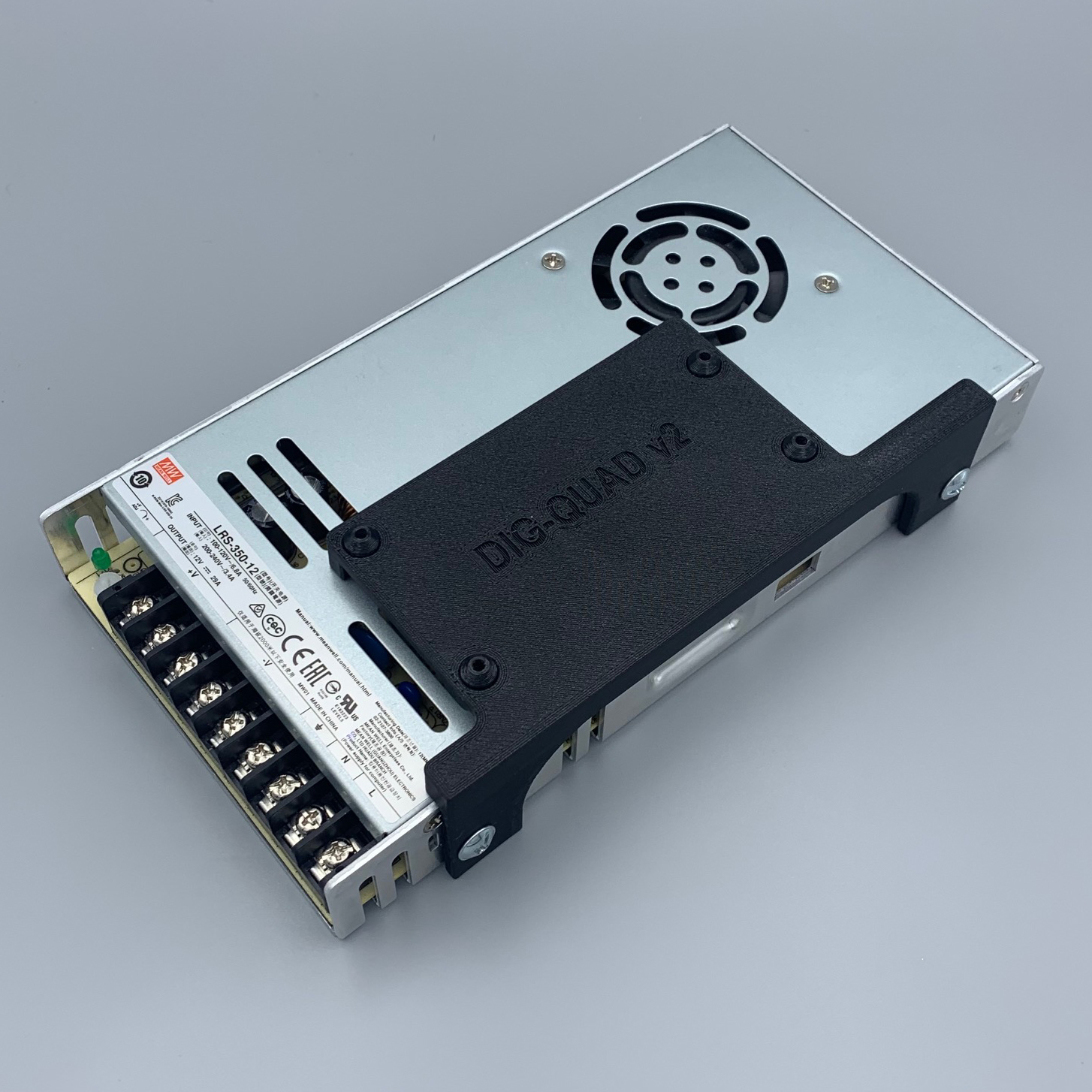

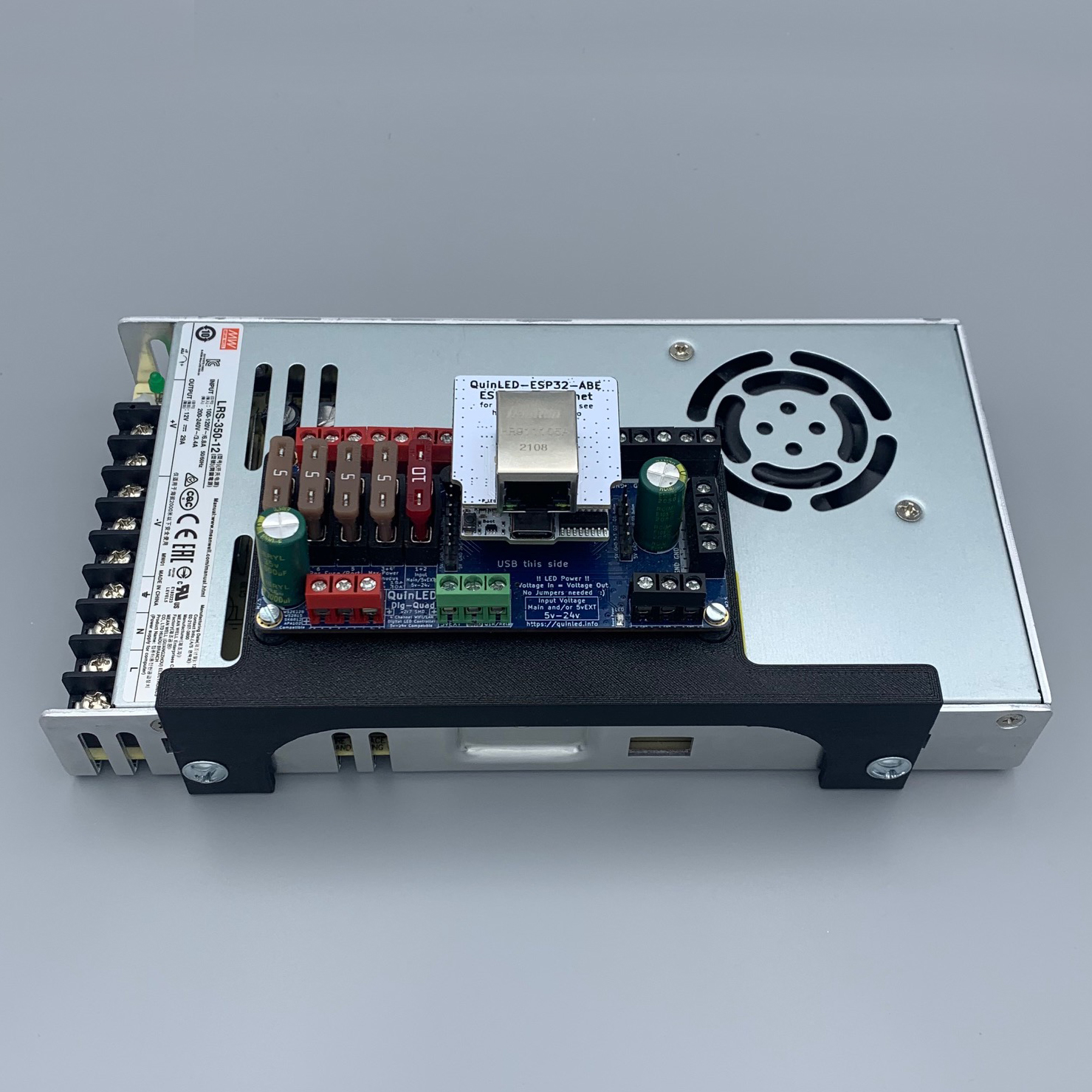

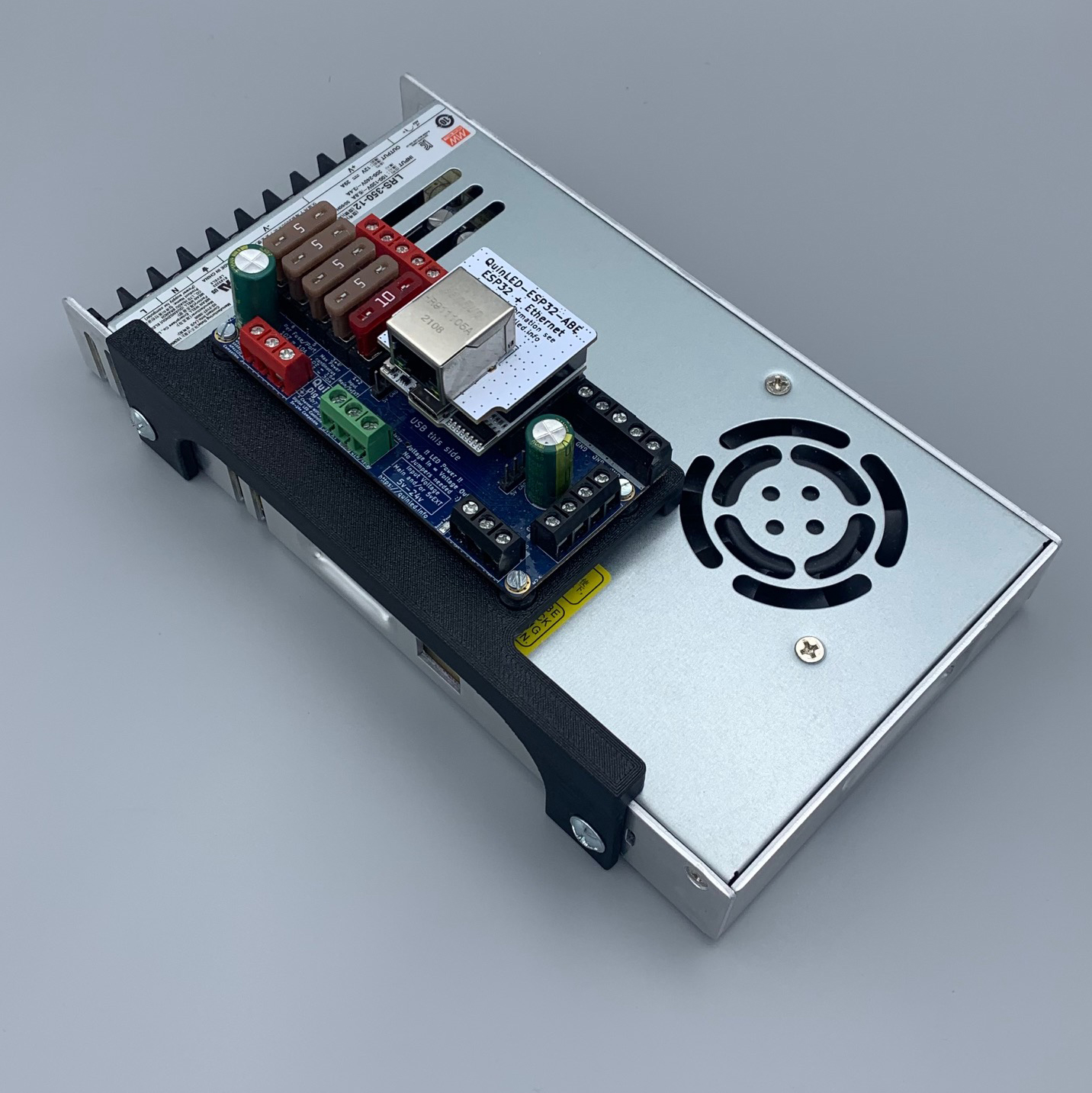

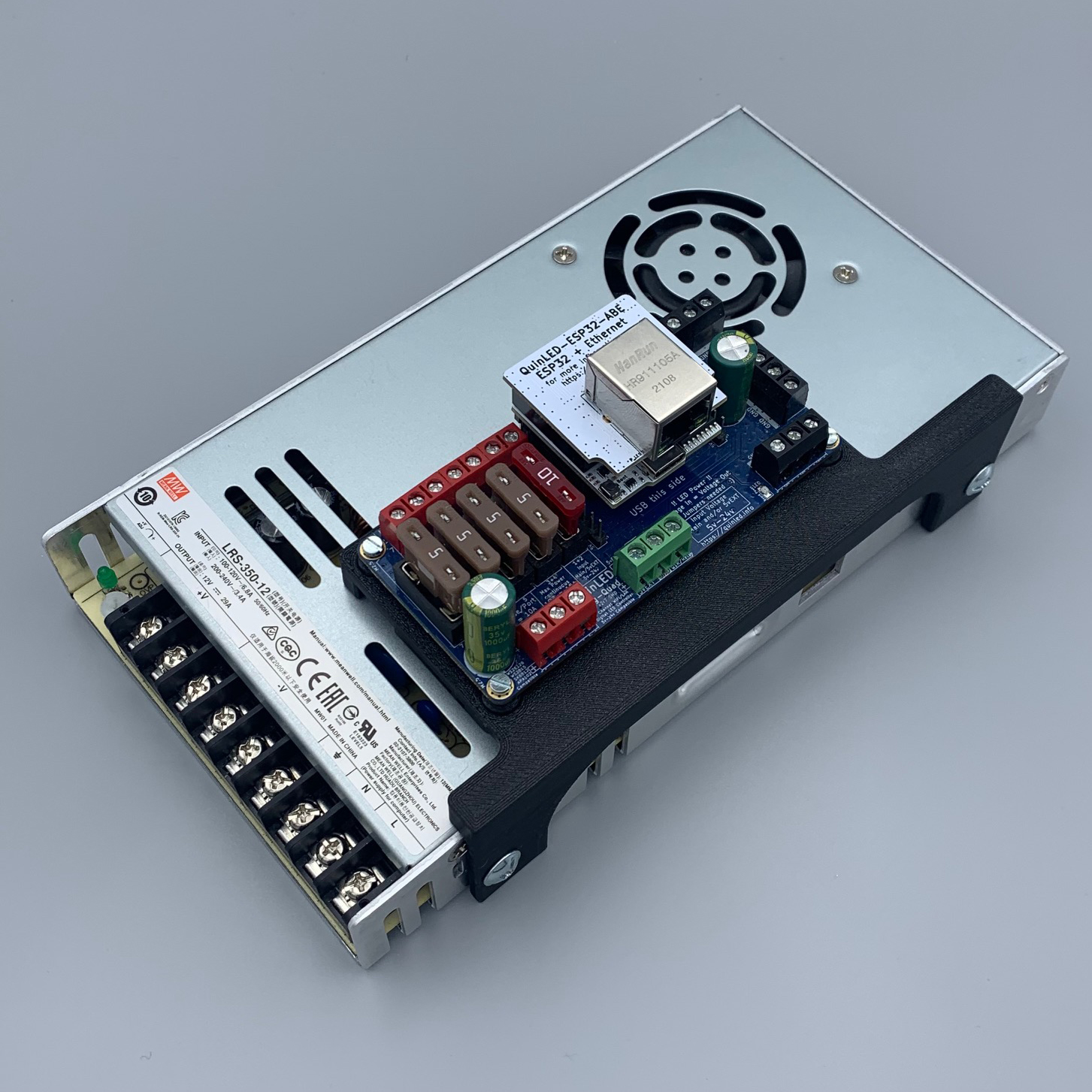

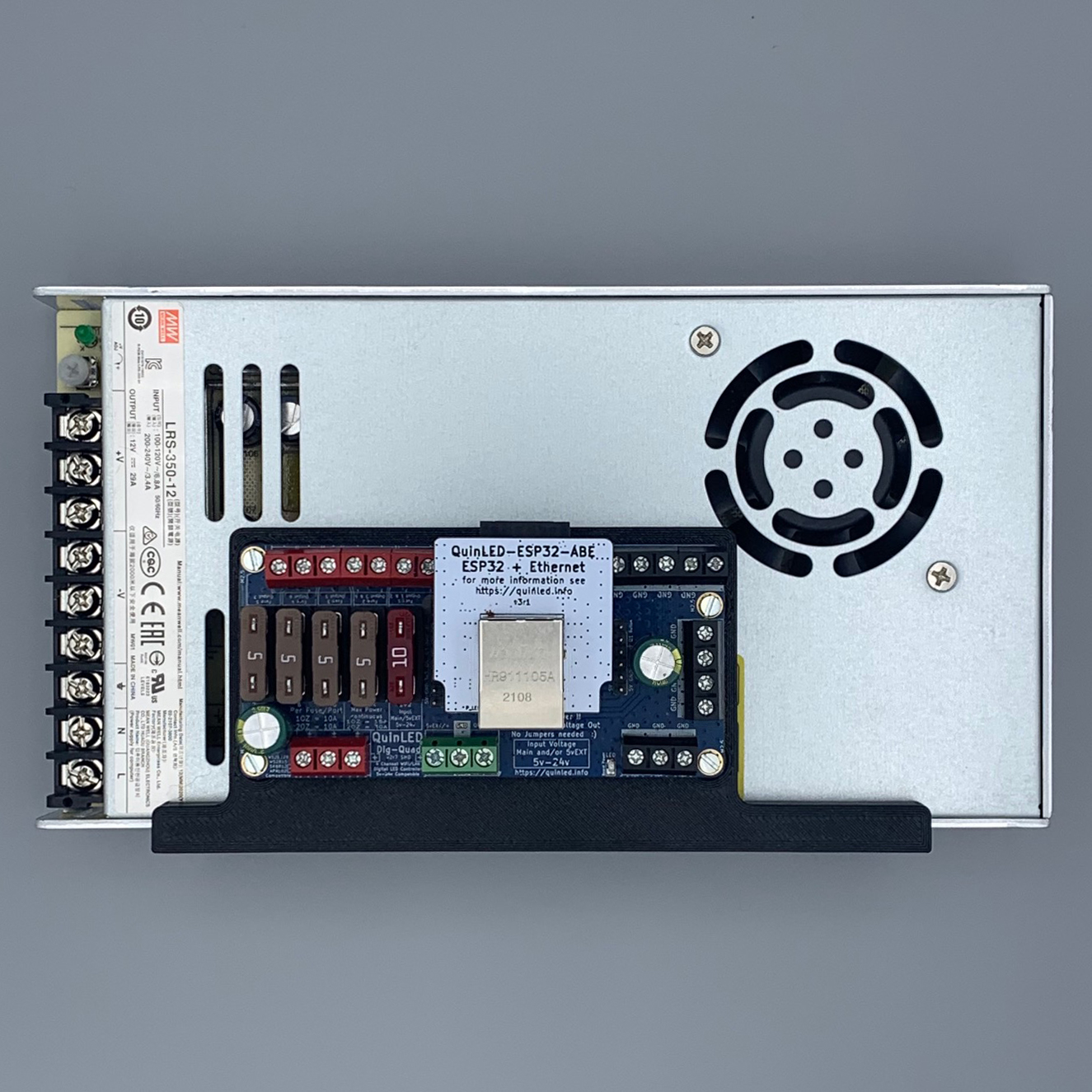

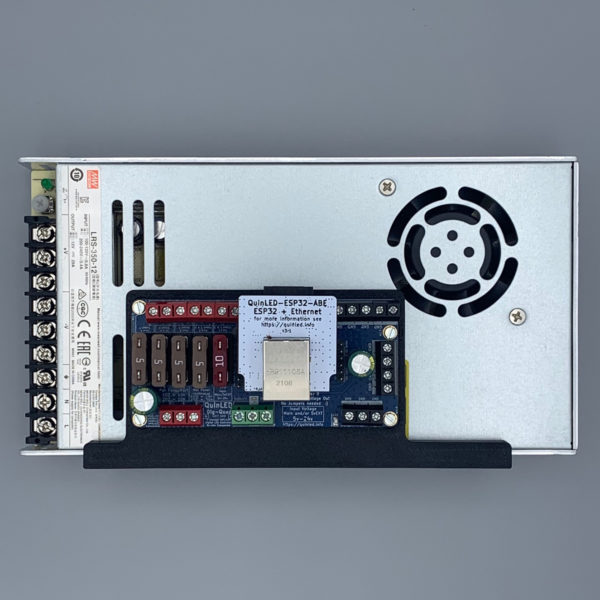

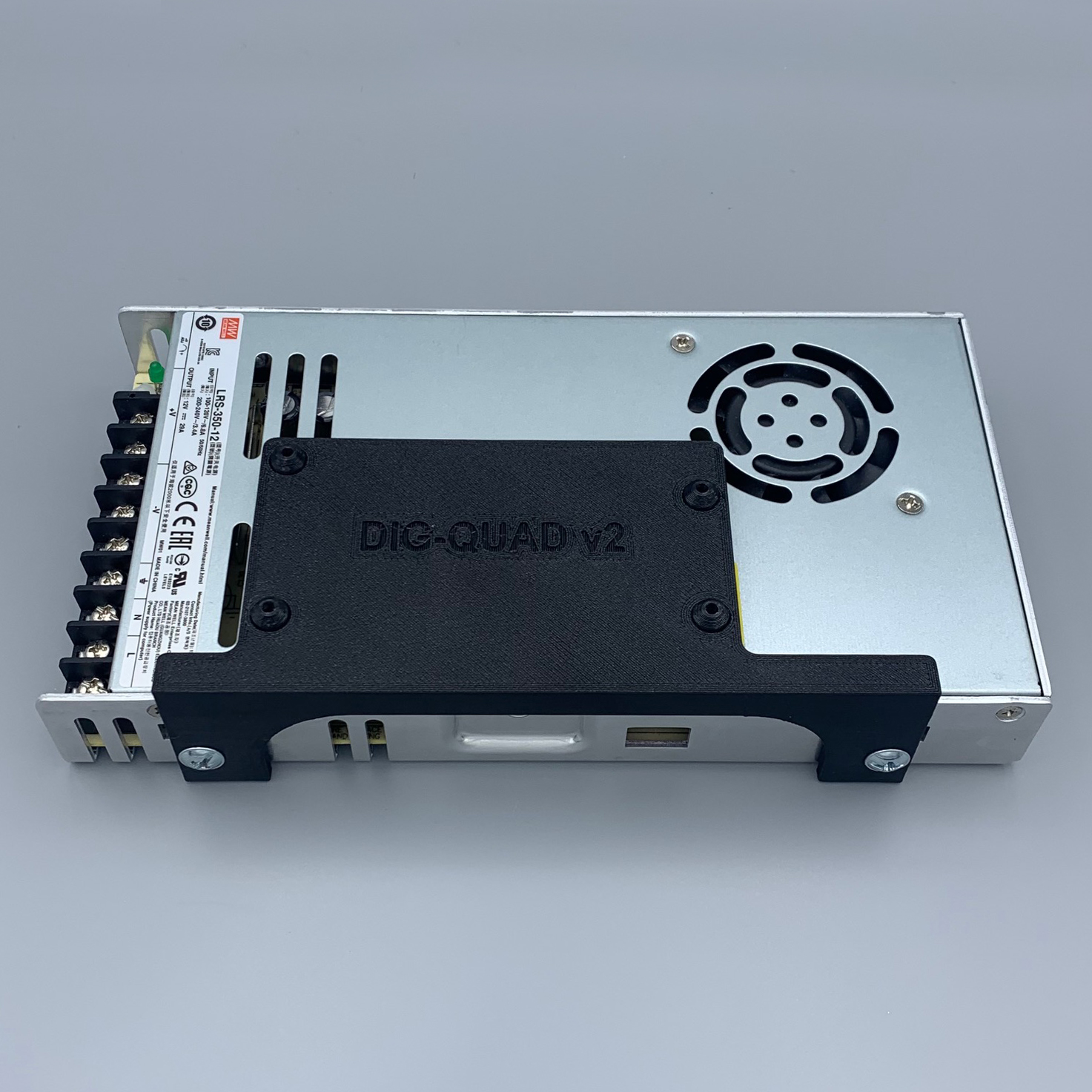

This mount attaches a QuinLED-Dig-Quad board to a Meanwell LRS 350 power supply. The mount features our new press fit standoffs which lock into place and greatly simplify installation as you no longer have loose standoffs that can slide out of the way when installing the board. They need to be printed separately from the primary mount and then aligned over the openings on the deck of the mount and then simply pressed into place until fully seated and secure. The controller mounting holes themselves will self thread and are sized for a M2.5 x 12mm screw. The mount then attaches to the side of the power supply using two M4 x 8mm screws. The Dig-Quad board has multiple versions and each have slight differences in size and hole locations. The download file contains versions of the Dig Quad v1, v2 and v3. Compatible with our Ammo Box Mounting System v2 and Voltage Display Mounts*.

Note: This is a digital purchase for STL files and not a physical product.

*Depending on your connections and accessories connected to the board, such as hats, the voltage display mount addition may not have sufficient clearance to fit.
