Falcon F16 Mount to Meanwell LRS 350 STL

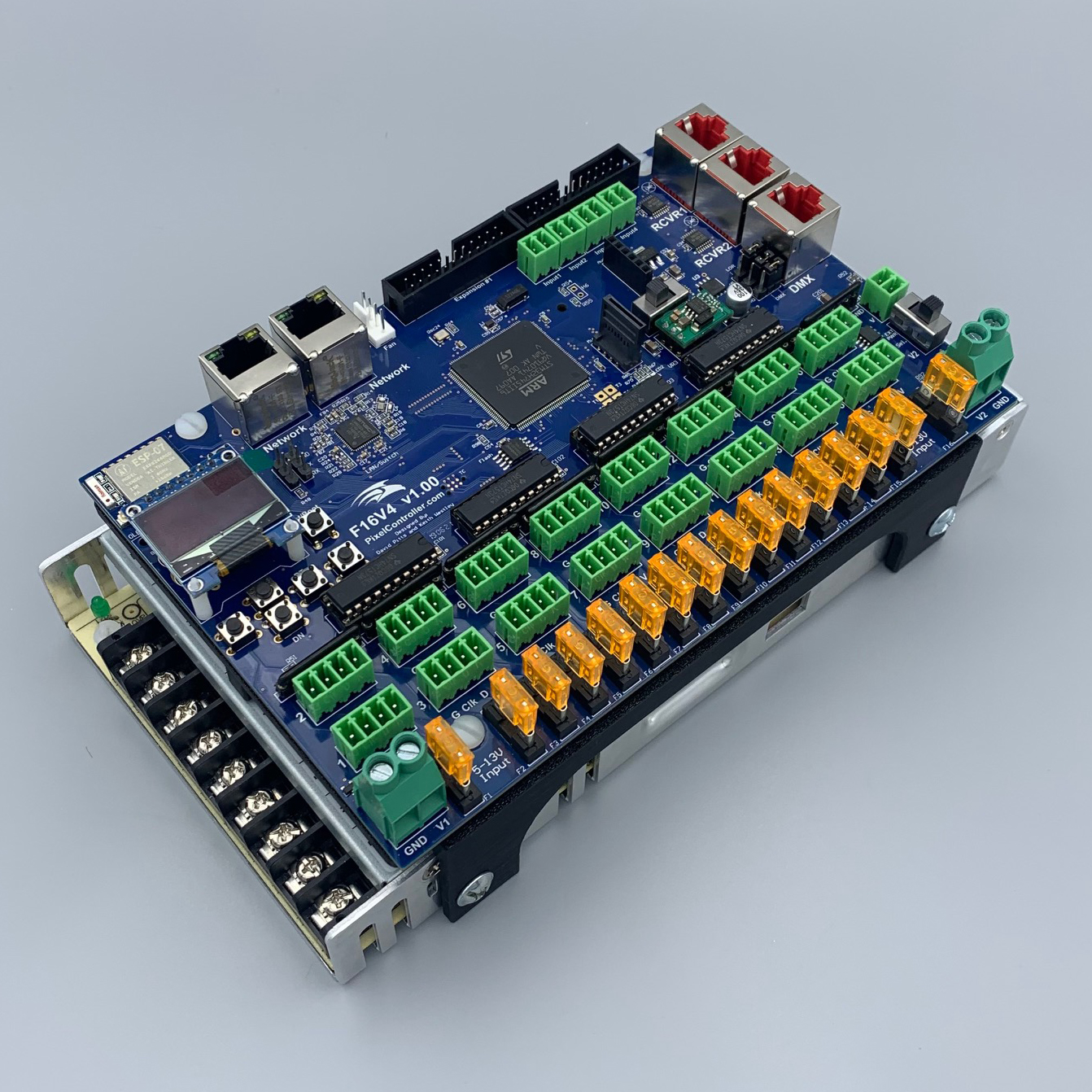

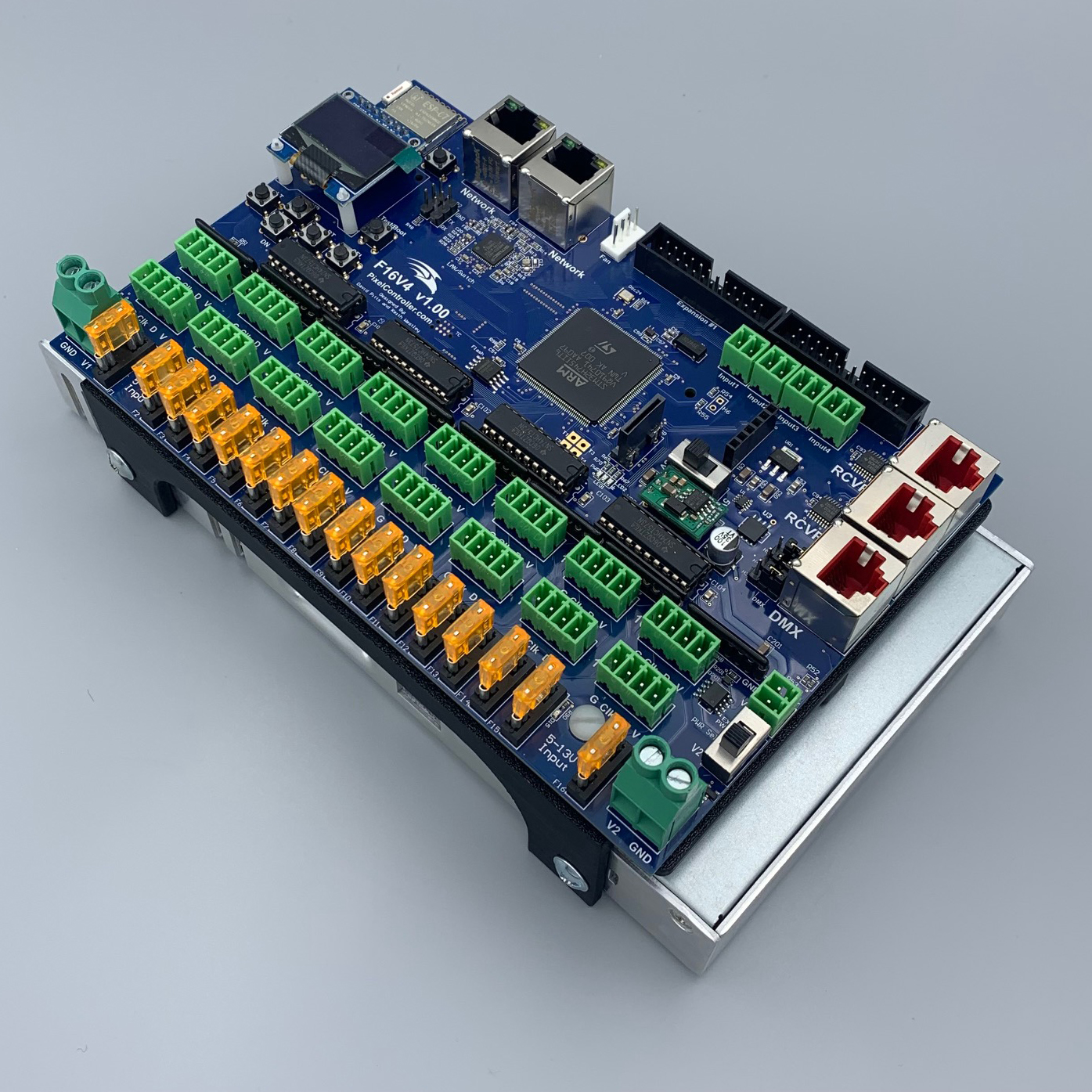

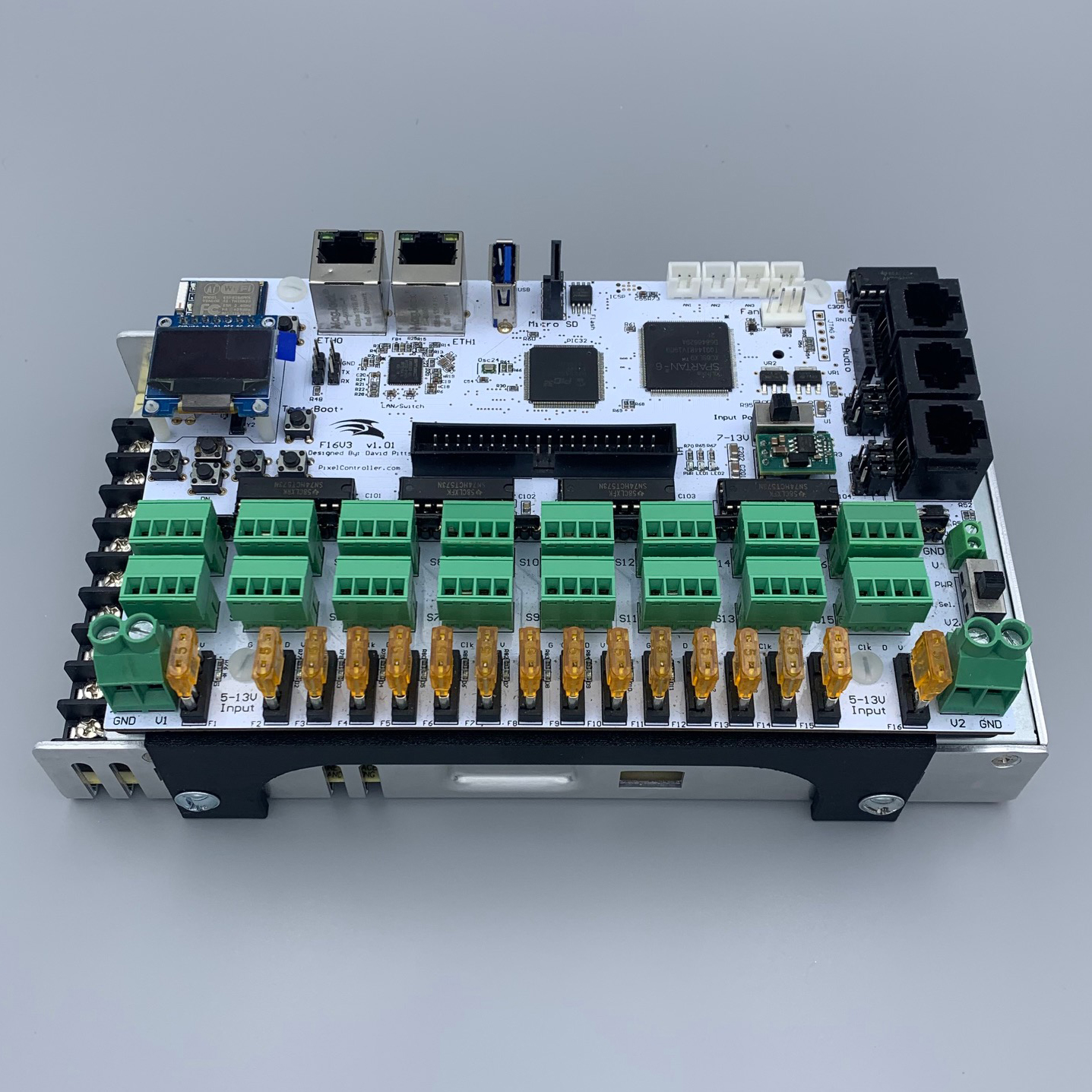

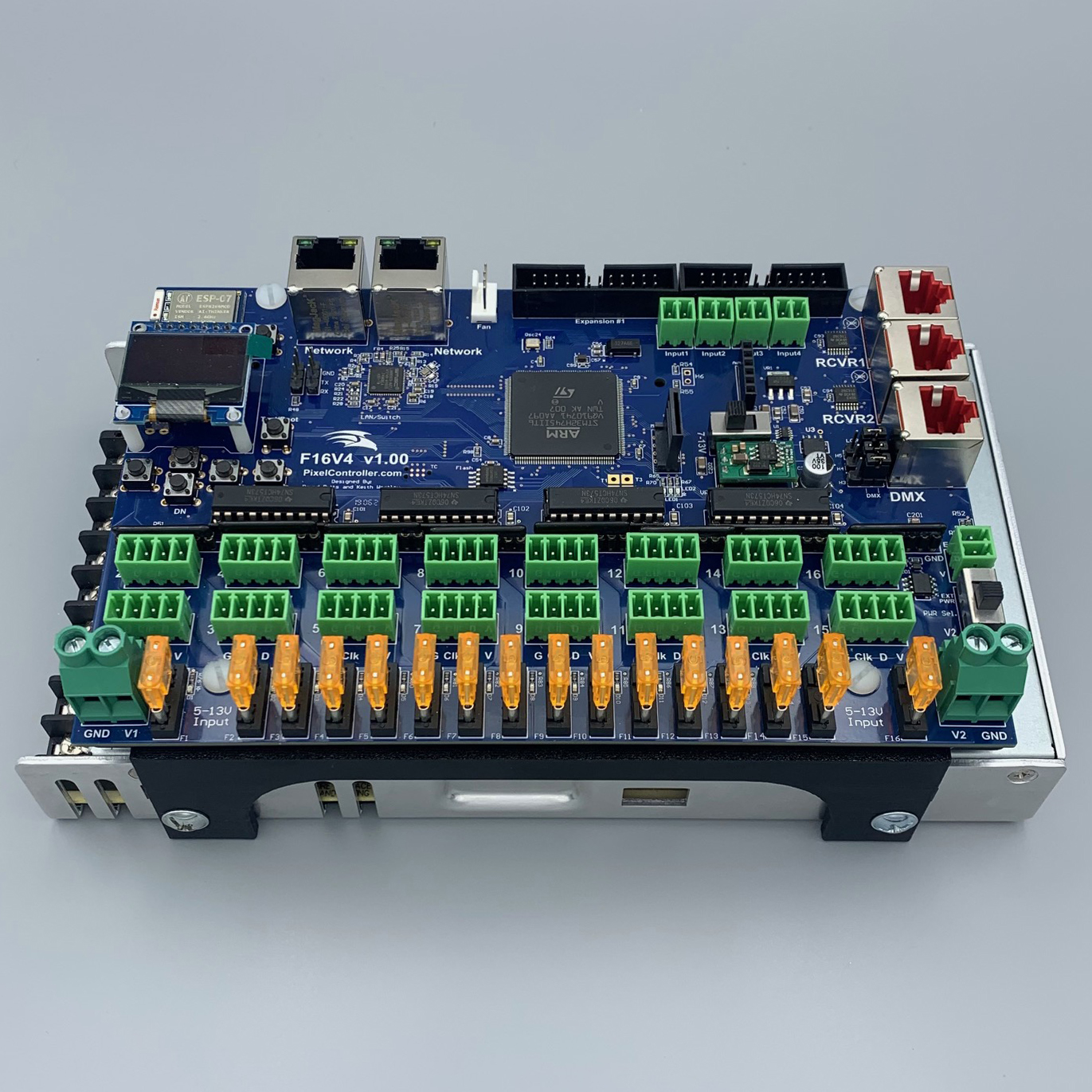

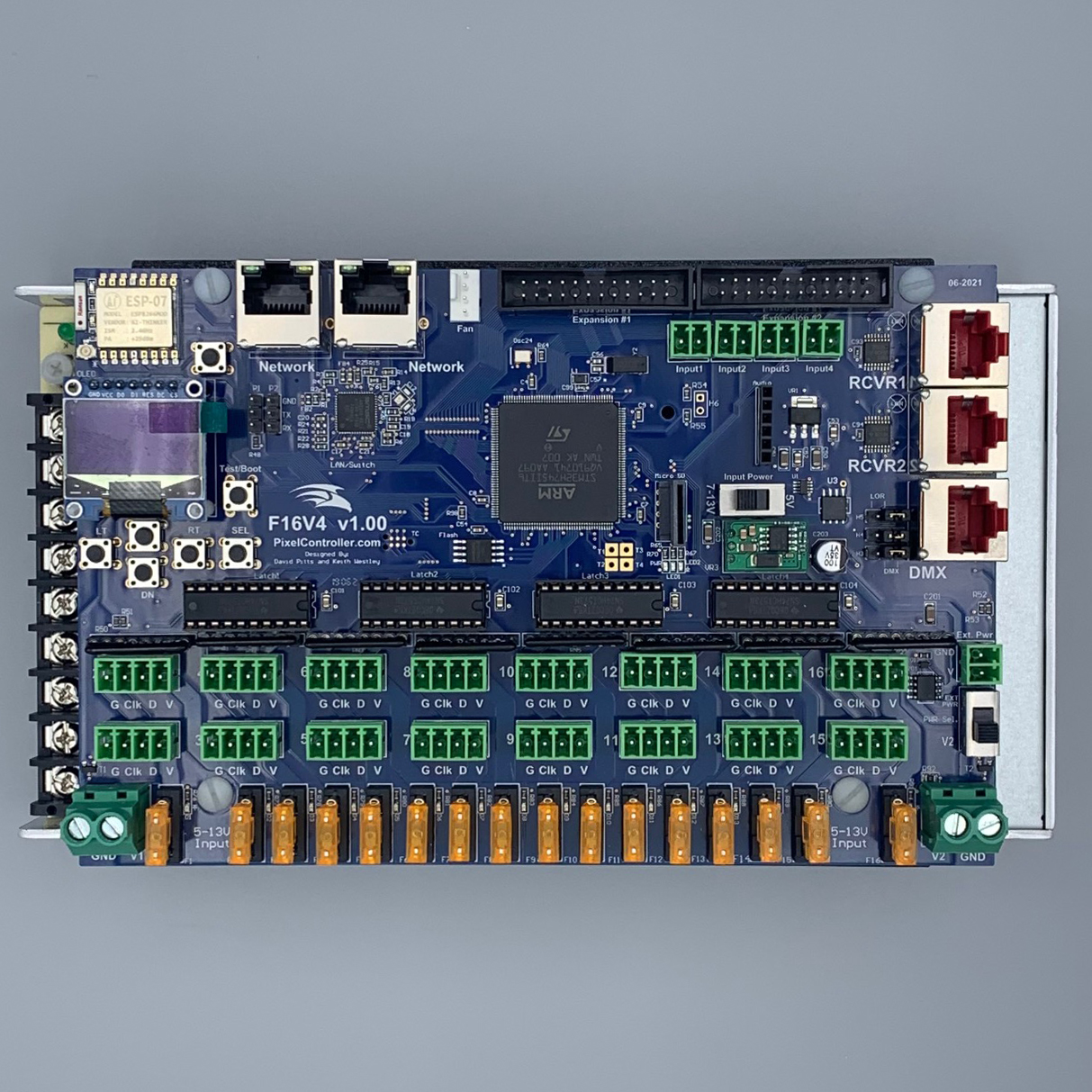

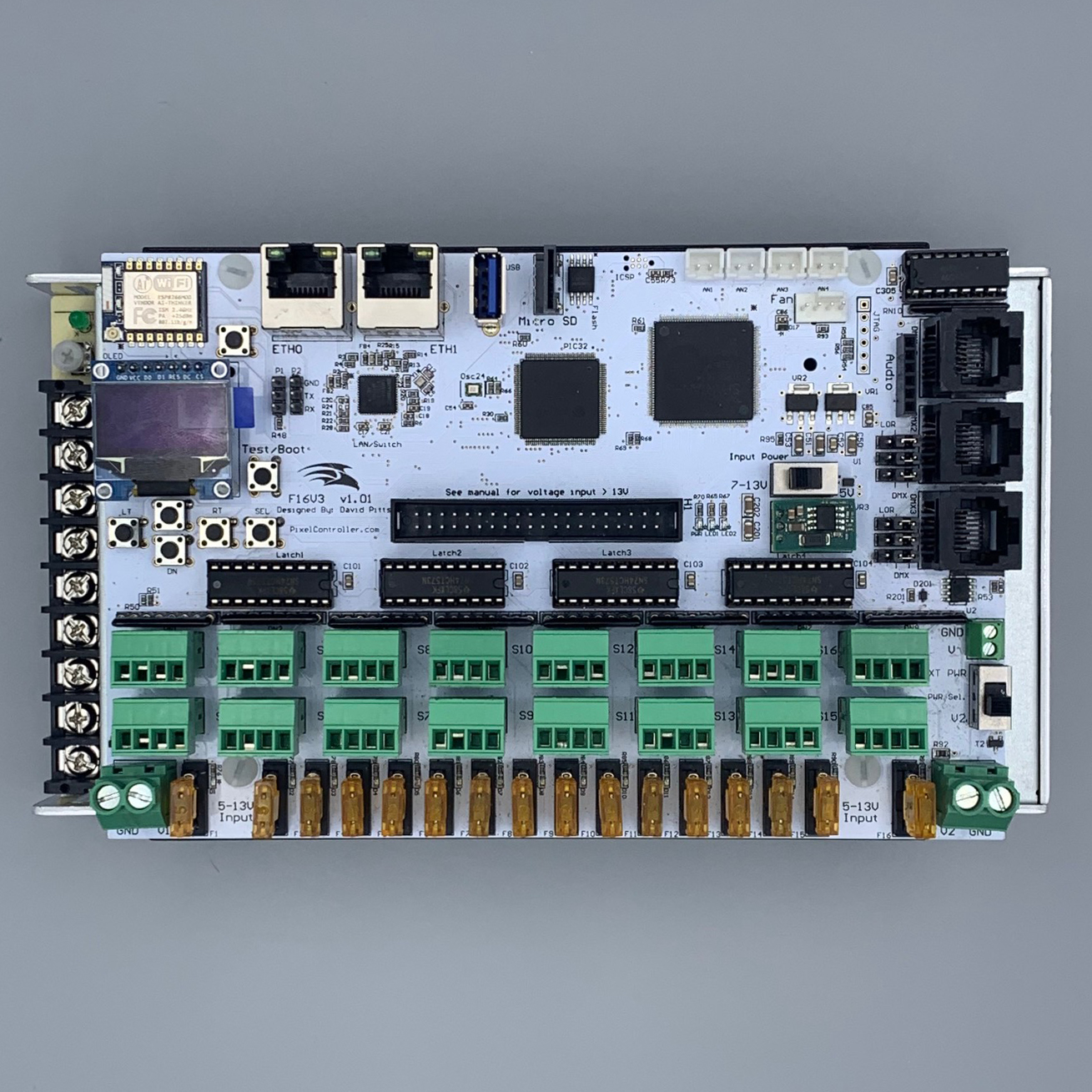

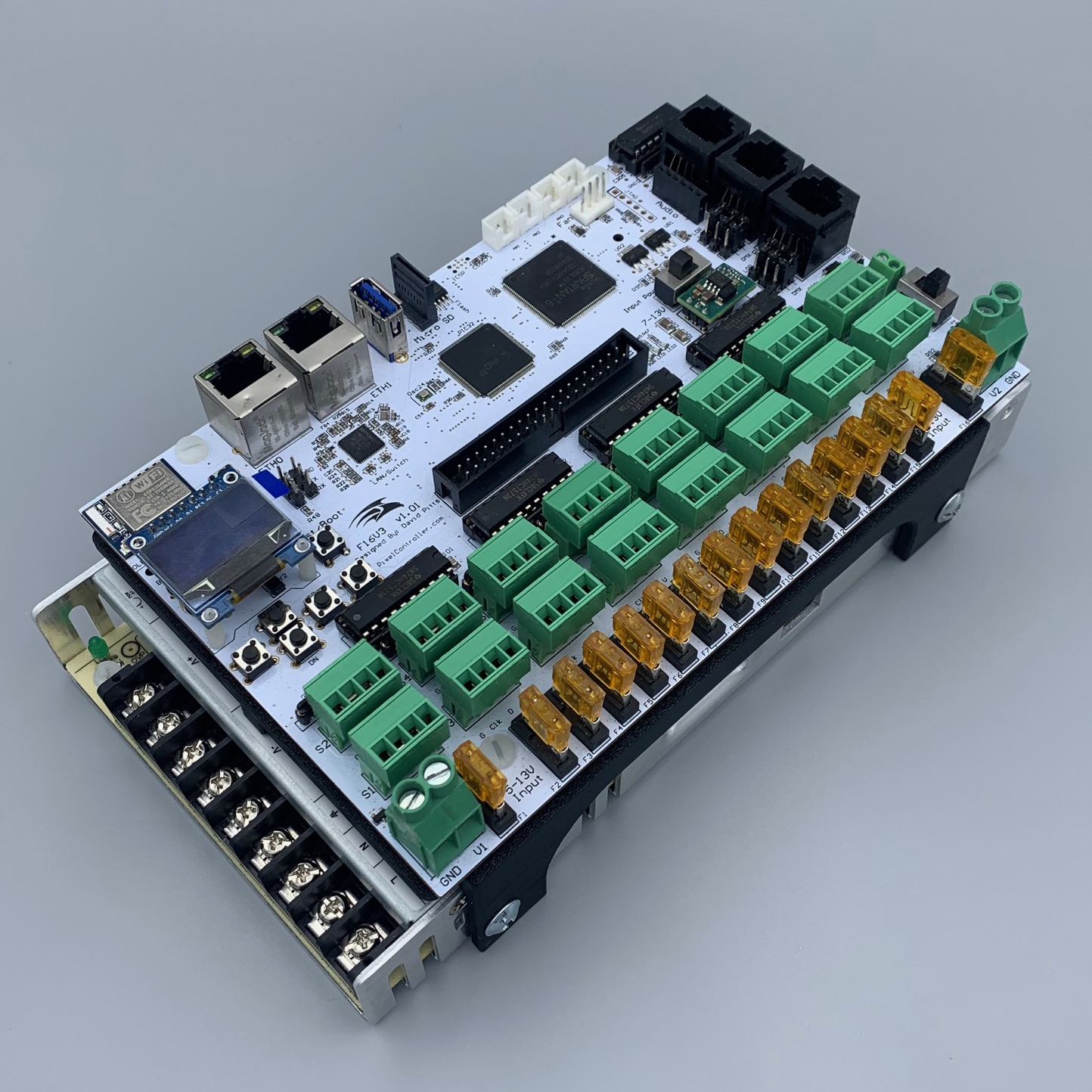

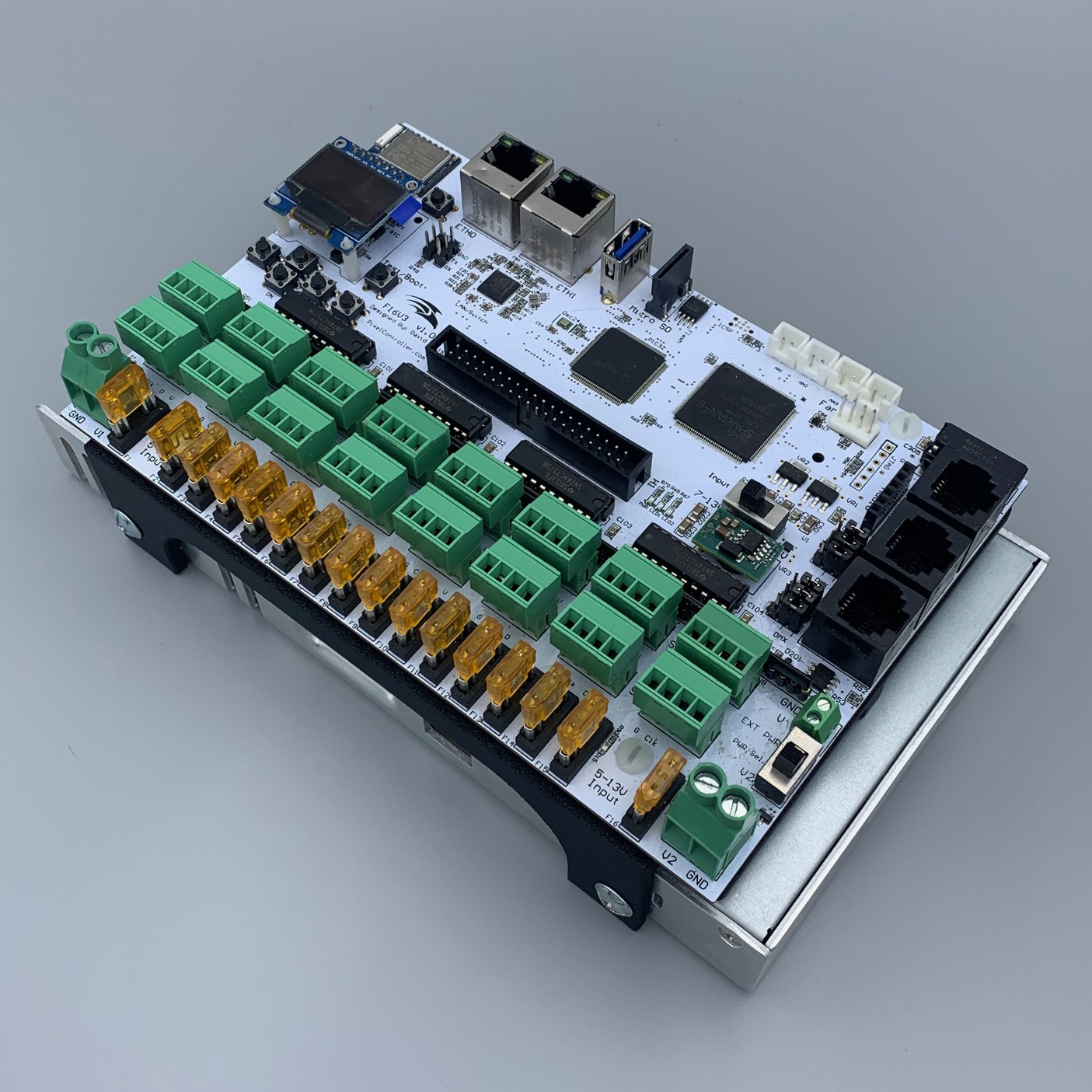

This mount attaches a Falcon F16 pixel controller to a Meanwell LRS 350 power supply. The mount features our new press fit standoffs which lock into place and greatly simplify installation as you no longer have loose standoffs that can slide out of the way when installing the board. They need to be printed separately from the primary mount and then aligned over the openings on the deck of the mount and then simply pressed into place until fully seated and secure. The controller mounting holes themselves will self thread and are sized for a 6-32 x 1/2″ screw. The mount then attaches to the side of the power supply using four M4 x 8mm screws. Due to the large size of the mount, this does partially restrict the fan on the power supply. However there is still clearance above the fan and the sides are open below the controller to allow airflow to pass. Compatible with our Ammo Box Mounting System v2.

Note: This is a digital purchase for STL files and not a physical product.

Weight 2 oz
Falcon Version

v2 or v3 (red or white), v4 & v5 (blue)
