Ammo Box 30 Caliber Mounting System

$12.95

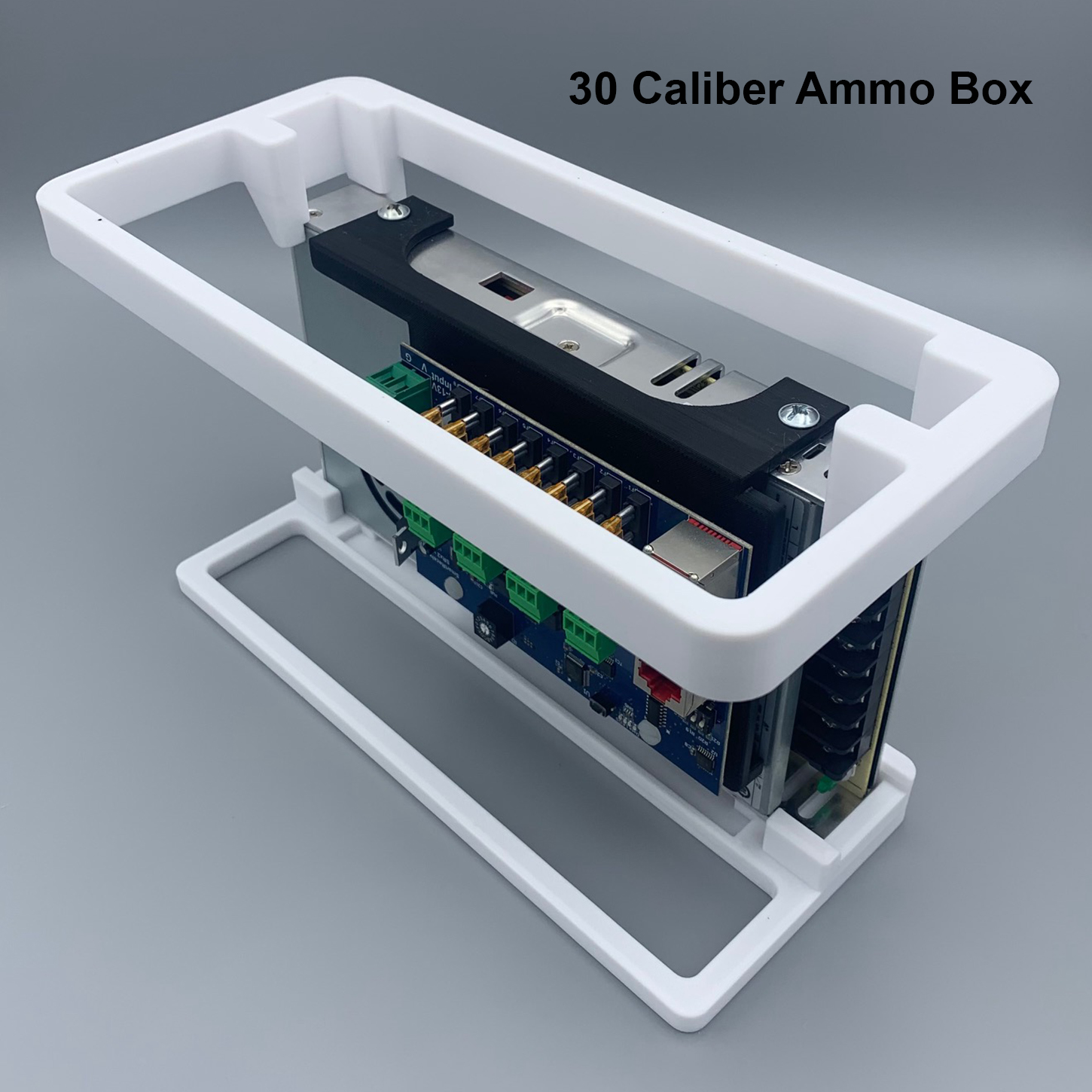

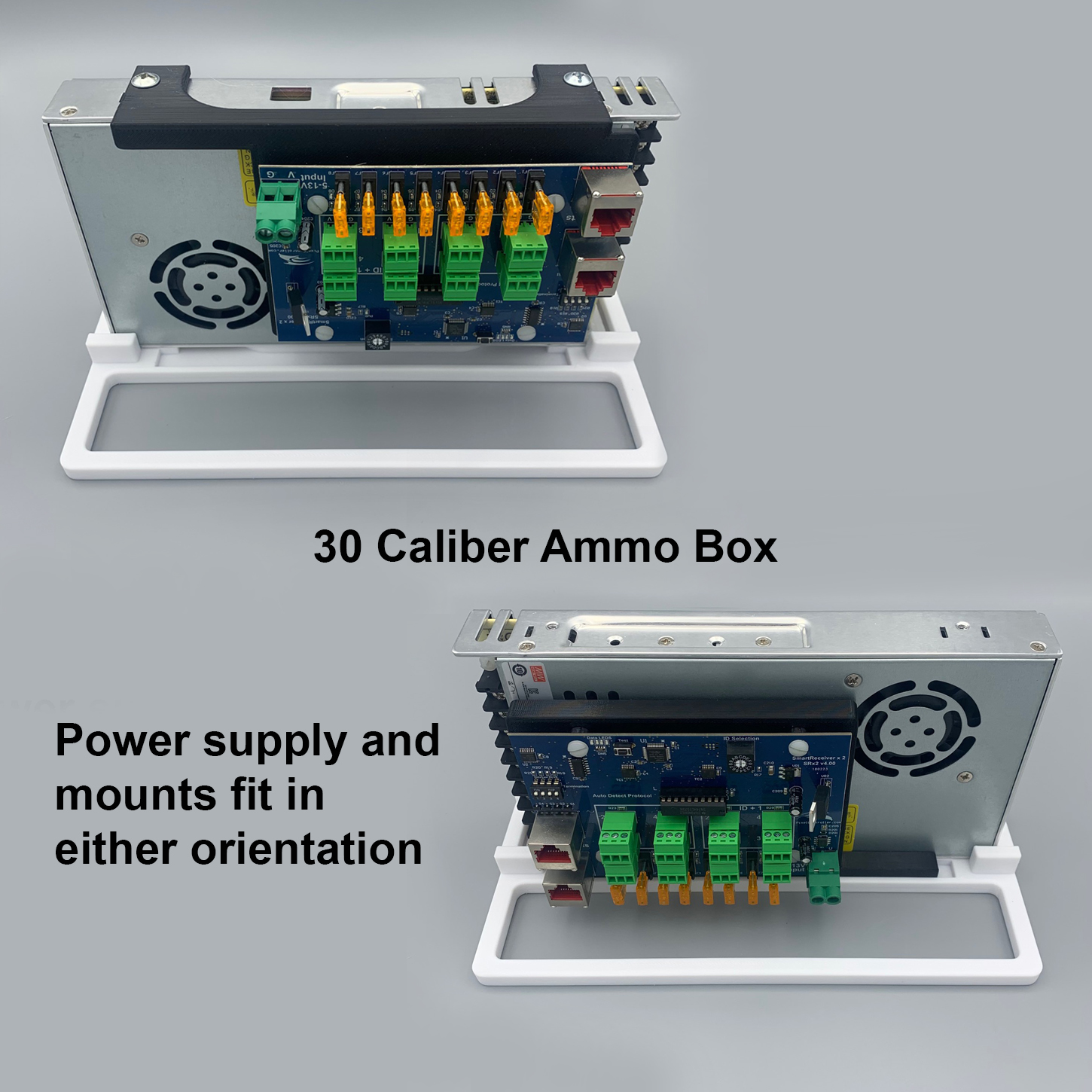

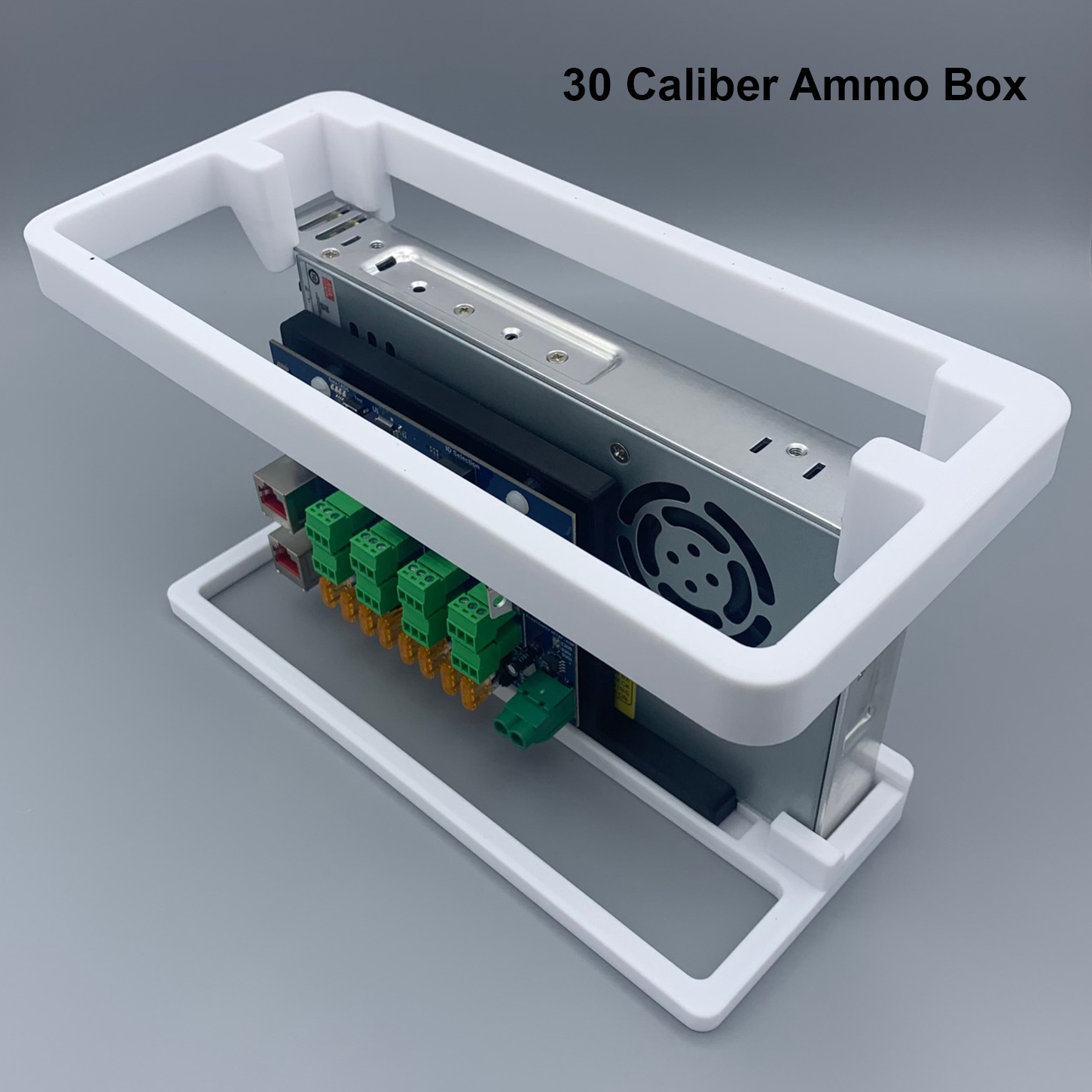

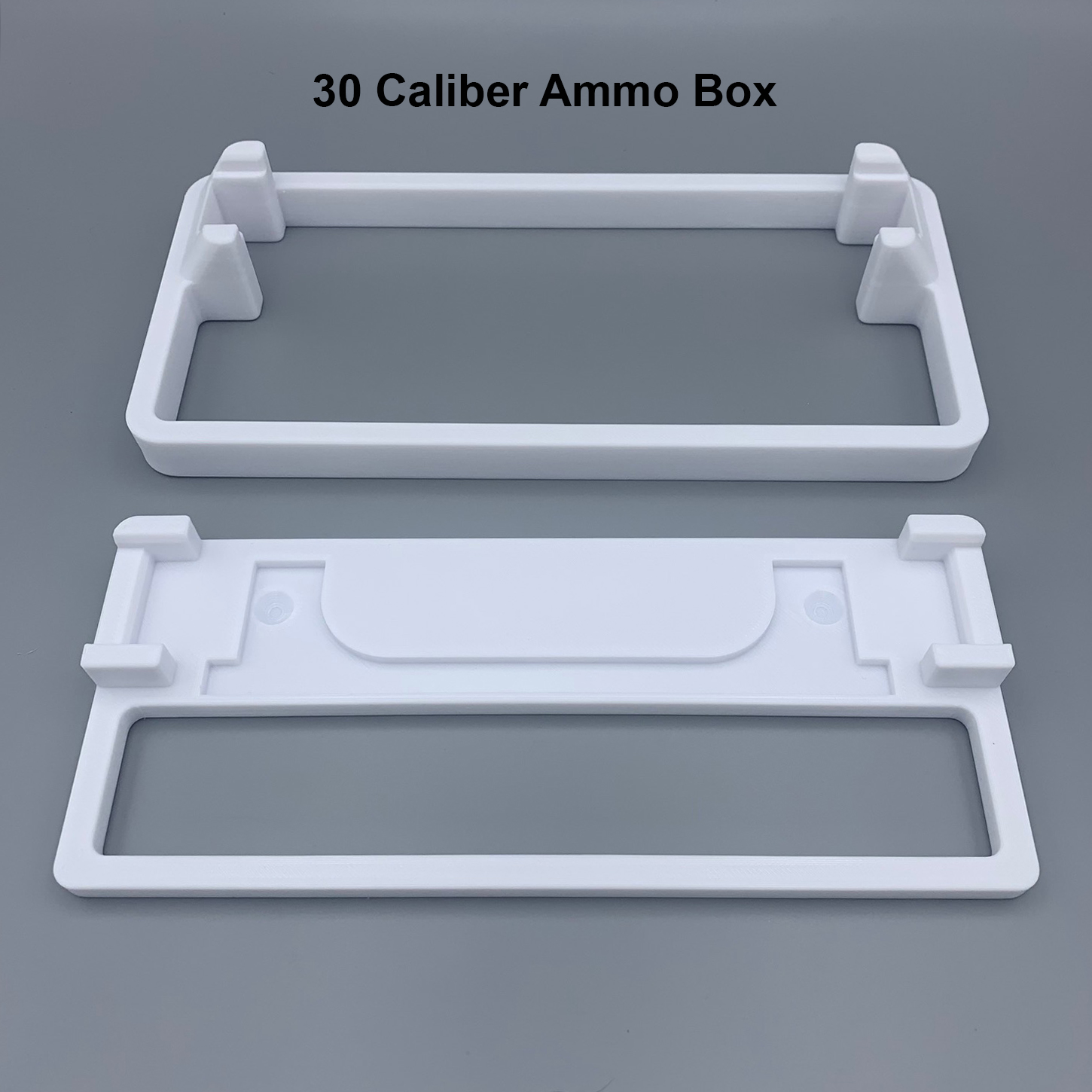

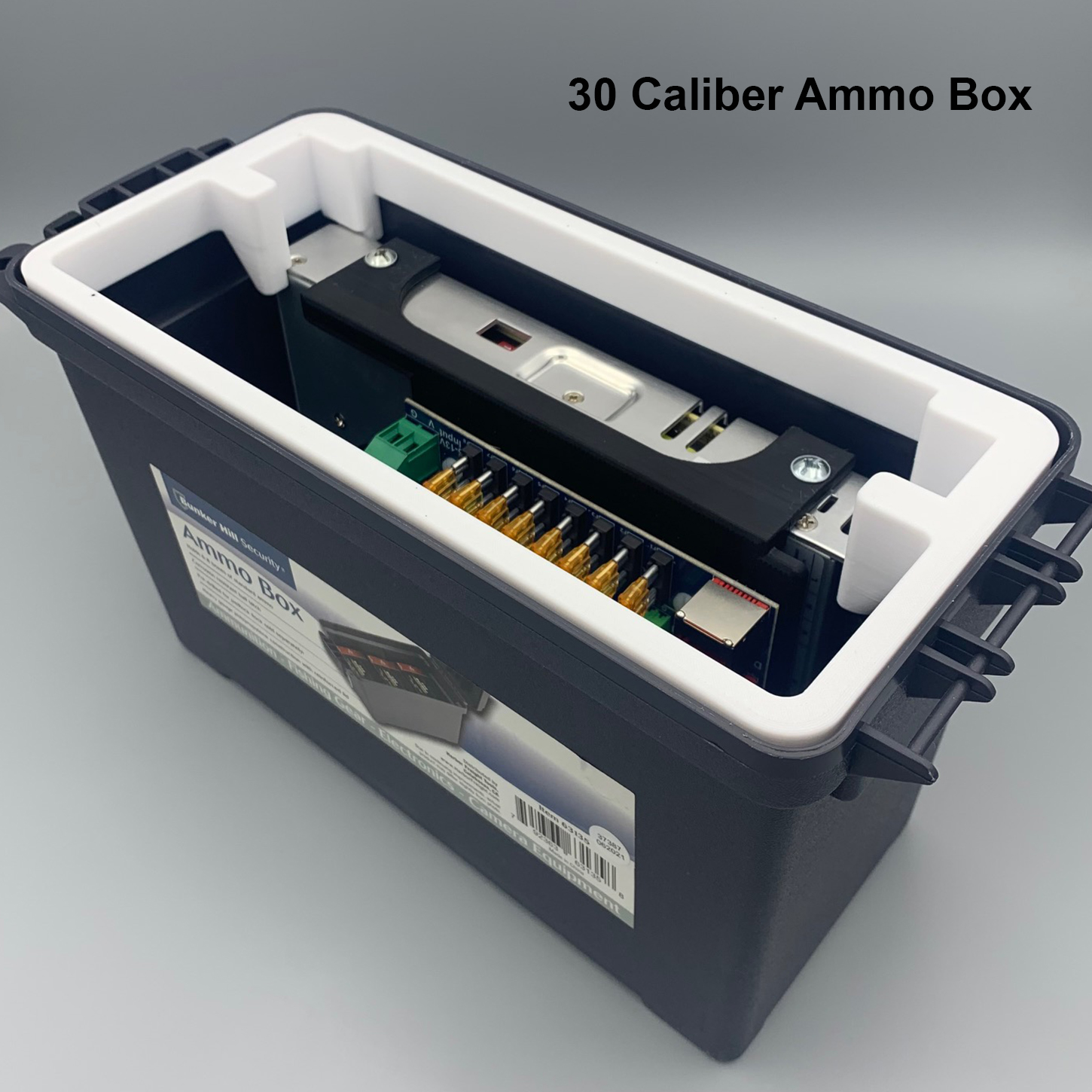

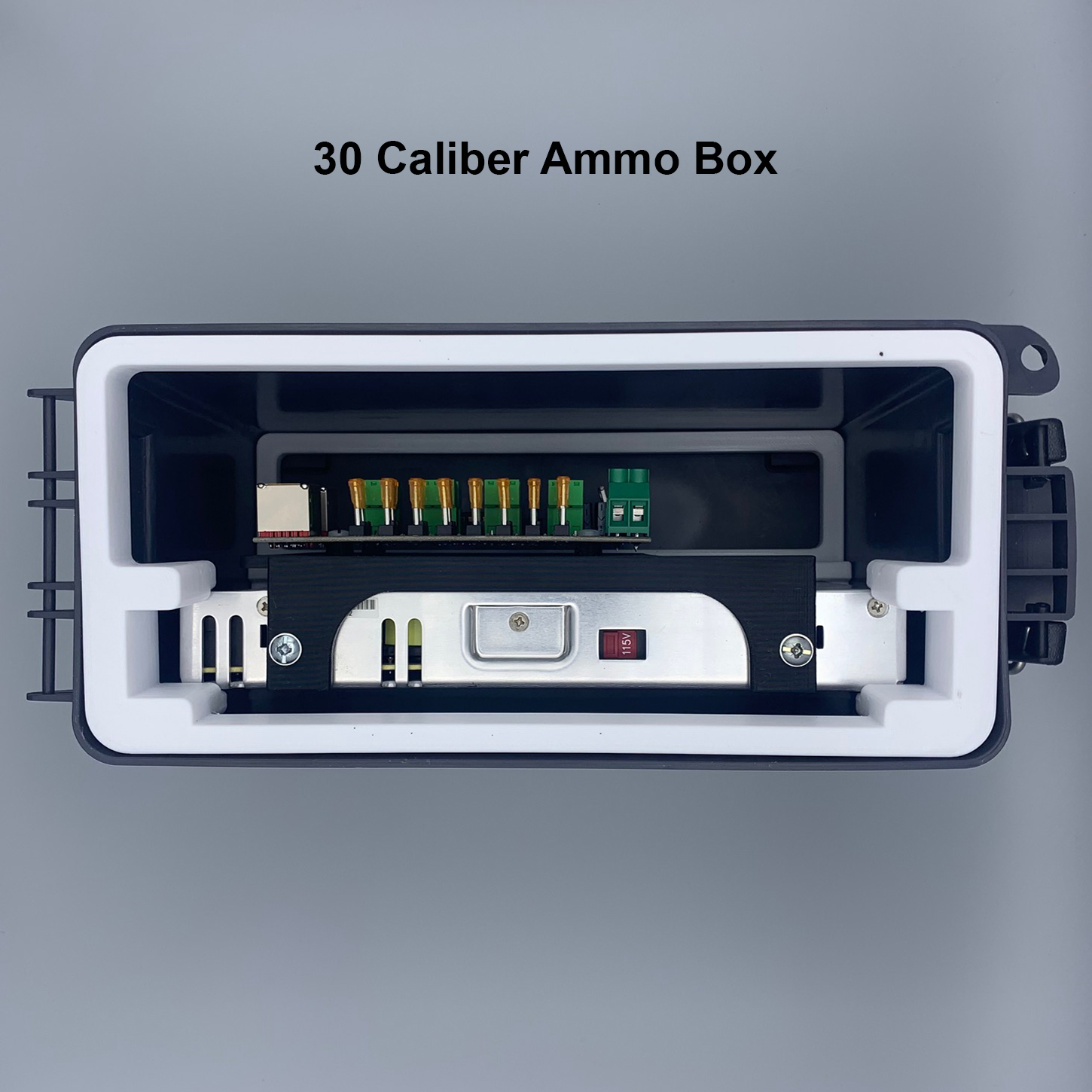

The Ammo Box 30 Caliber Mounting System v3 provides a quick and easy way to secure a Meanwell LRS 350 or 600 power supply along with virtually all of our controller mounts into the popular Harbor Freight 30 Caliber Ammo Boxes to make a simple electronics enclosure. The 30 caliber version consists of a lower insert with an upper mount. The power supply simply fits on its side and is held in place by the mount profile when the lid is closed. The mounting system works with all of our Meanwell LRS mounts* (sold separately), so you can mount any of the accessories such as distro boards, receiver boards, Raspberry pi’s and even full size 16 port controllers such as the Falcon F16. While you can fit a full size controller or 16 port expansion board inside the smaller 30 caliber boxes, generally speaking this size ammo box should be limited to no more than two 4 port receiver sized boards and utilize the 50 caliber boxes for the larger builds. Colors may vary, typically they are white or black. If you have a specific color request for white or black please include a note indicating your preference with your order, but keep in mind that it may increase processing time for in-stock items. Includes 3D printed parts only. See below for more information including a video showing how the Ammo Box Mounting System works.

30 Caliber Ammo Box Link

SKU: AMMOBOX-30 Category: Tag:

* Controller mounts that attach to both sides of the power supply will need an additional spacer of approximately 4mm on the 50 caliber ammo box when used with dual power supplies because of material thickness. We make a spacer for this purpose that fits the LRS-350 and LRS-600. More info can be found by clicking here.

The latest Ammo Box version 3 mounts are fully backwards compatible with all previous generations of controller mounts. Version 3 mounts can easily be identified by observing text on the mounts as the previous generations had no text.

While the 30 caliber Ammo Box mounts have versions for both the LRS 350 and LRS 600 power supplies, room inside the box is tight when the LRS 600 is used and we do not typically recommend it’s use. As such no refunds or exchanges are allowed when purchasing the LRS 600 version.





3D printing parts is a slow process and we have a whole print farm running 24/7 to fulfill orders and build stock of the more popular items. If you order a product that shows “made to order” we will move it directly to the print queue where it will be printed as soon as possible. While normal processing times for most orders with made to order items is less than a week, it can fluctuate. Very large orders can also experience longer than normal processing times as well because of the high number of hours it takes to produce lots of parts. If processing times are expected to be longer than two weeks before shipping, there will be a banner at the top of the website indicating the expected wait times. See the FAQ page for more info.

All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.

Please follow and like us:
Pin Share
Weight 8 oz
Meanwell Varient

LRS-350, LRS-600
