For each post mount you will need a 45mm long M6 screw or bolt, a washer (fender preferred if there is room) and a M6 nut.

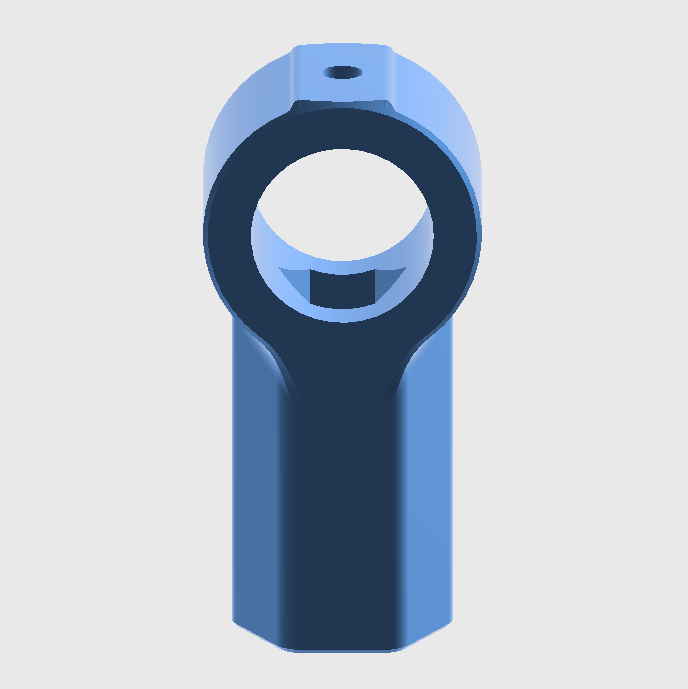

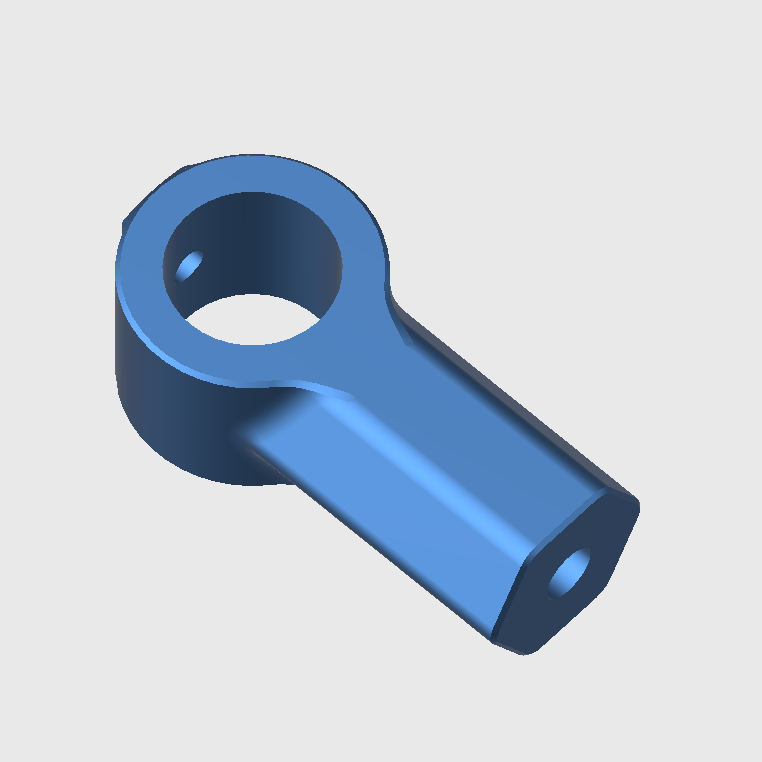

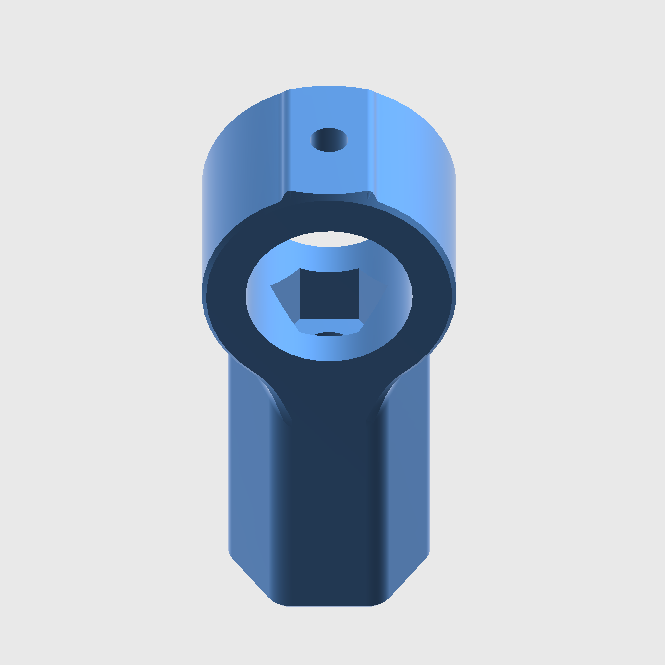

Start by drilling a 6mm hole through the coro where the post mount will be located. Then prep the mount by inserting the M6 nut into the mount. It’s often easiest to temporarily insert the screw from the bottom of the mount and threading the nut onto the screw. As you tighten the screw it will pull down the nut and seat it in place. To install the mount insert the screw with the washer from the front of the prop and thread the screw into the mount on the back. Then orient the mount as desired and tighten down on the screw to hold everything tightly in place.
Note: The 45mm screw / bolt is an odd size and is not commonly carried by stores. This size is required to maintain a constant mounting height across all of our mount designs. If not available, you will need to either purchase a longer size such as 50mm and cut the size down to 45mm, use additional washers on the front side of the prop or predrill the conduit so that it can accept the longer end of the screw or bolt.
