Meanwell LRS 350 Mounting Rack STL

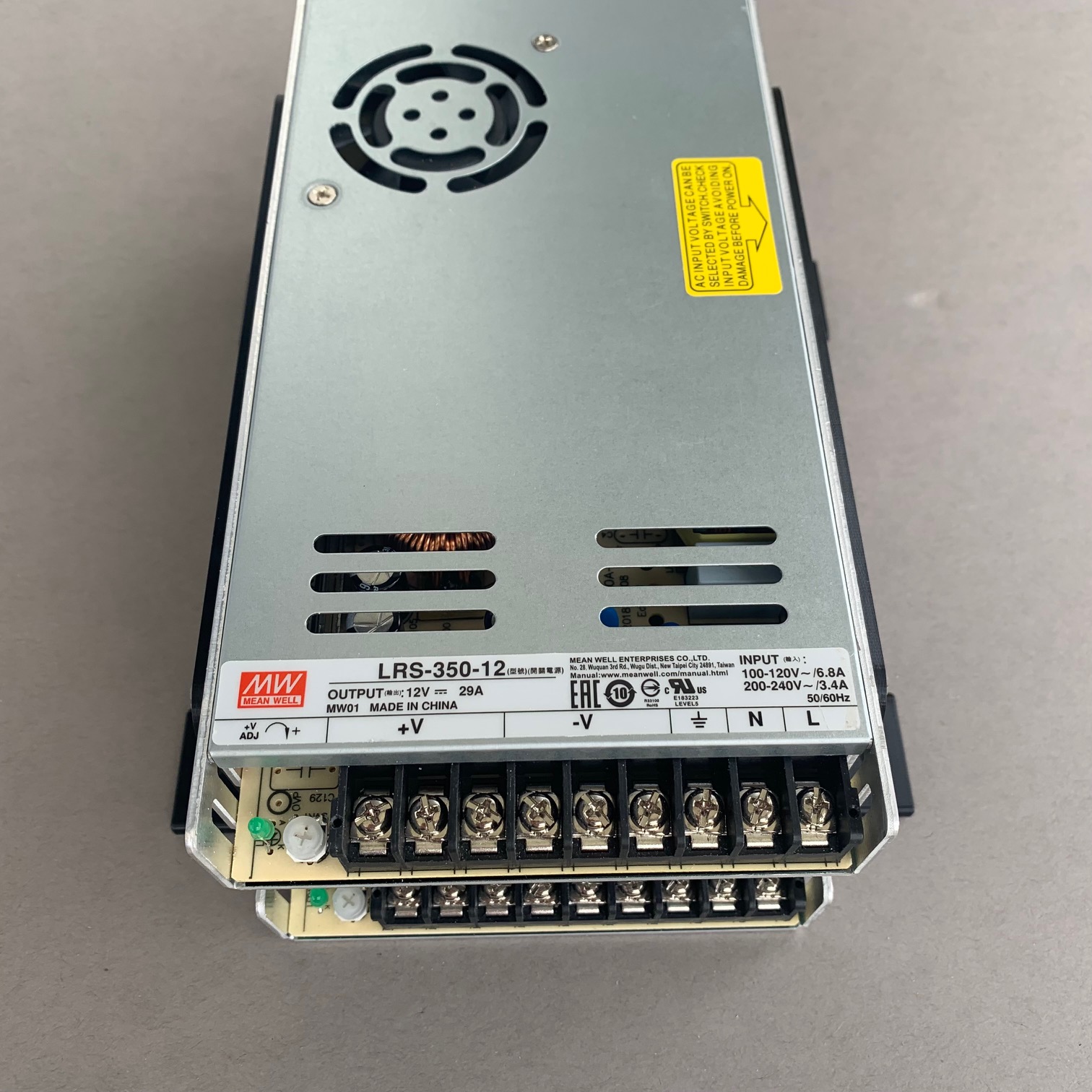

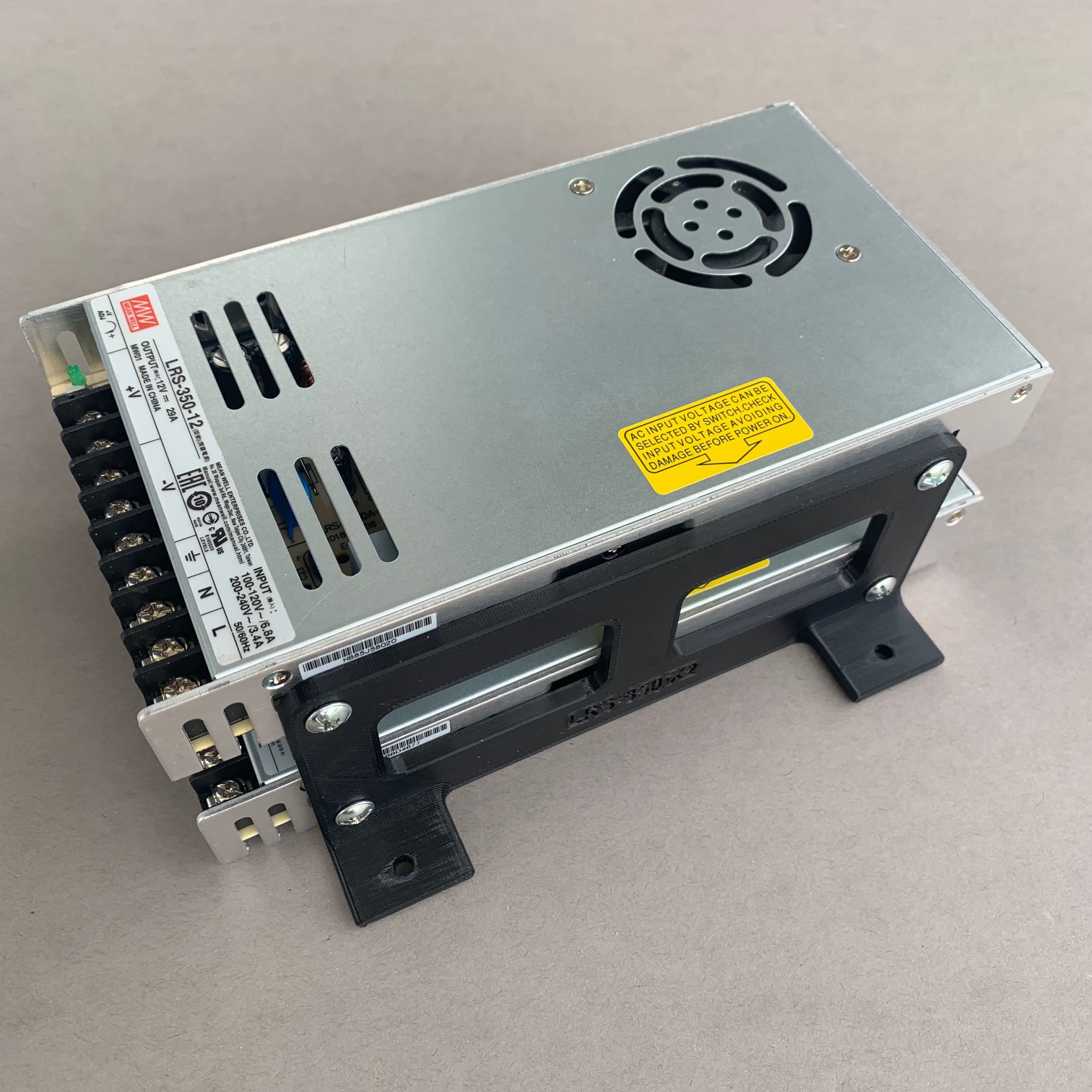

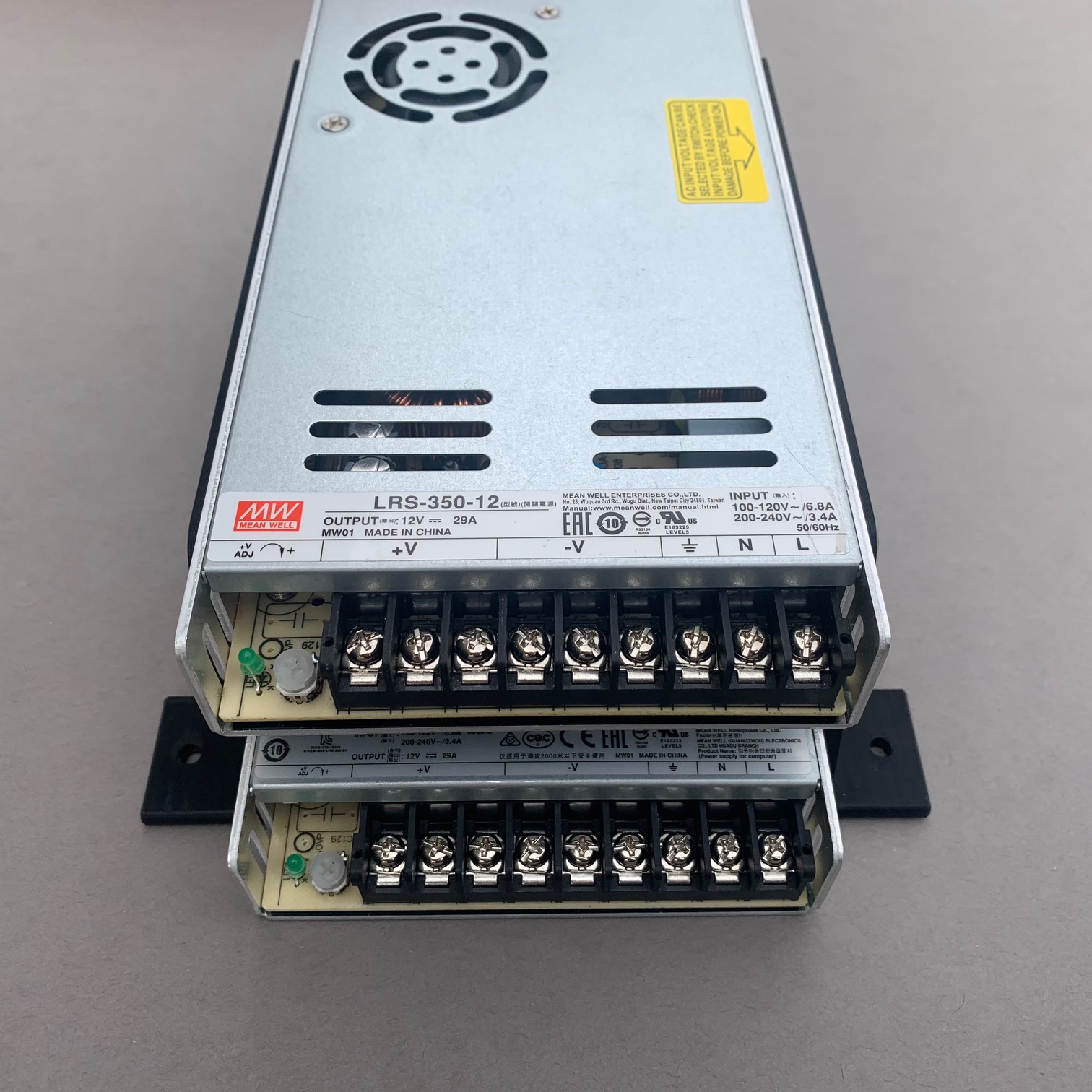

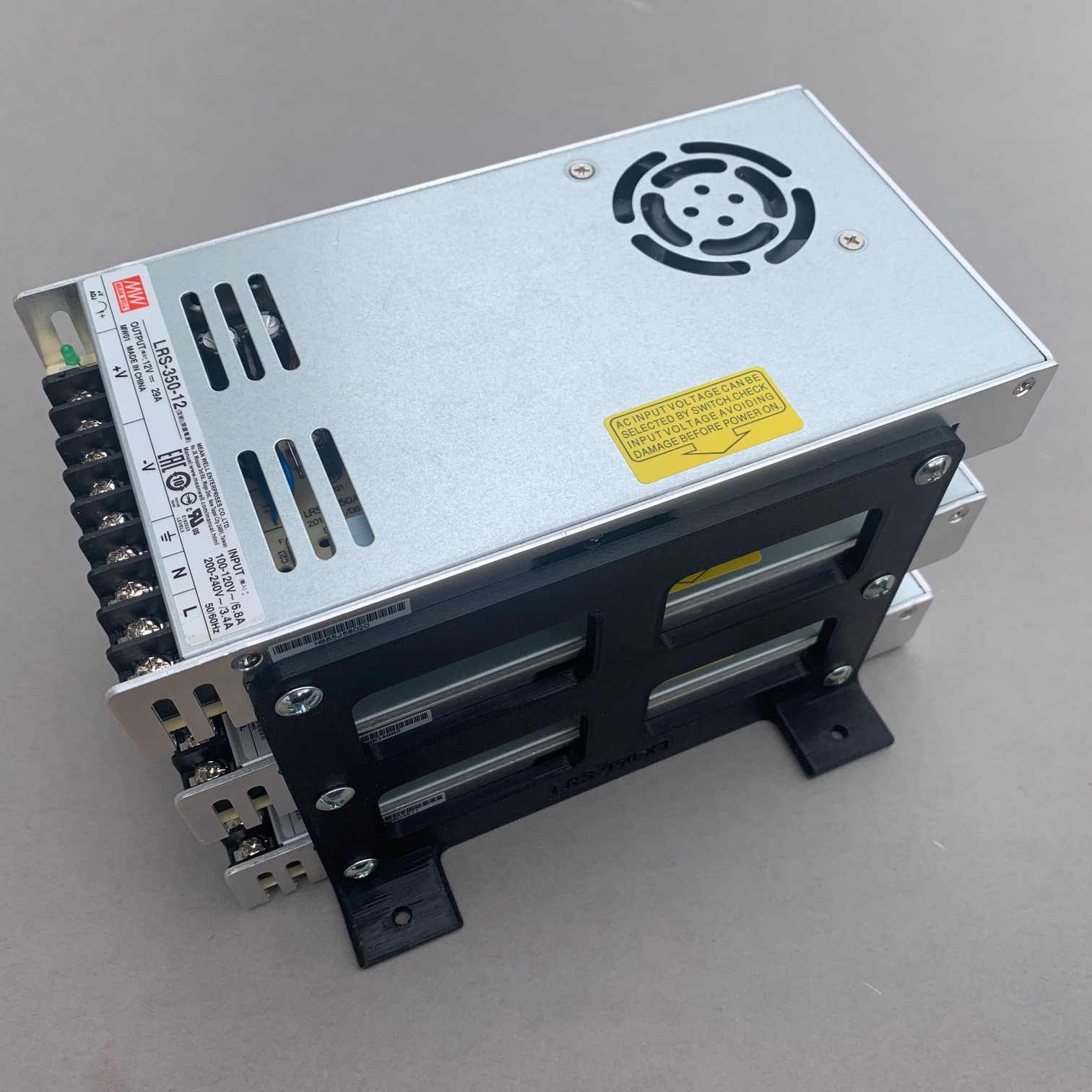

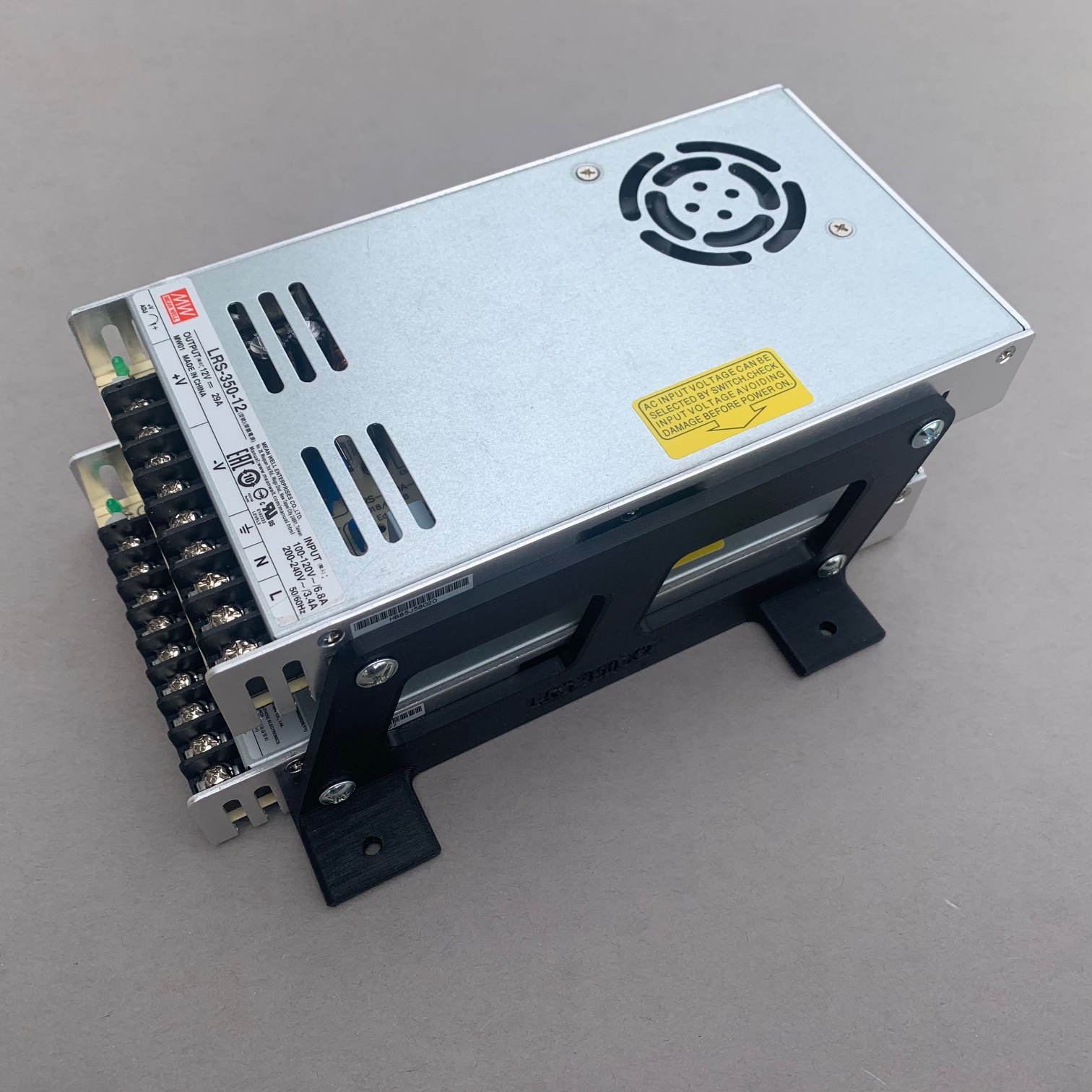

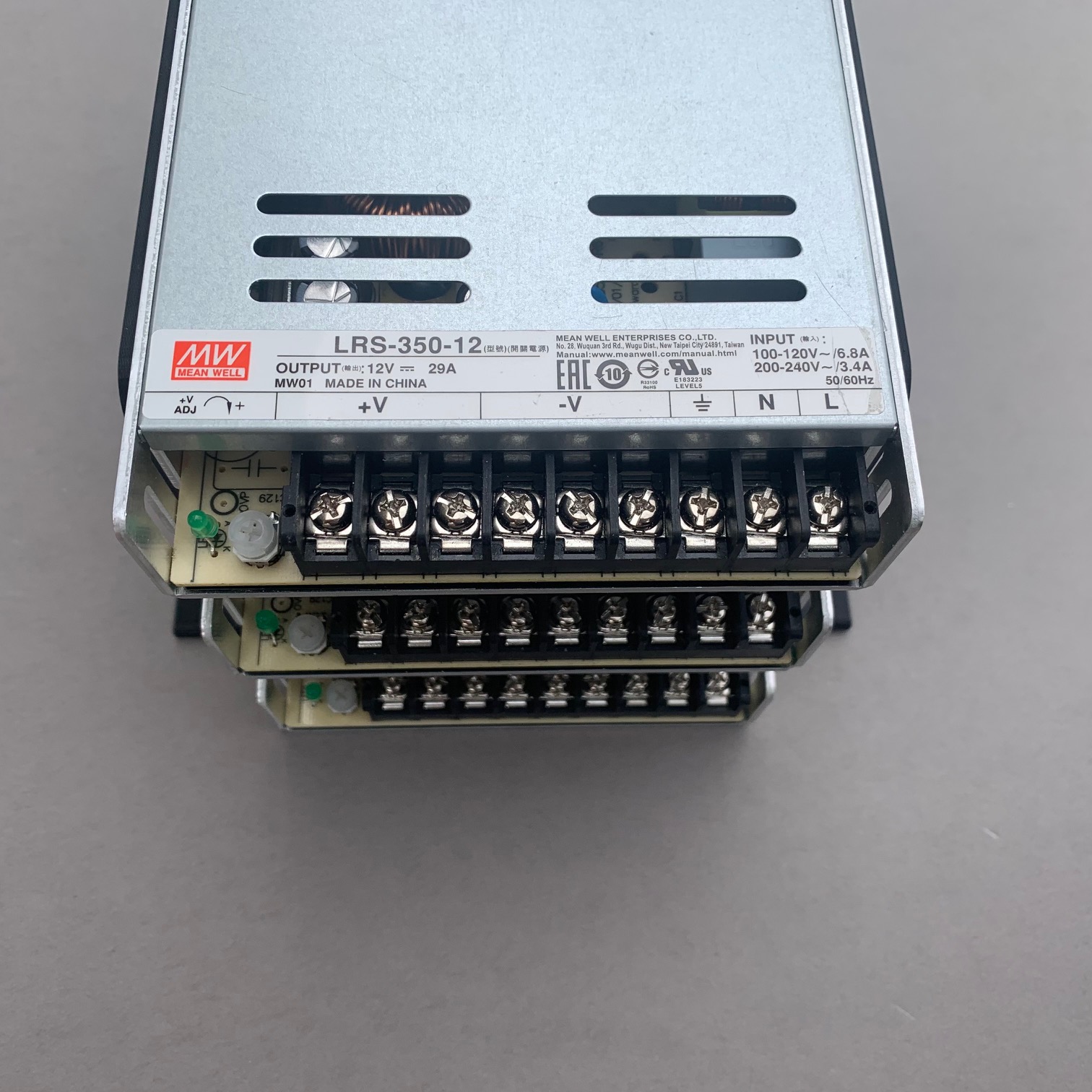

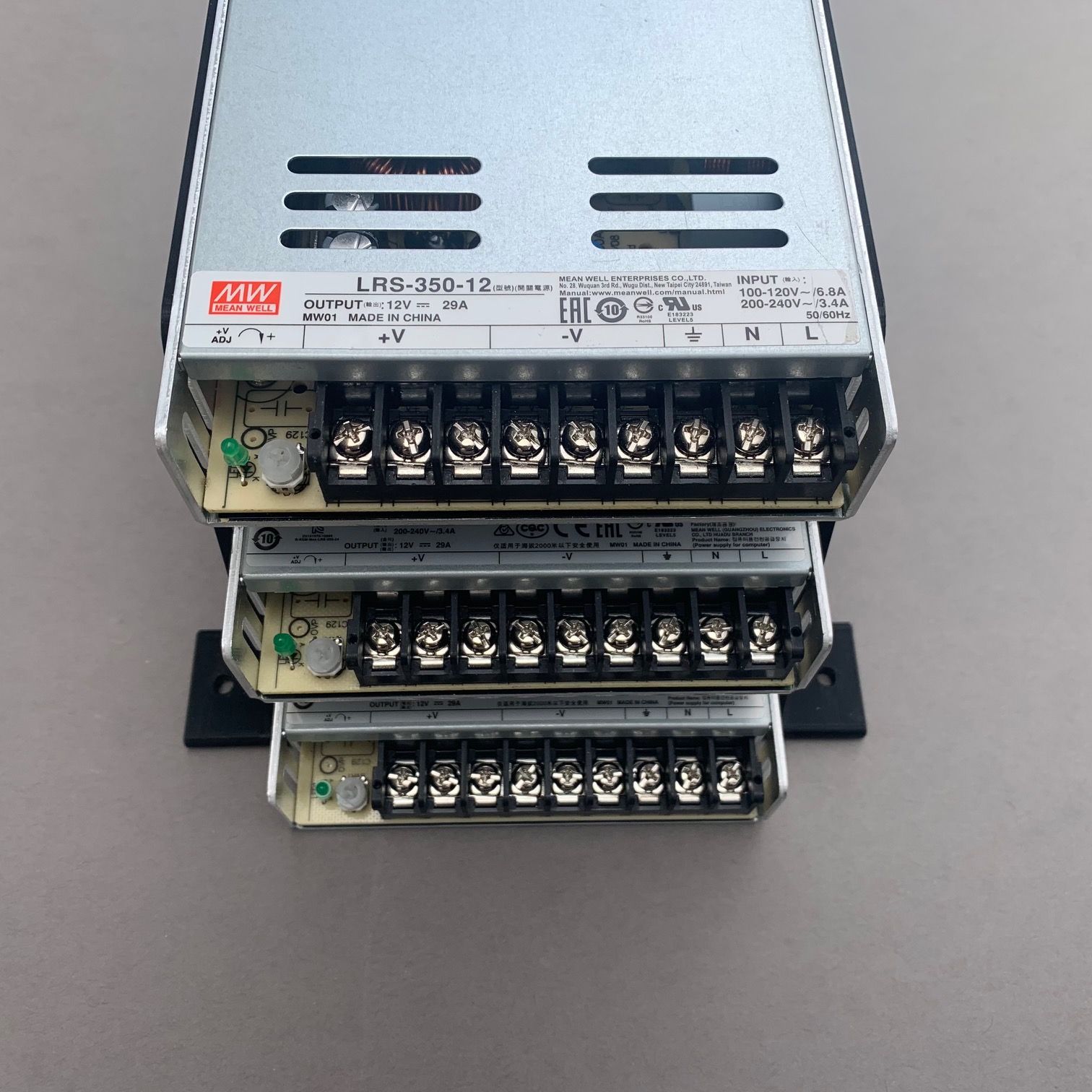

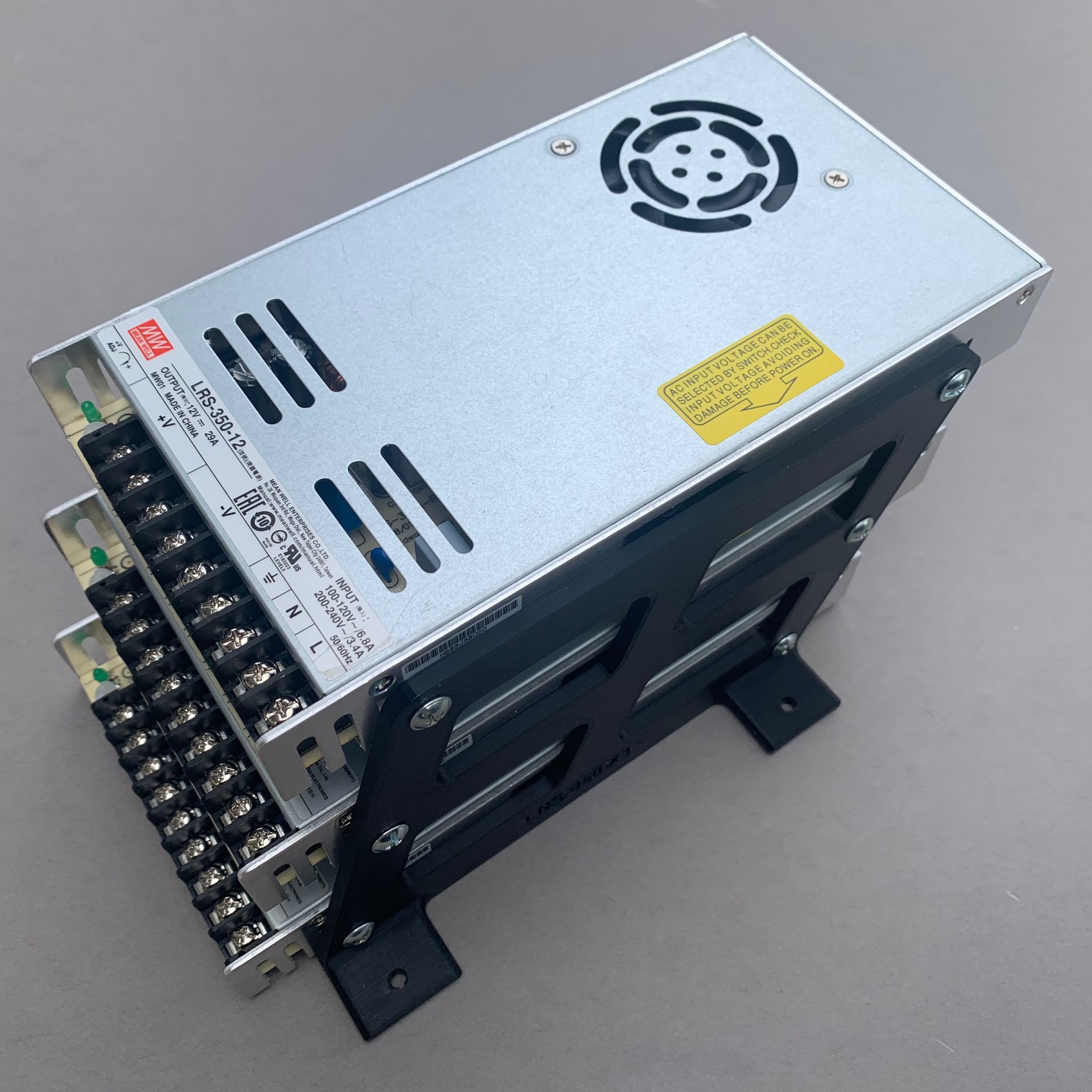

This mounting rack allows 2 or 3 Meanwell LRS 350 series power supplies to be mounted on top of each other using M4x10 screws. There are two available styles, a staggered configuration and a stacked configuration. The staggered configuration offsets the additional power supplies by 16mm so there is easy access to the terminals on all power supplies. The stacked configuration has the power supplies directly over top of each other. This saves space, but makes access to the lower power supply terminals difficult and connections will likely need to be fully made on the lower power supplies first before installing the upper power supplies. Our other accessory mounts to Meanwell LRS 350 power supplies will work on the top power supply in combination with this rack by placing it between this mount and the power supply*.

Note: This is a digital purchase for STL files and not a physical product.

SKU: N/A Category: Tag:

* Controller mounts that attach to both sides of the power supply will need an additional spacer of approximately 4mm when used with multiple power supplies because of material thickness. We make a spacer for this purpose that fits the LRS-350. More info can be found by clicking here.

Please follow and like us:
Pin Share

2x Power Supplies, 3x Power Supplies


Staggered, Stacked
