Genius Receiver and Falcon Distro Mount to Meanwell LRS 350 STL

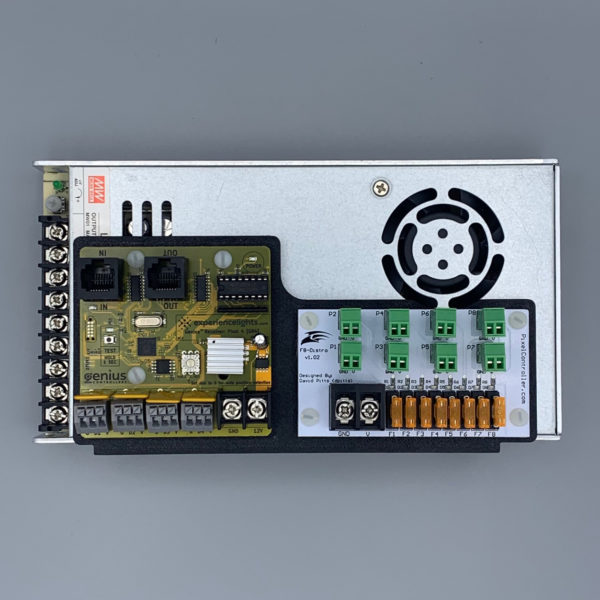

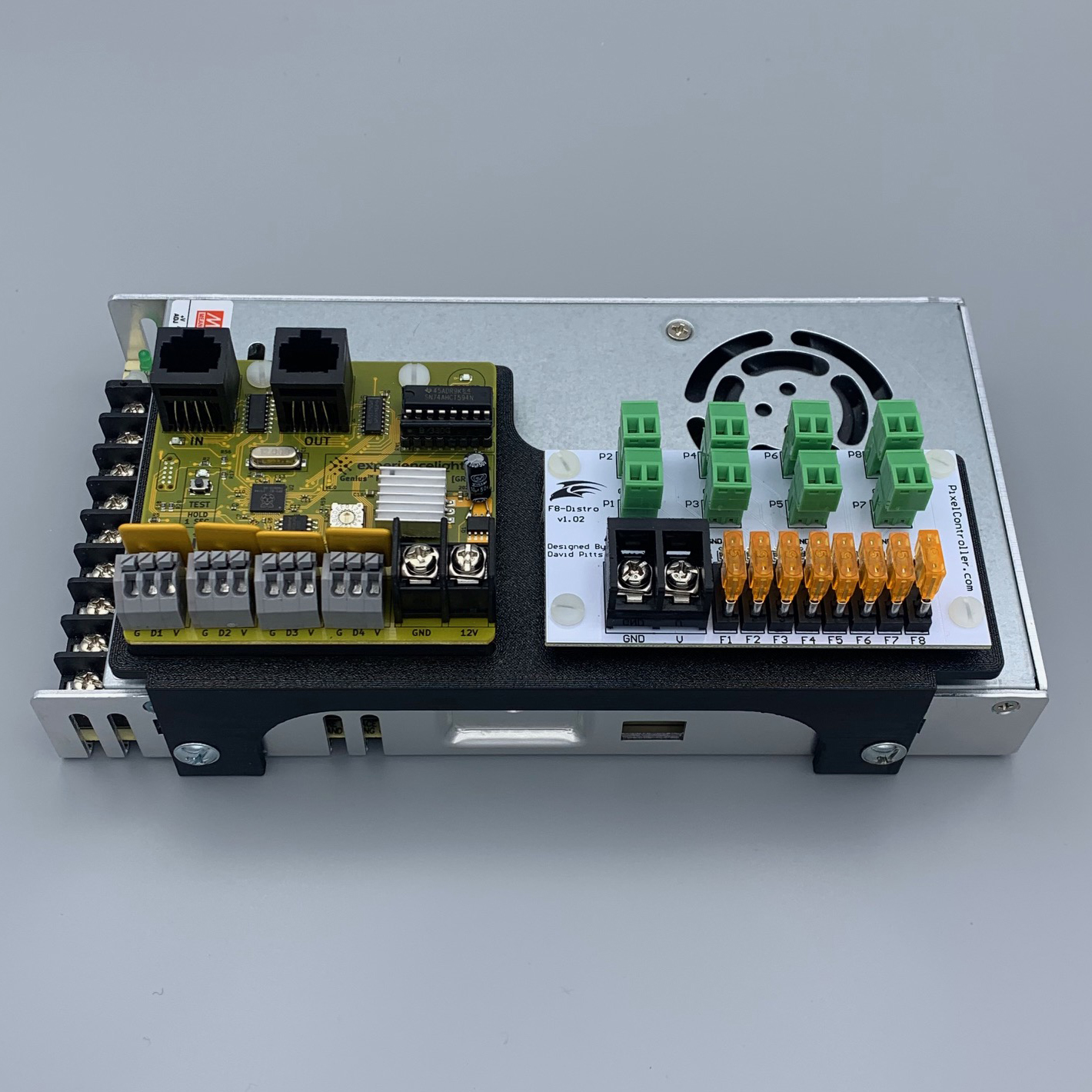

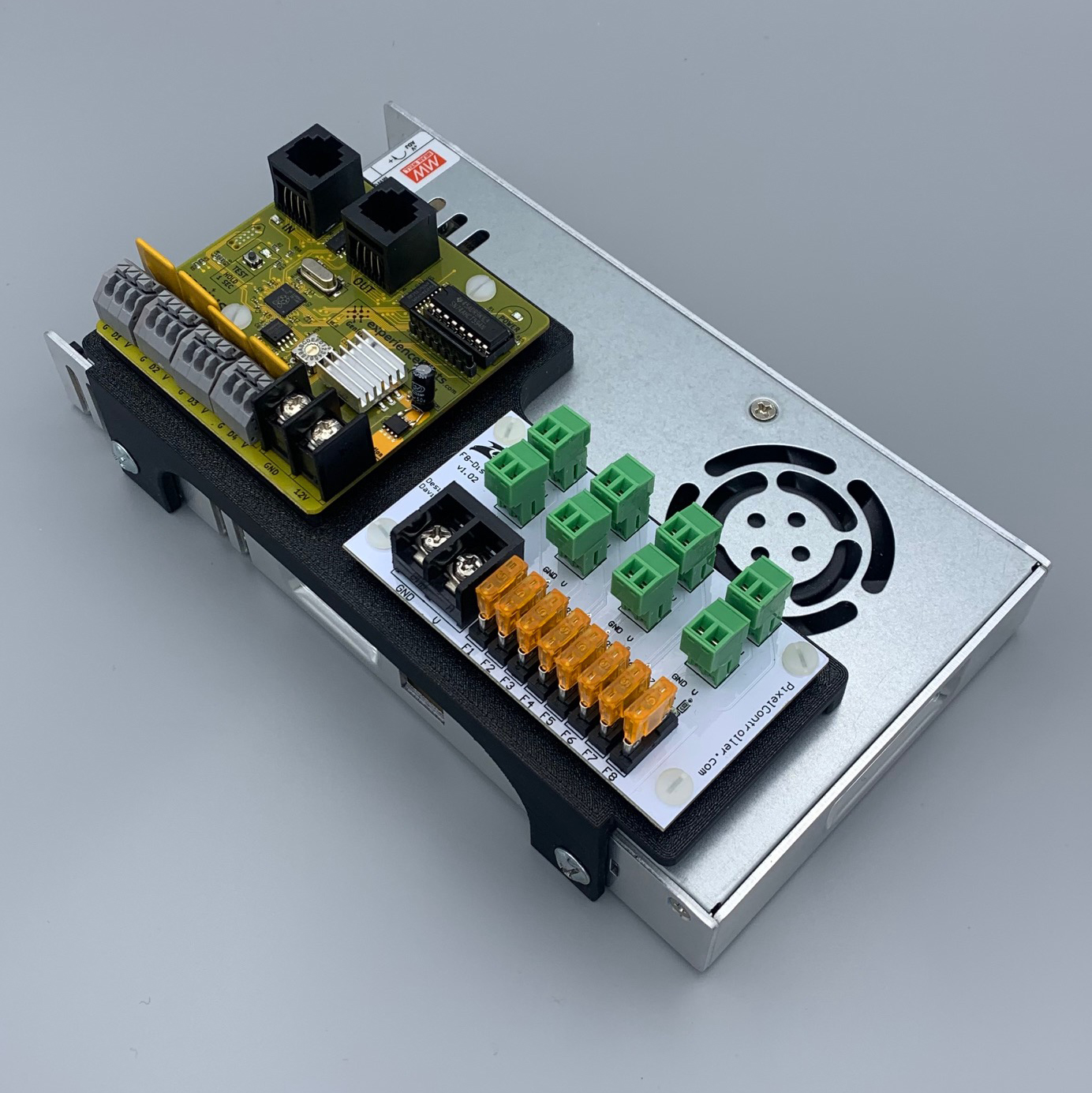

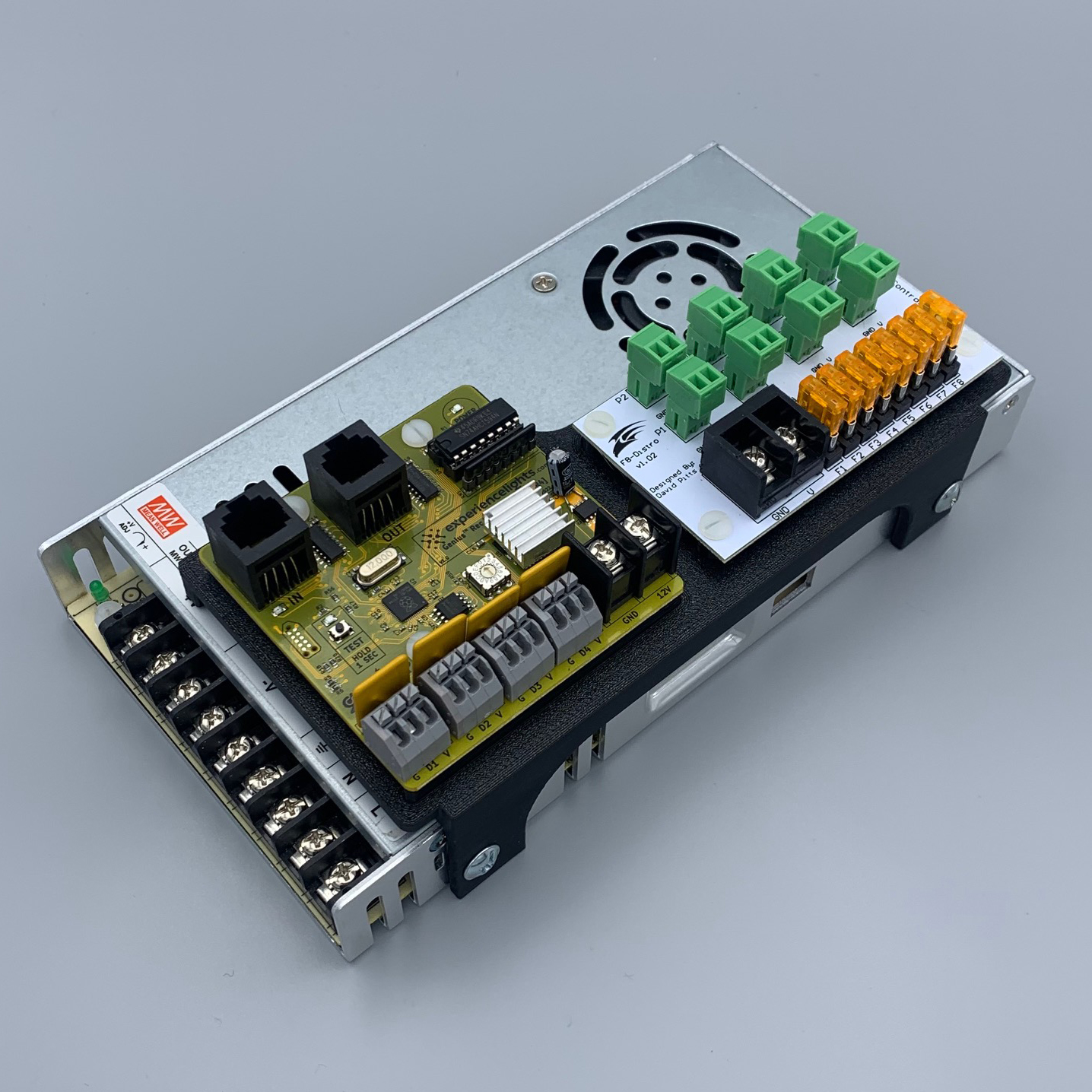

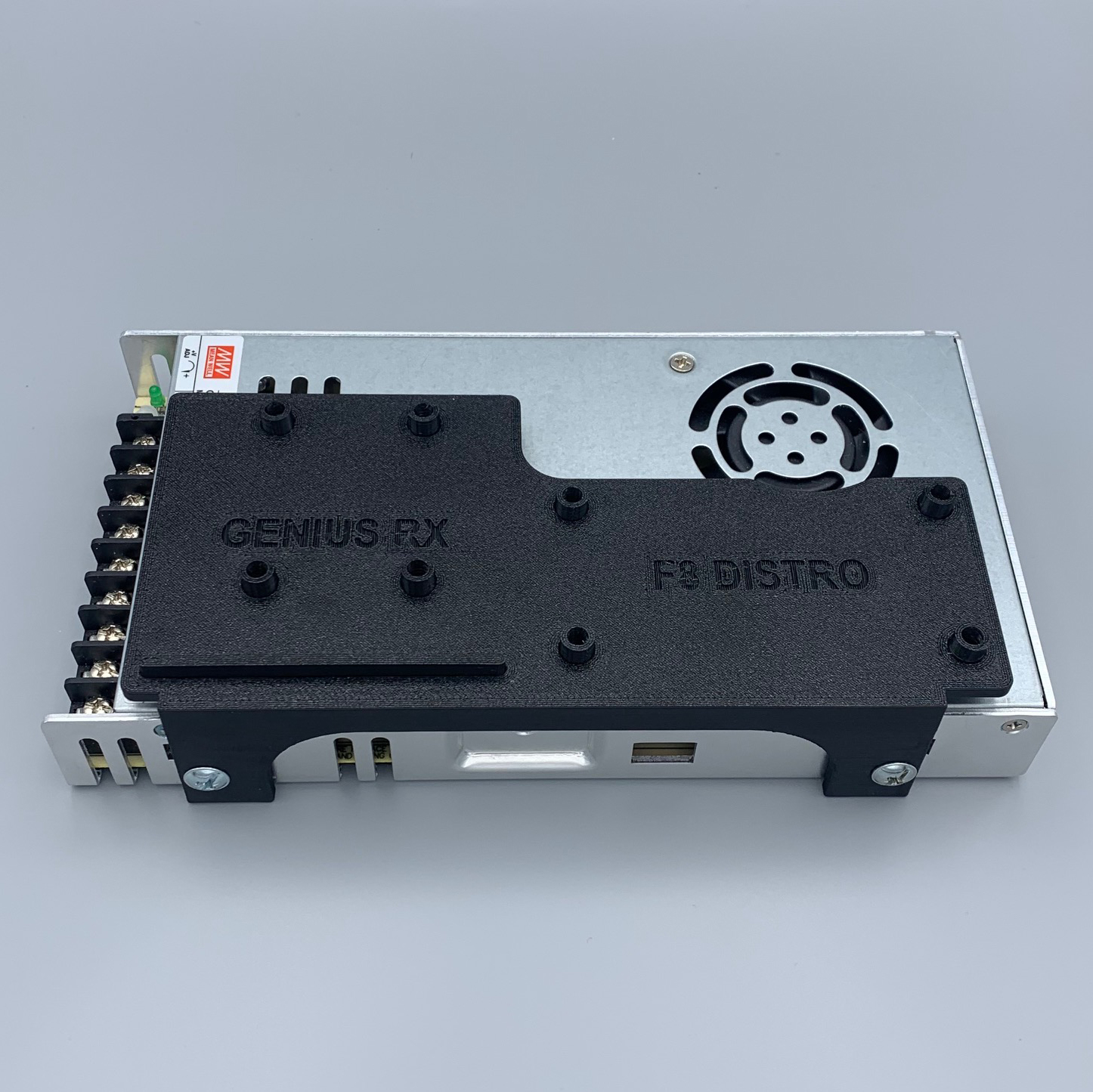

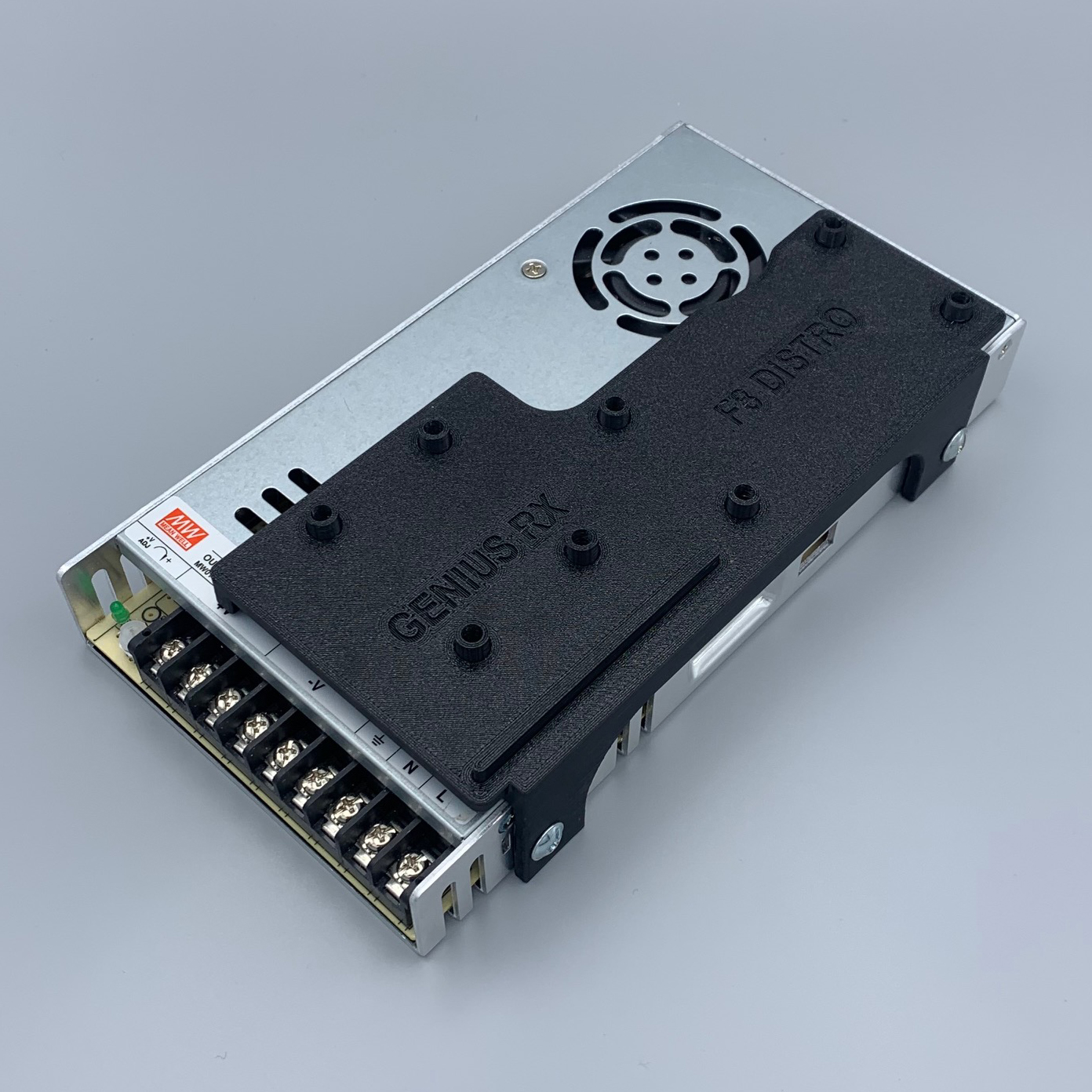

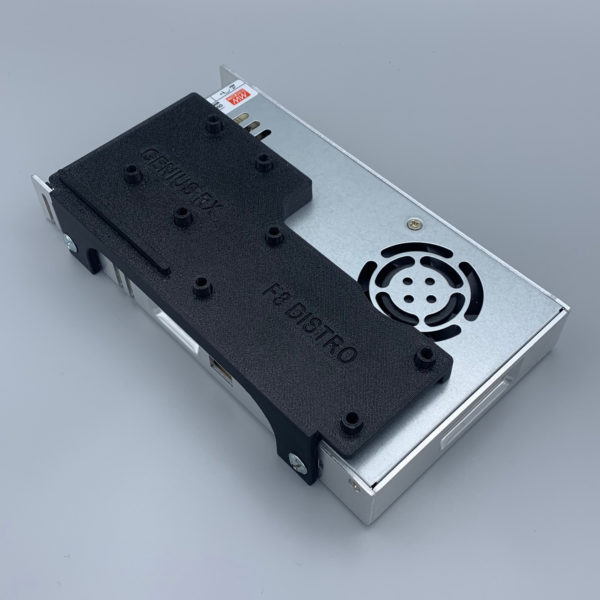

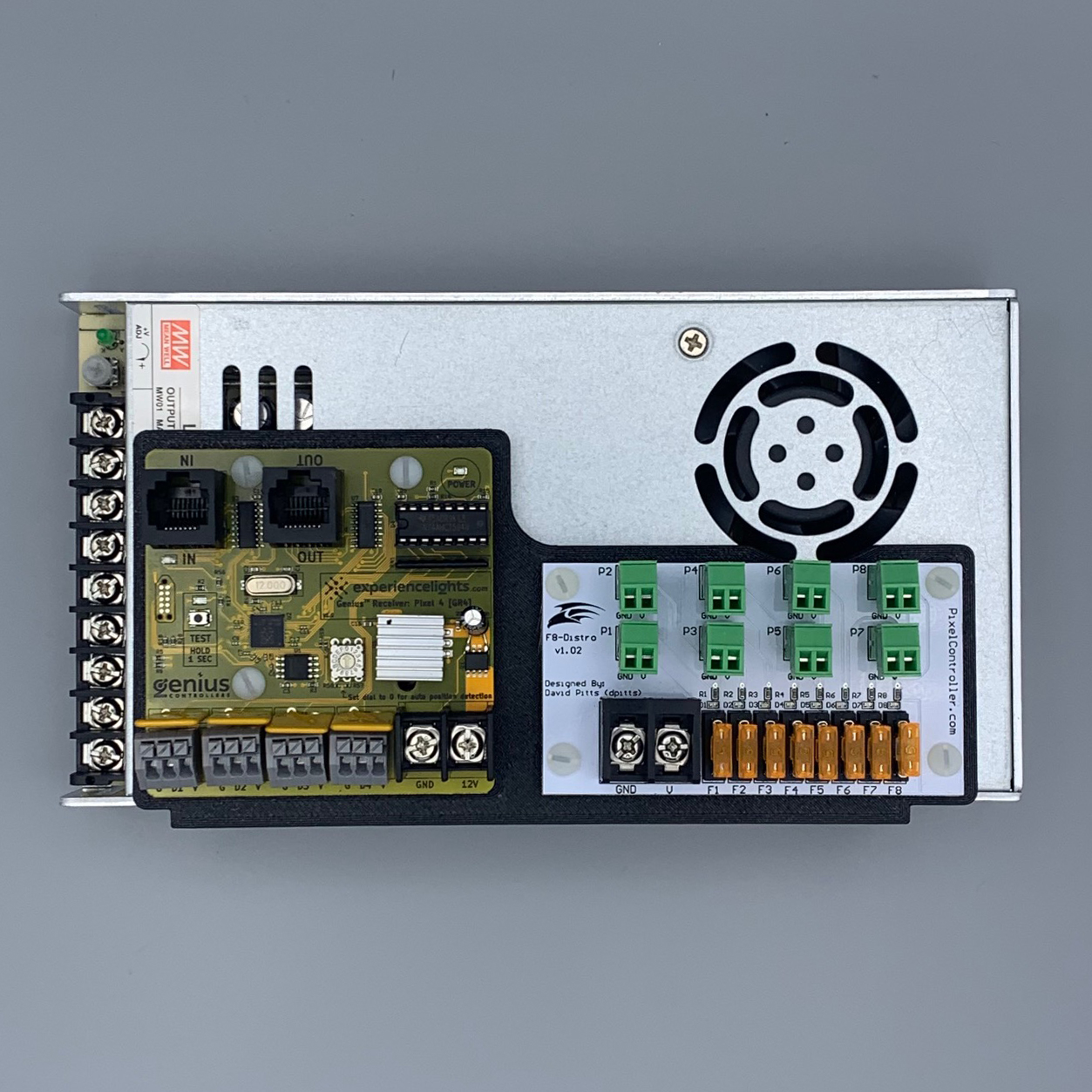

This mount attaches a four port Genius Receiver (GR4) from Experience Lights and a Falcon distro board v1.02 (or newer) to a Meanwell LRS 350 power supply. The mount features our new press fit standoffs and a special support bar that greatly reduces board flex when utilizing the spring loaded terminals on the Genius controller. These new press fit components lock into place and simplify installation as you no longer have to place and align the standoffs only to have them slide out of alignment when installing the board. They need to be printed separately from the primary mount and then aligned over the openings on the deck of the mount and then simply pressed into place until fully seated and secure. The controller mounting holes themselves will self thread and are sized for a 6-32 x 1/2″ screw. The mount then attaches to the side of the power supply using two M4 x 8mm screws. Compatible with our Ammo Box Mounting System v2 and Voltage Display Mounts. The 2022 and 2023 versions have different mounting hole locations and both versions are provided with the download.
Note: This is a digital purchase for STL files and not a physical product.
