Genius 16 Mount to Meanwell LRS 350 STL

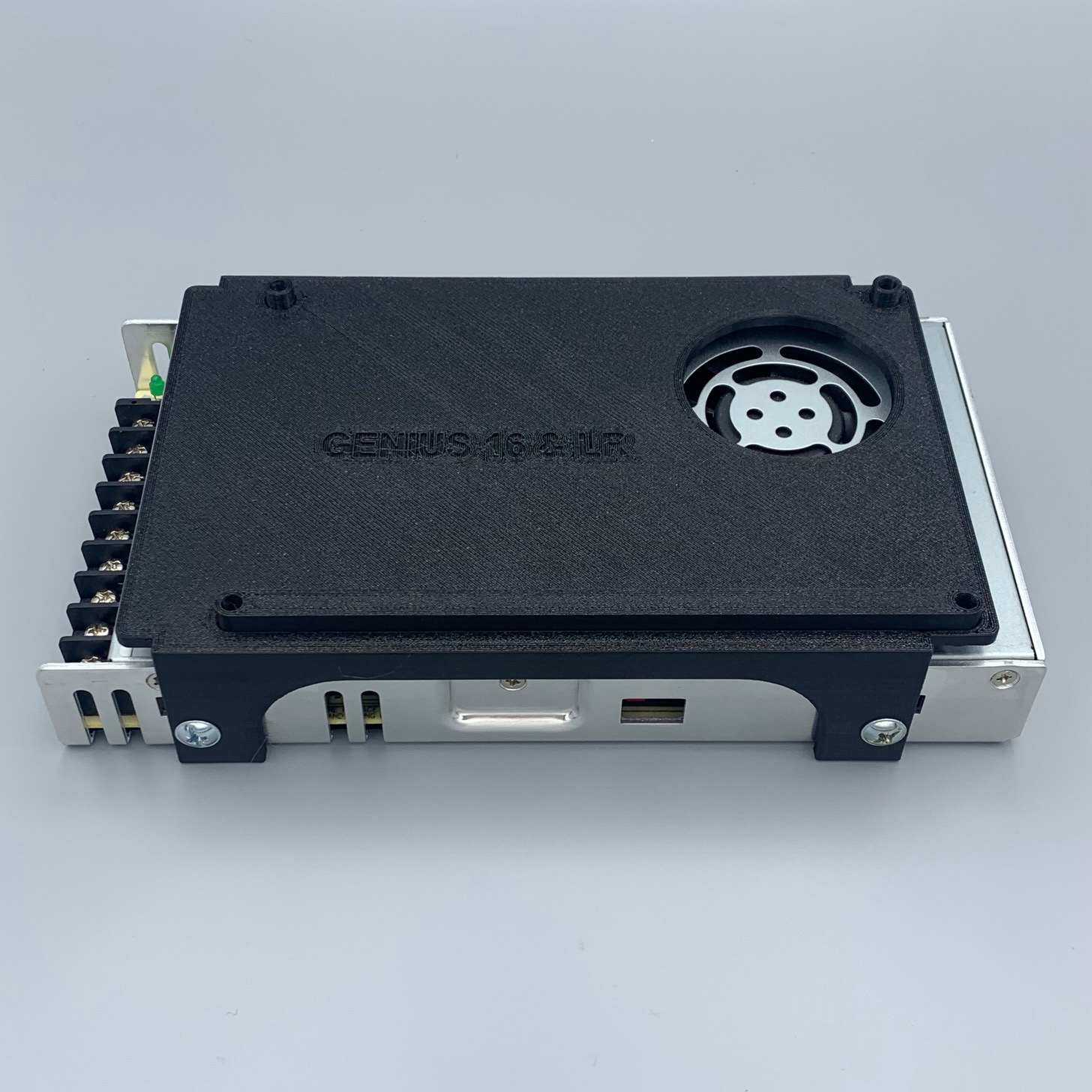

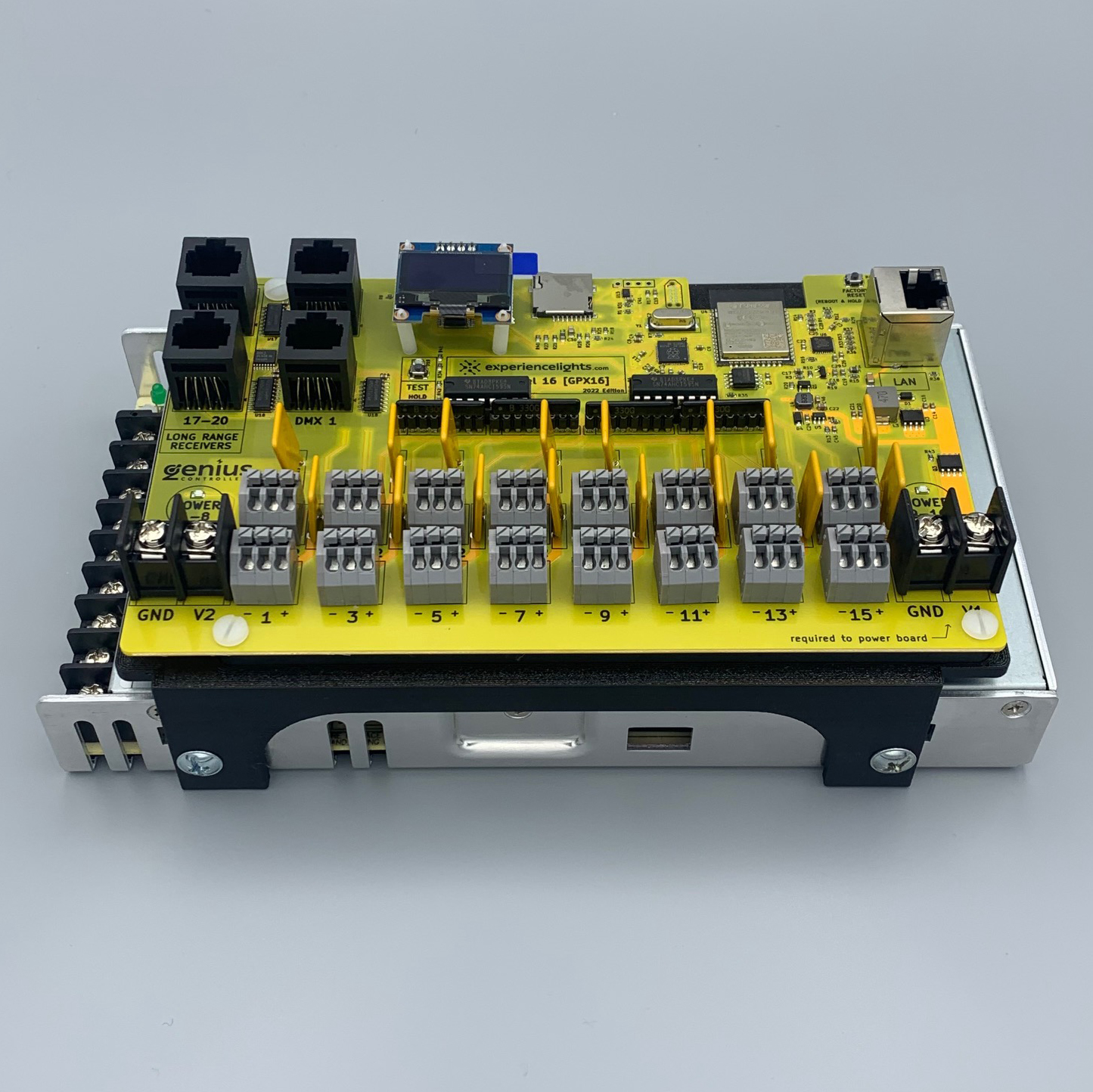

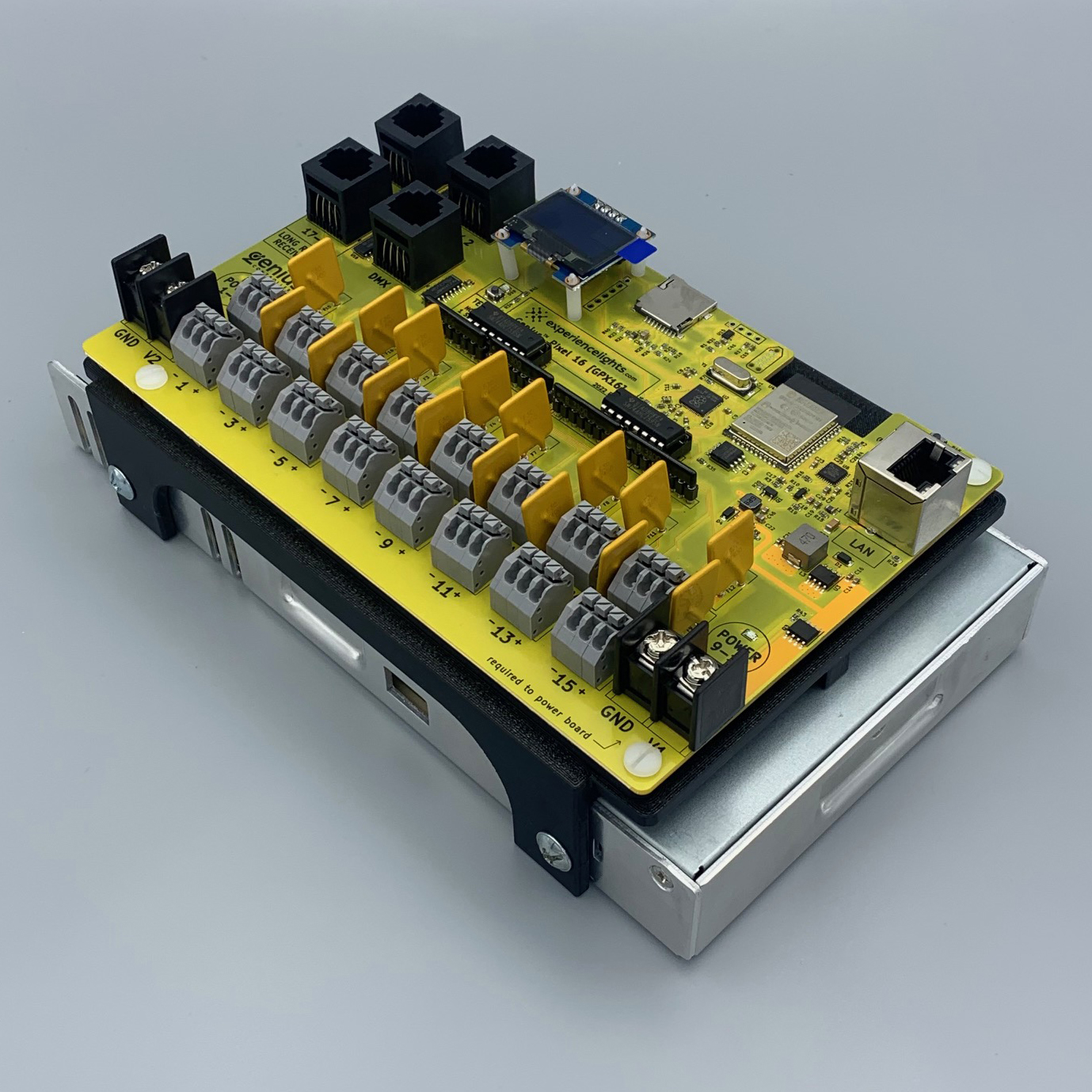

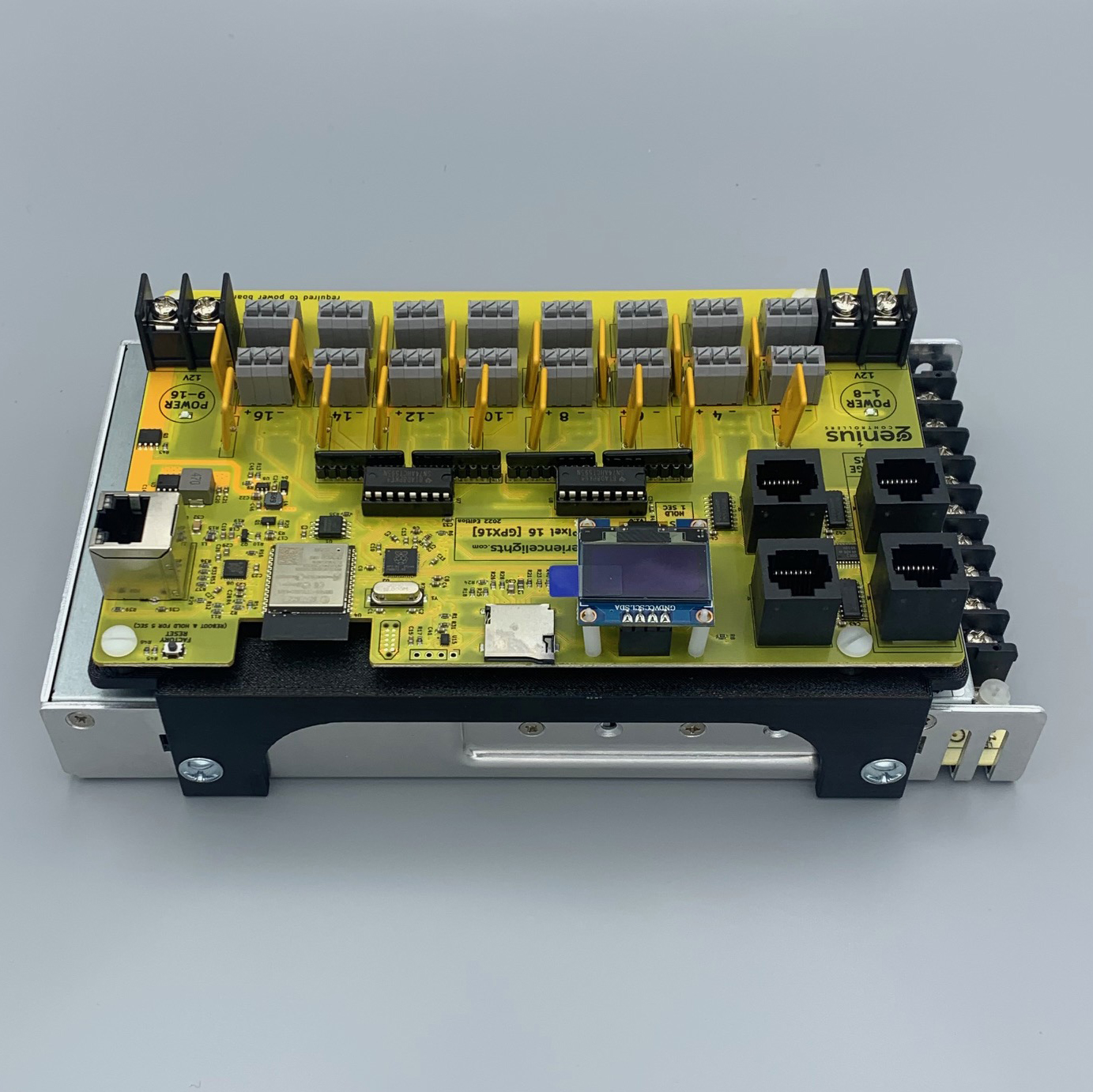

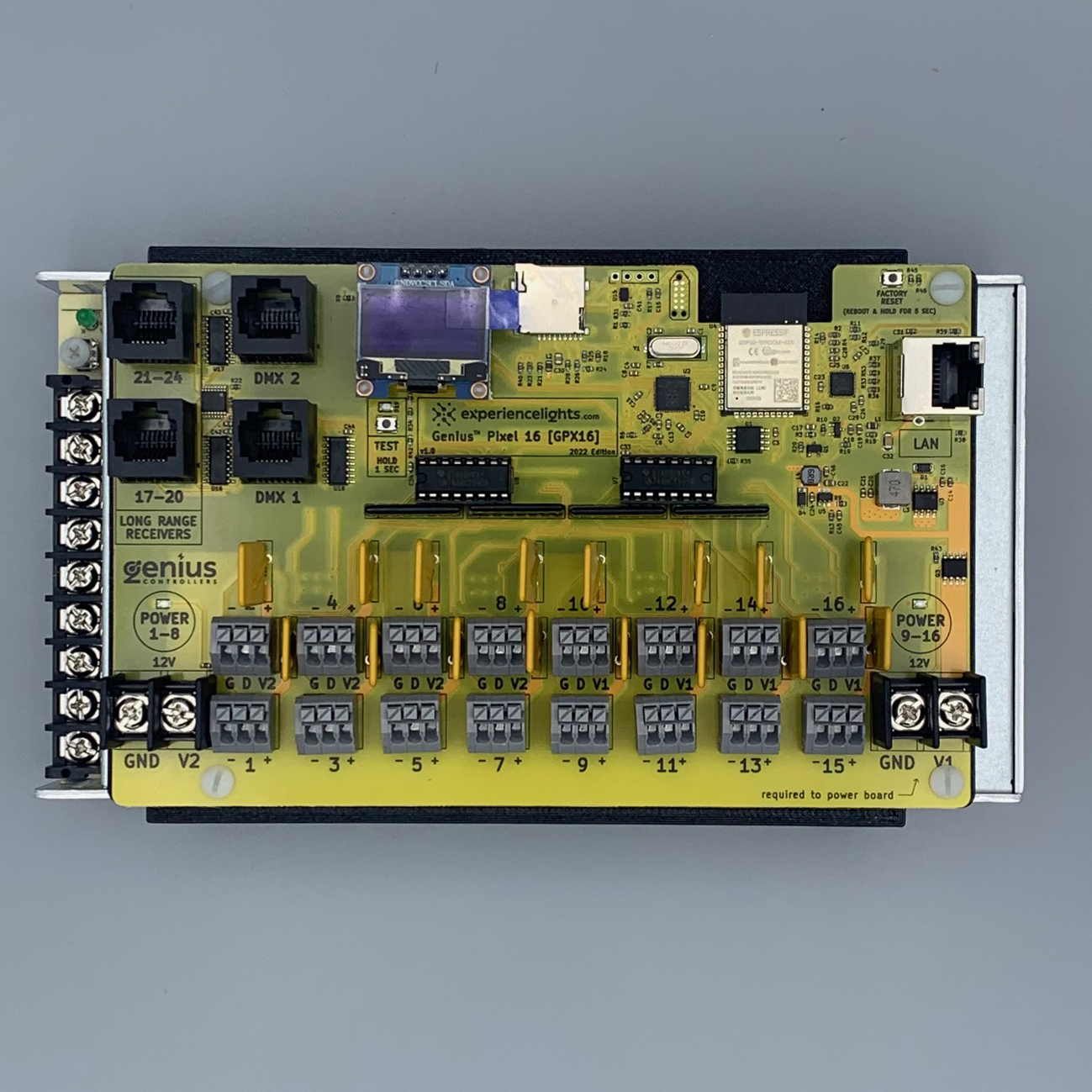

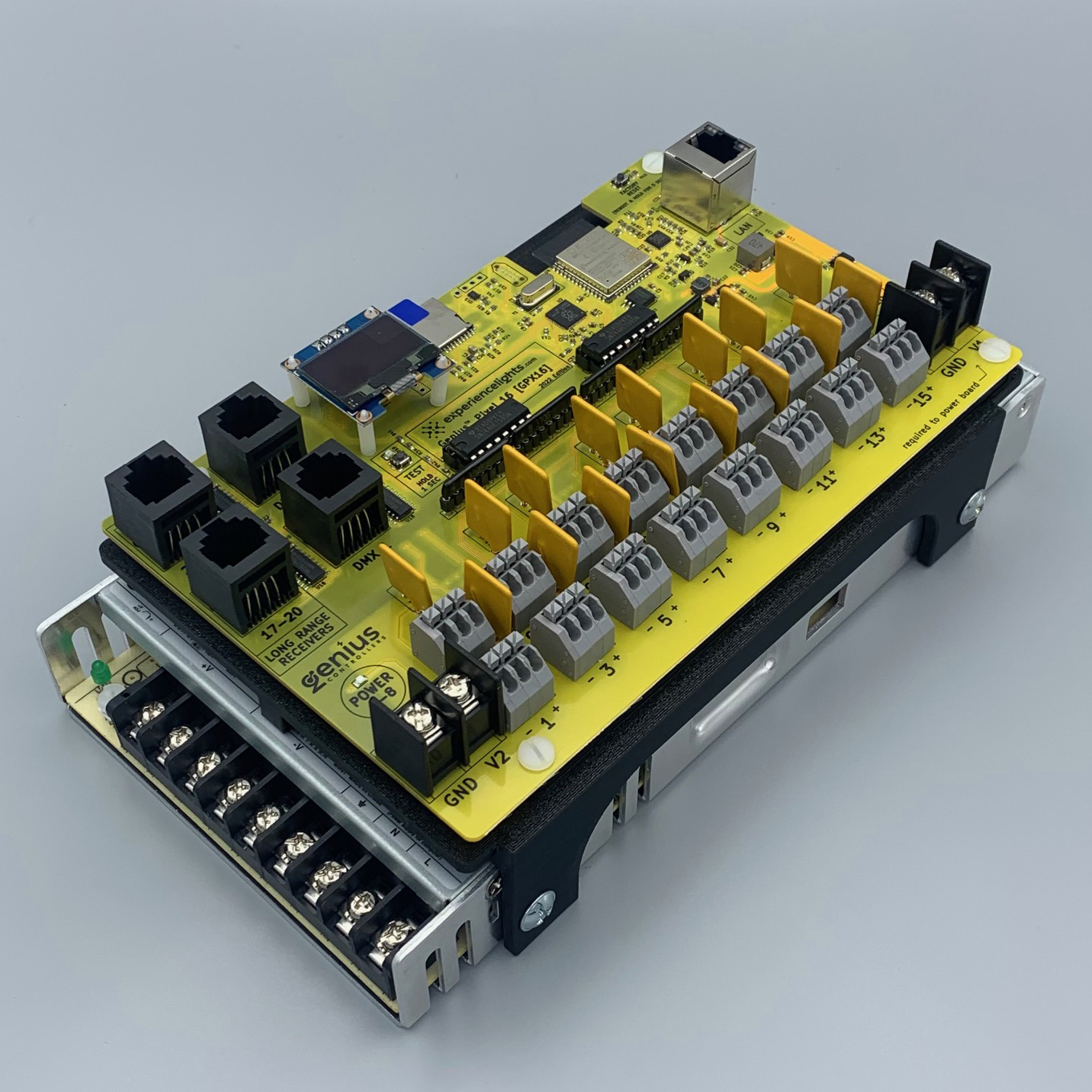

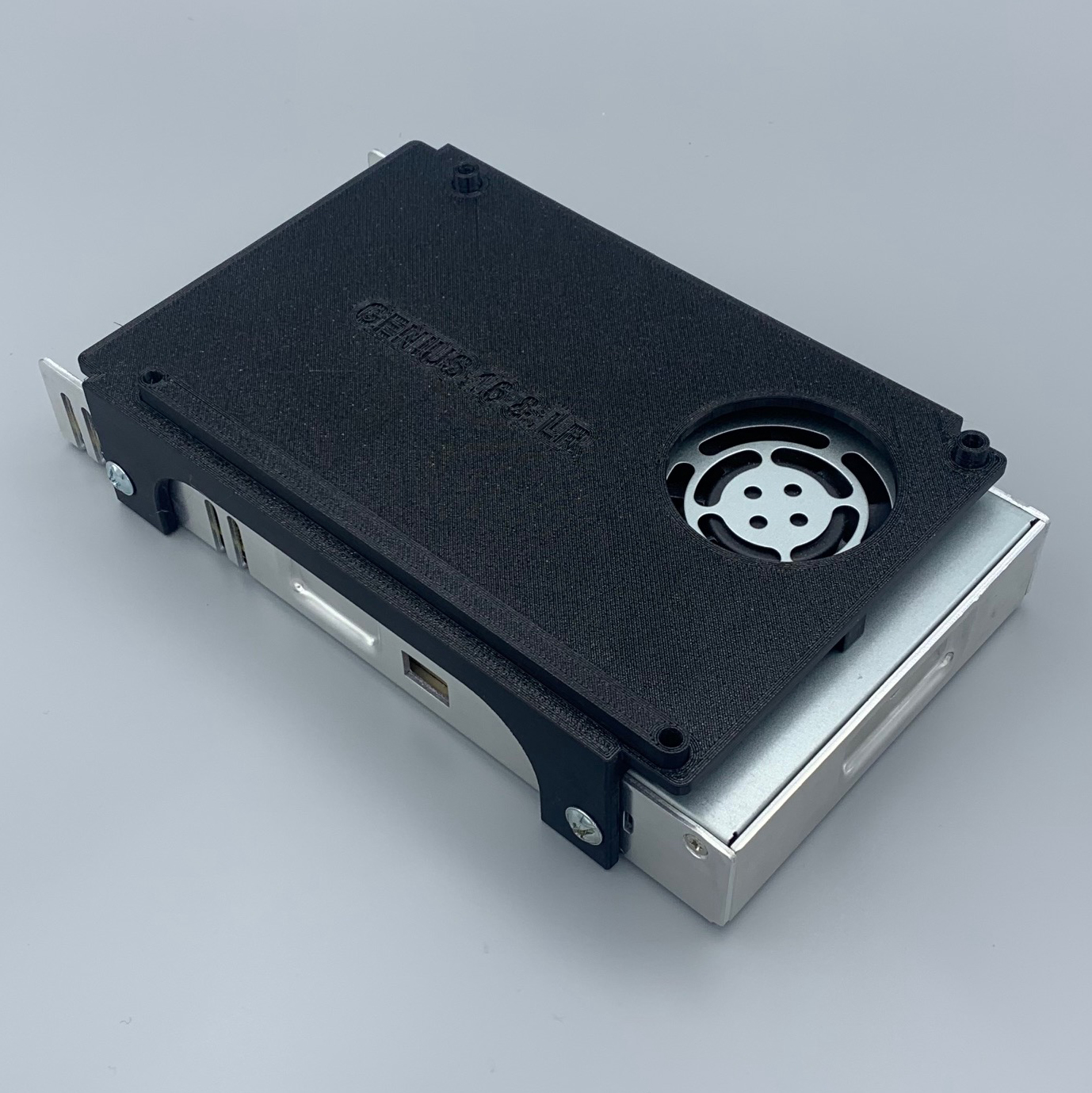

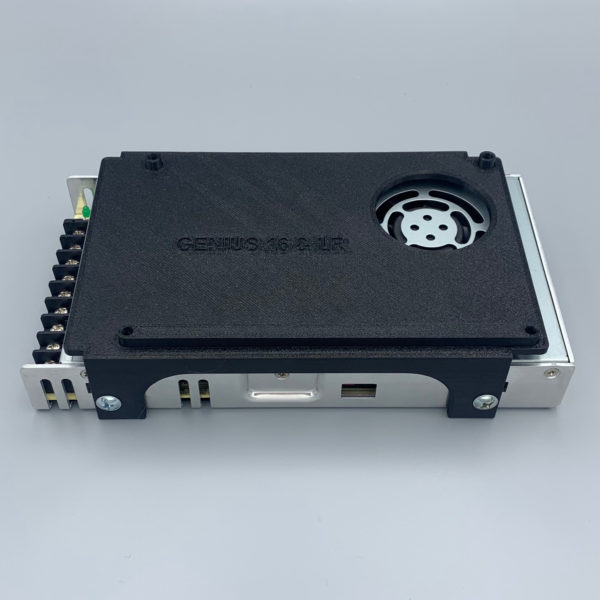

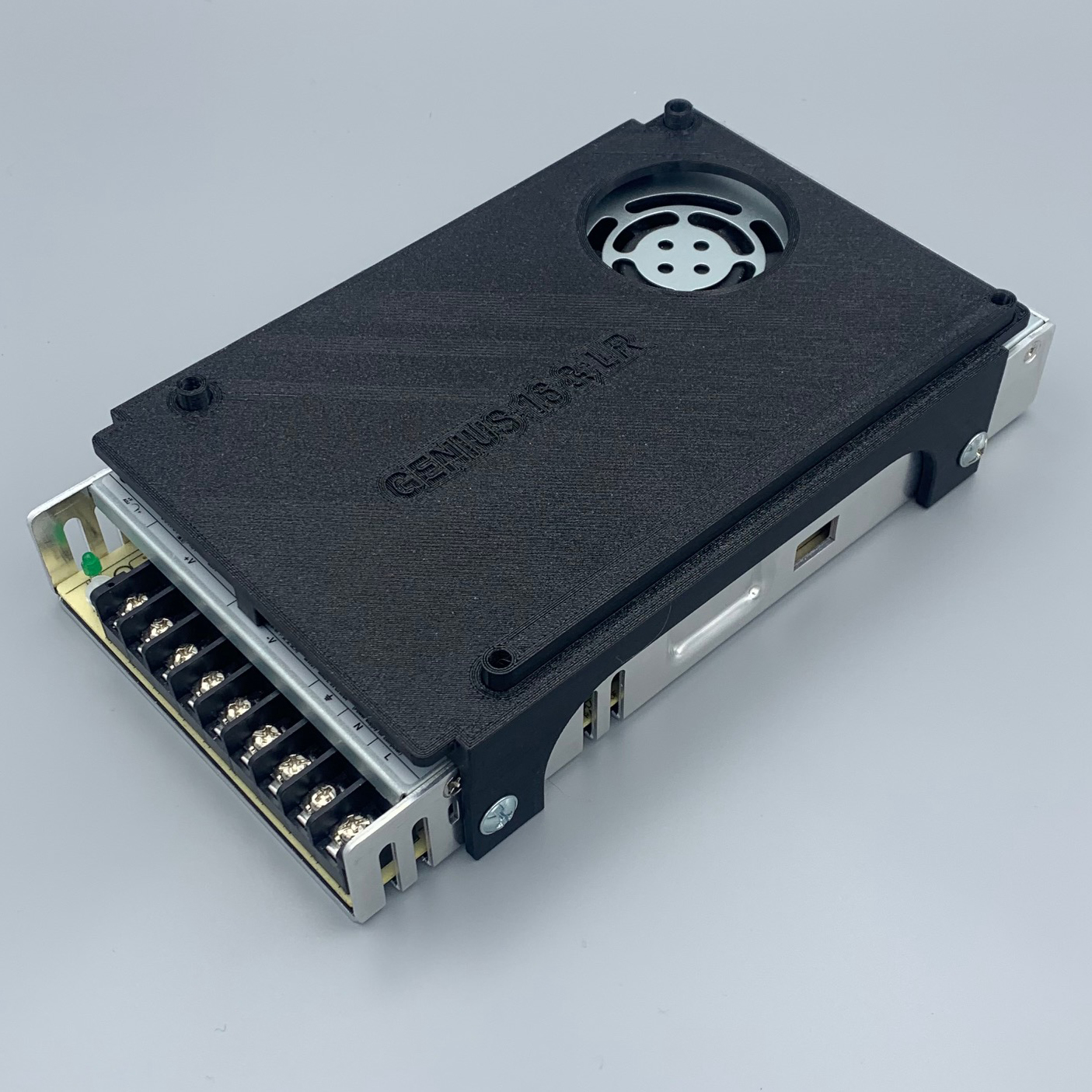

This mount is for applications where space is limited and attaches an Experience Lights Genius 16 pixel controller (GPX16) to a Meanwell LRS 350 power supply. The mount also fits the Genius Long Range Pixel Controller (GLR) and the Genius Long Range Pixel Receiver (GR16). The mount features our new press fit standoffs and a special support bar that greatly reduces board flex when utilizing the spring loaded terminals on the controller. These new press fit components simplify installation as you no longer have loose standoffs that can slide out of the way when installing the board. They need to be printed separately and then aligned over the openings on the deck of the mount and then simply pressed into place until fully seated and secure. The controller mounting holes themselves will self thread and are sized for a 6-32 x 1/2″ screw. The mount then attaches to the sides of the power supply using four M4 x 8mm screws and is compatible with our Ammo Box Mounting System v2. Due to the large size of the mount, this does partially restrict the fan on the power supply. However there is still clearance above the fan and the sides are open below the controller to allow airflow to pass. Add on volt meter and combo volt meters mounts do not fit on the mounting plate due to the large size.
