Fuzion Mount 20mm STL

$15.00

3D Printed mounting system for the Gilbert Engineering Fuzion 47″. The mounts provide a frame structure behind the coro to increase strength and allow mounting to various surfaces as well as provide rigidity to the prop after it has been slit in half for shipping. Due to the limited free space around the center of the Fuzion, these mounts are designed to be both bolted and zip tied to the prop for extra strength and are sized for 20mm conduit. The conduit is secured on each mounting post by using a 75mm M6 bolt that tightens against a nut that gets embedded to the bottom of the post. The bolt then continues through the front of the prop where it is secured again using a washer and another nut. This creates an incredibly strong post that will hold up to the weight of this prop. (See renderings for an example of how it all fits together) The center junction is made using a 25mm PVC cross which allows the smaller 20mm conduit to pass through utilizing included bushings file. More information listed below.

For those in the UK, the links below are where you can get the conduit and PVC fittings.

Link to Conduit

Link to PVC Cross

Note: This is a digital purchase for STL files and not a physical product.

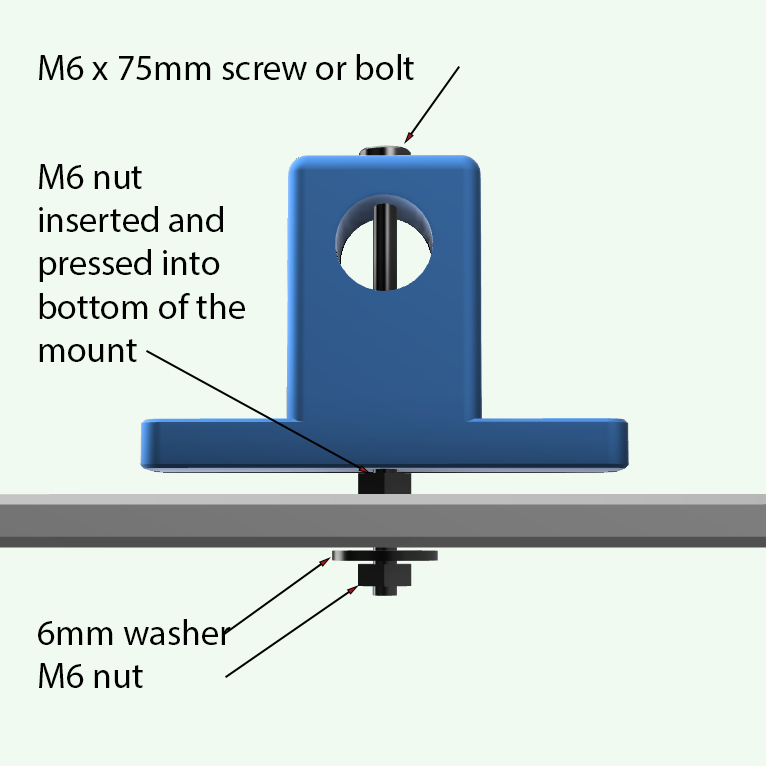

Because of the limited space to design mounts to fit along the center section of the Fuzion, the mounts are designed to be both zip tied and bolted to the coro. It is essential that the center mount be bolted through to the front of the prop to add sufficient strength and it is recommended to do so on the outer mounts, but those are less critical. At each of the 8 post mounts you will need a 75mm long M6 screw or bolt, (2x) M6 nuts and a 6mm washer in addition to zip ties. (If you choose not to run the bolts to the front of the prop on the outer mounts, you will use a shorter a 60mm long M6 screw or bolt and one M6 nut at each post) Start by embedding the M6 nut into the bottom of all the mounts. The easiest way to insert them is to temporarily insert the bolt from the top of the mount and thread the nut onto the bolt. As you tighten the bolt it will pull the nut into the mount. You can then mark on the prop where to make the holes for both the zip ties and for the M6 post mount bolt to go through the coro. While the prop may look symmetrical at first glance, there is a specific top, bottom, left and right as the pixel patterns are not the same at each of the points. If your prop does not have the wiring diagram printed on the back side, you will have to pay very close attention to the correct orientation using the xLights model. After the holes are made on the coro you can zip tie the mounts to the prop. Insert the conduit into the mounts and mark where the holes need to be drilled for inserting the bolts through the mounts. If your prop was slit in half for shipping, it’s always best practice to run the continuous piece of conduit perpendicular to the slit. Next drill 6mm holes completely through the conduit at all the hole locations. Glue the bushings into the PVC cross using epoxy or super glue and then feed the conduit into the mounts with the completed PVC cross in the center. At each post you will insert the bolt from the top of the mount and tighten it against the embedded nut at the bottom of the mount. Just careful not to over-tighten or you could crack the mount. The excess length of the bolt should now be sticking out of the front of the prop where you will insert the washer and another M6 nut and tighten that down until it fits snug.
