|Falcon Receiver Version||
v1.xx (red or white), v2.xx or SRx1 (blue or black)
Dual Falcon / BBB Receiver Mount to Meanwell LRS 350 STL

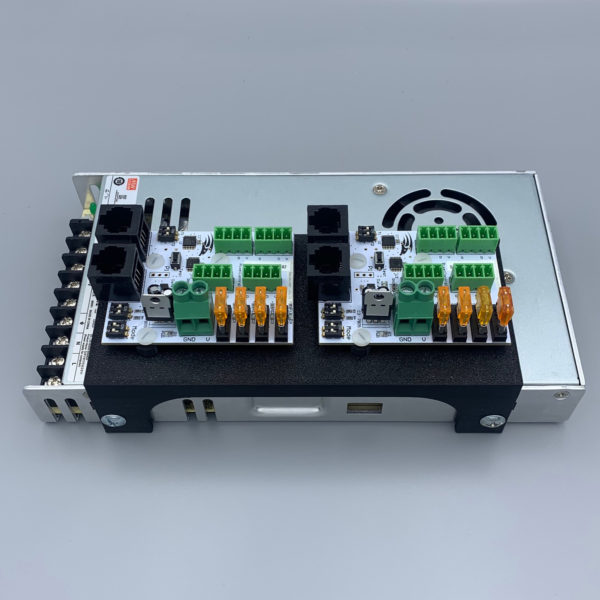

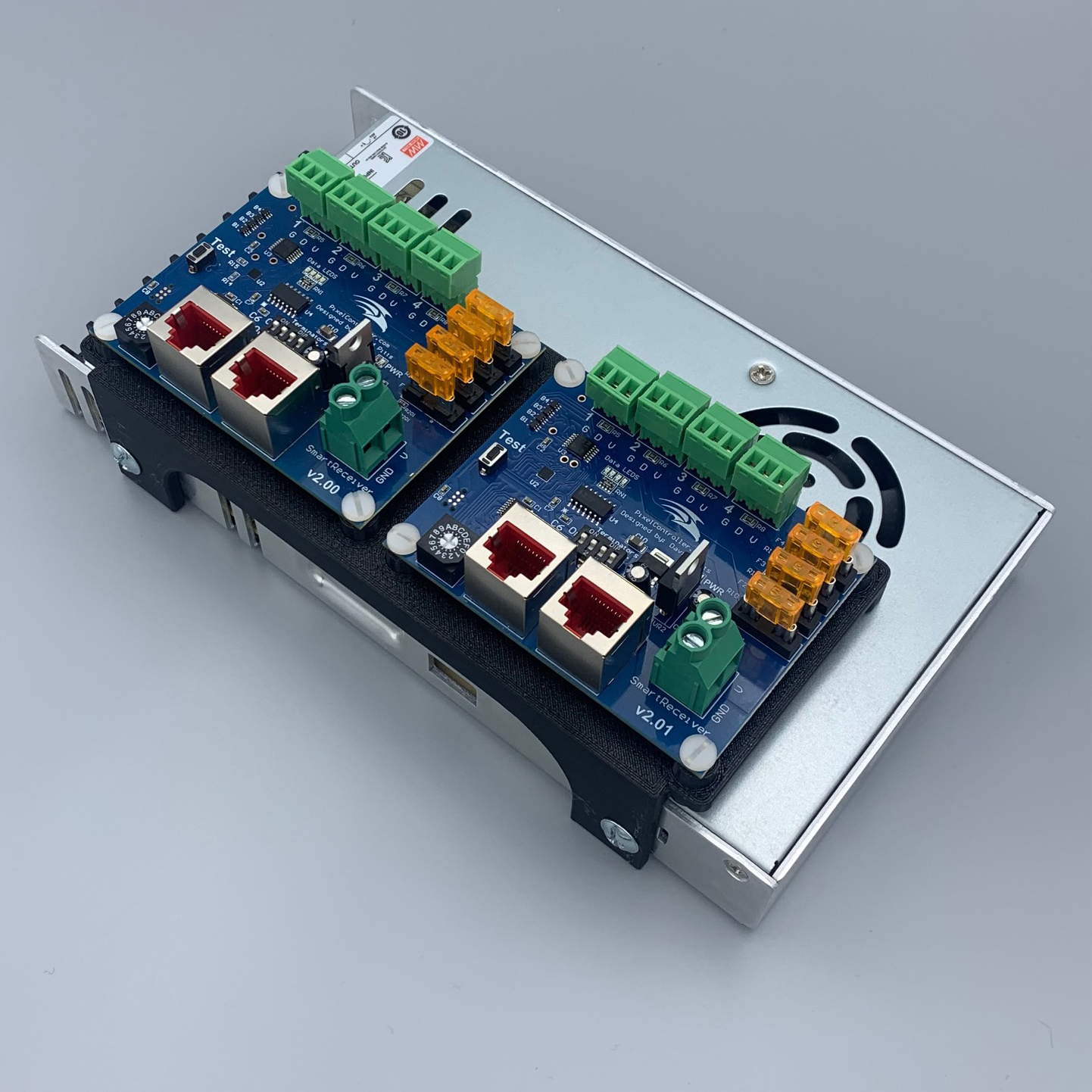

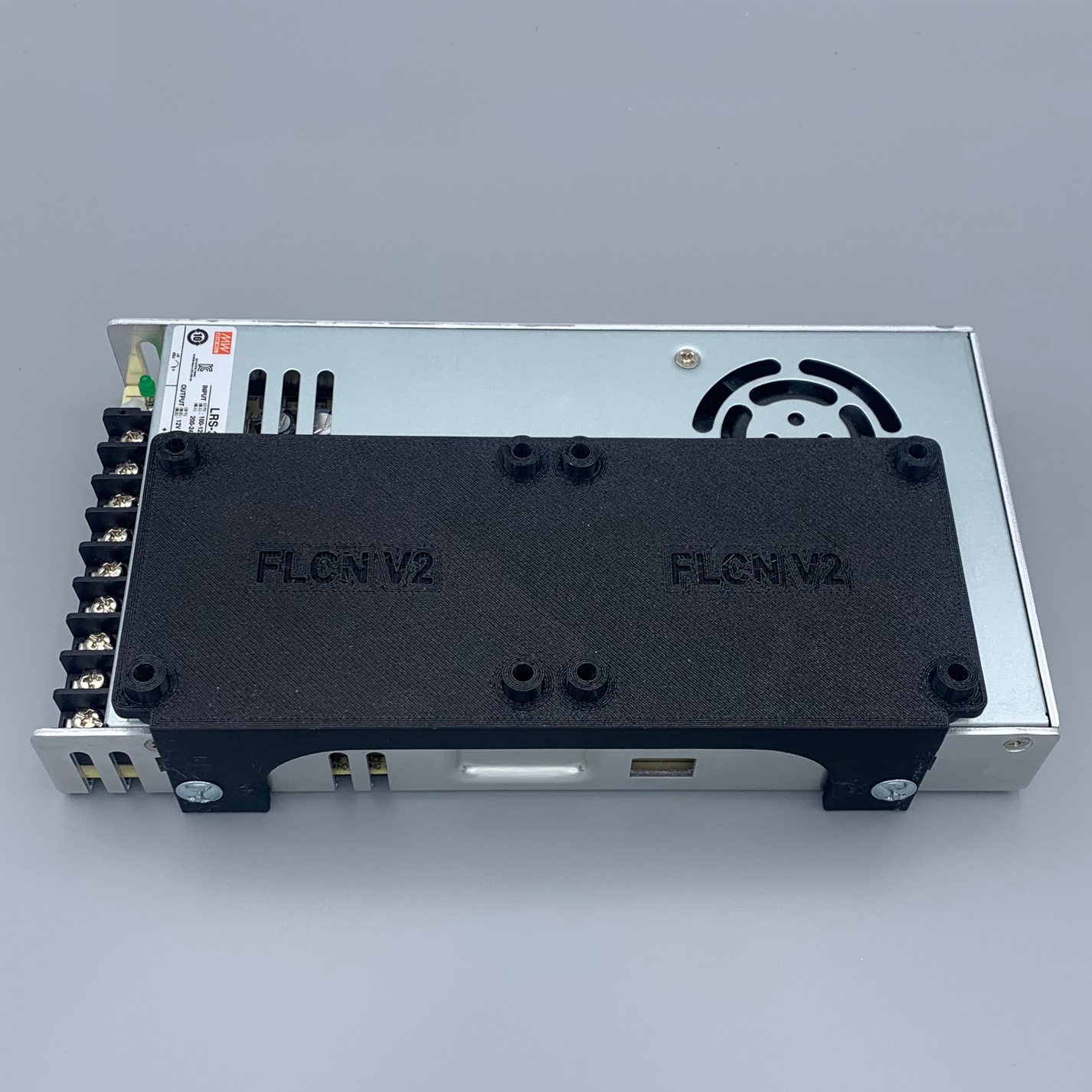

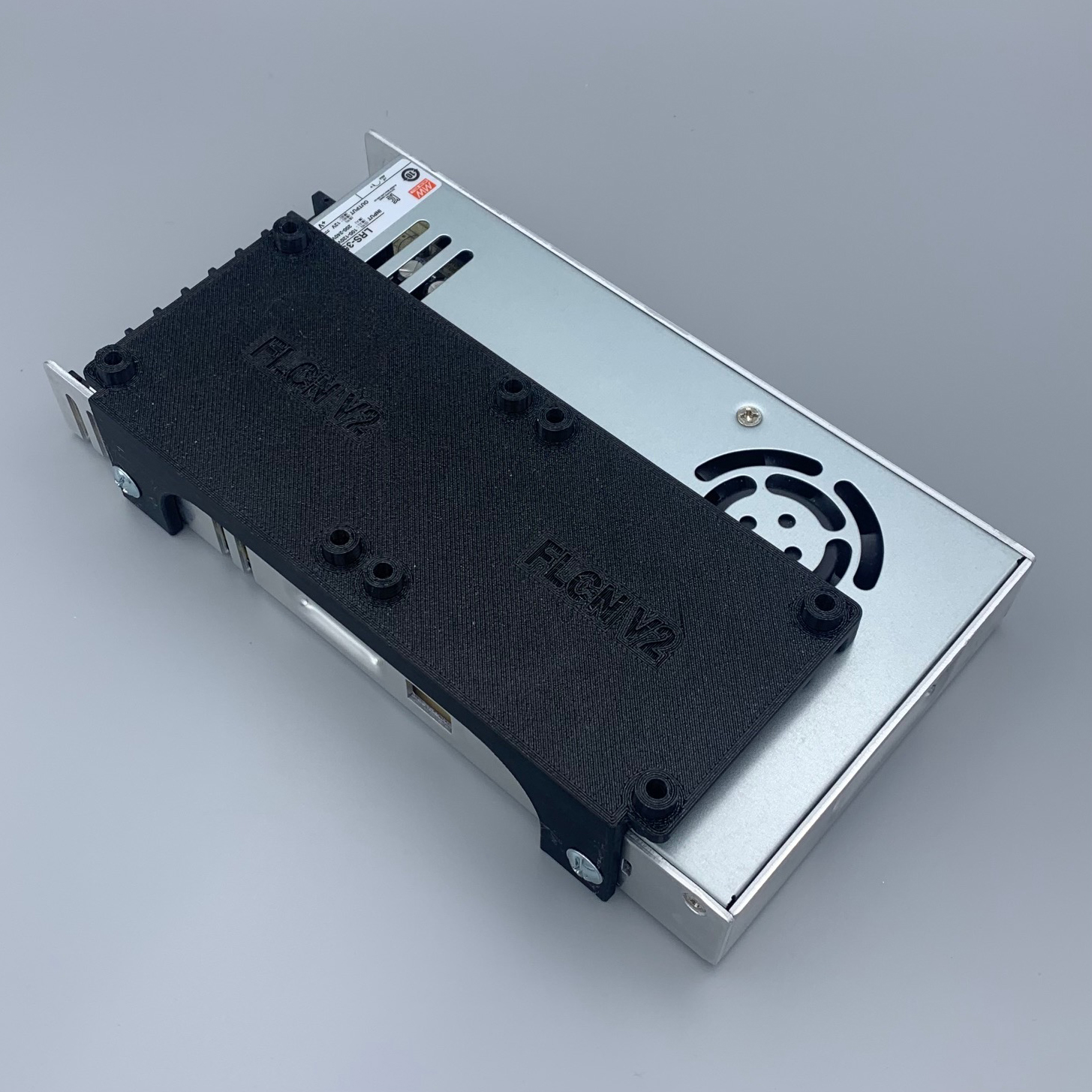

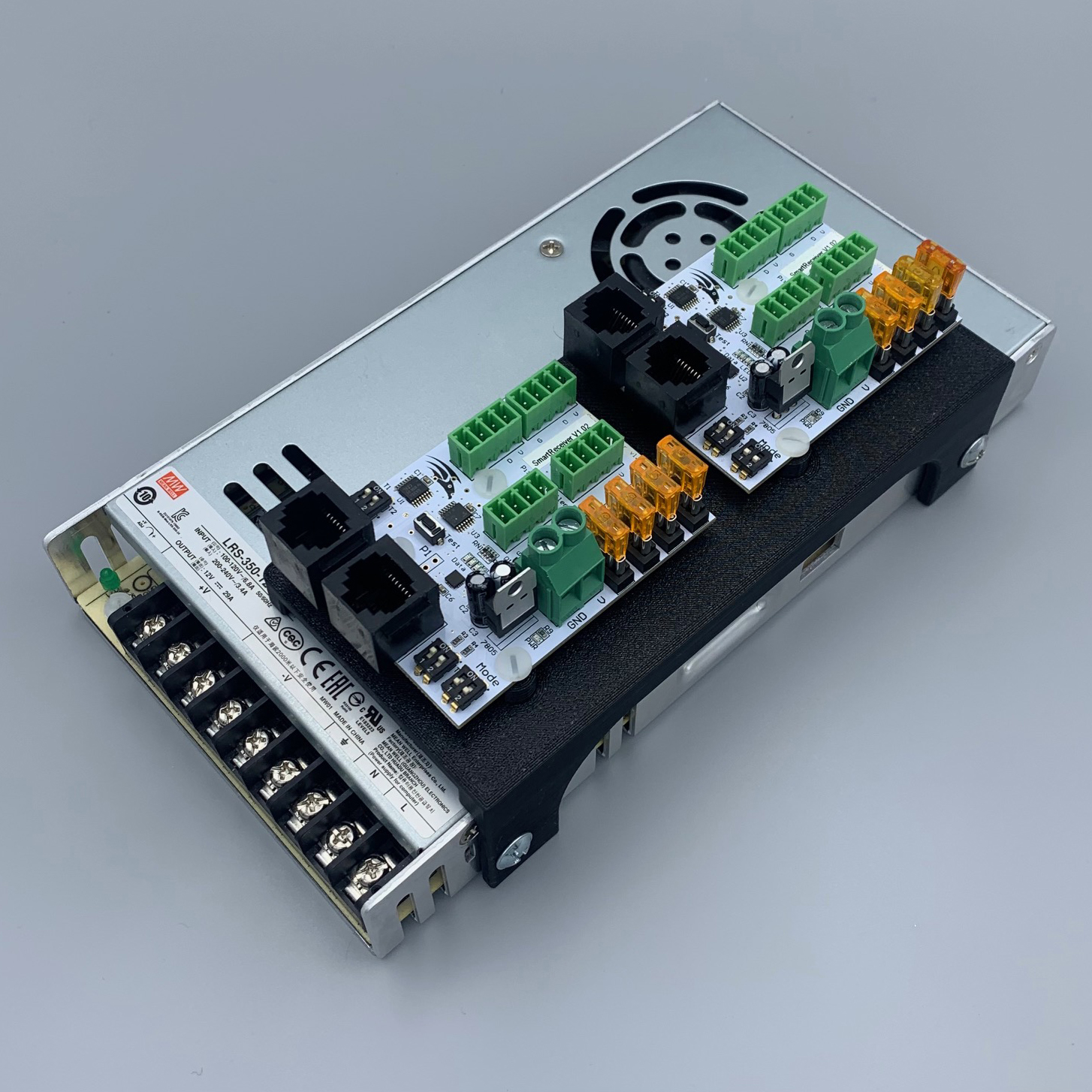

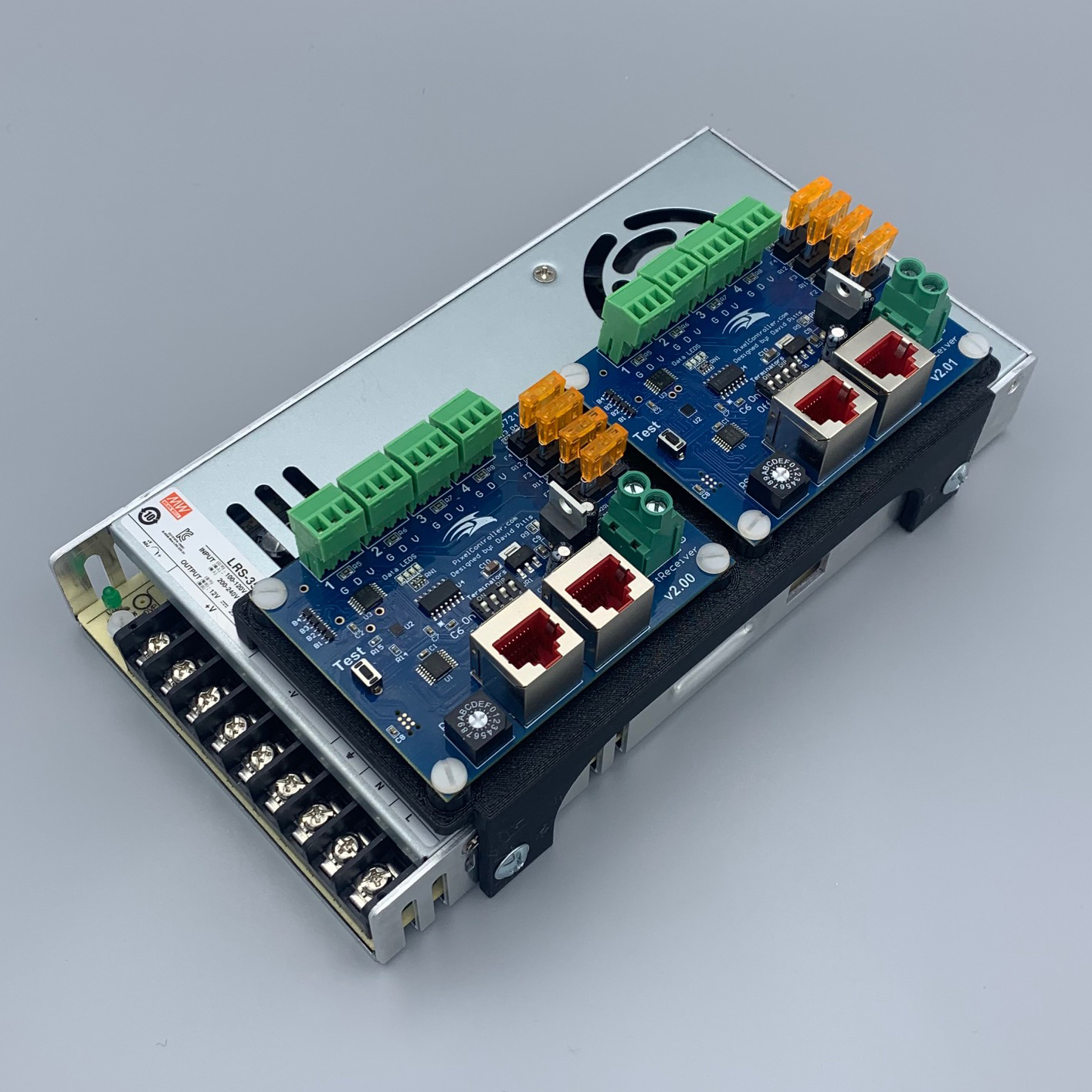

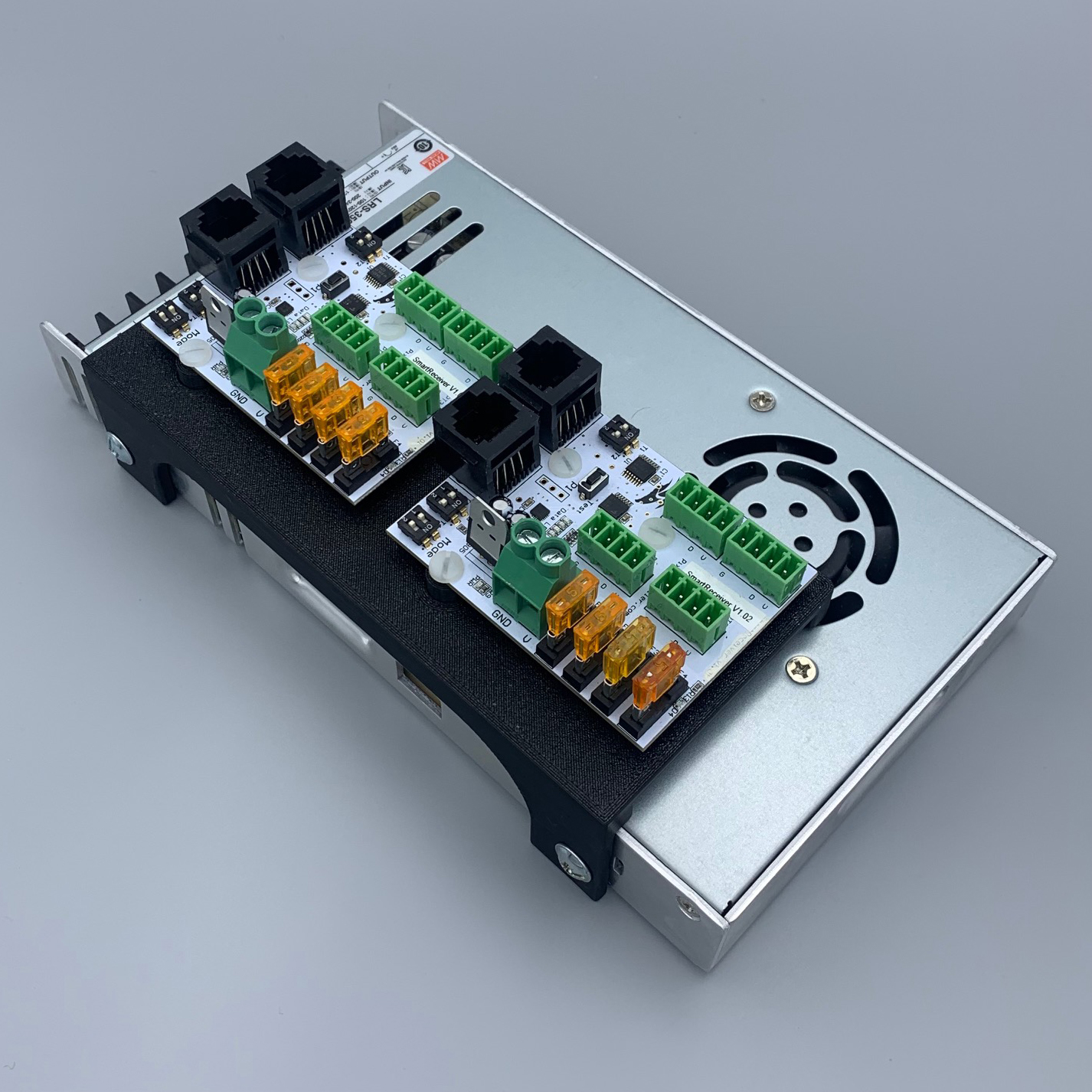

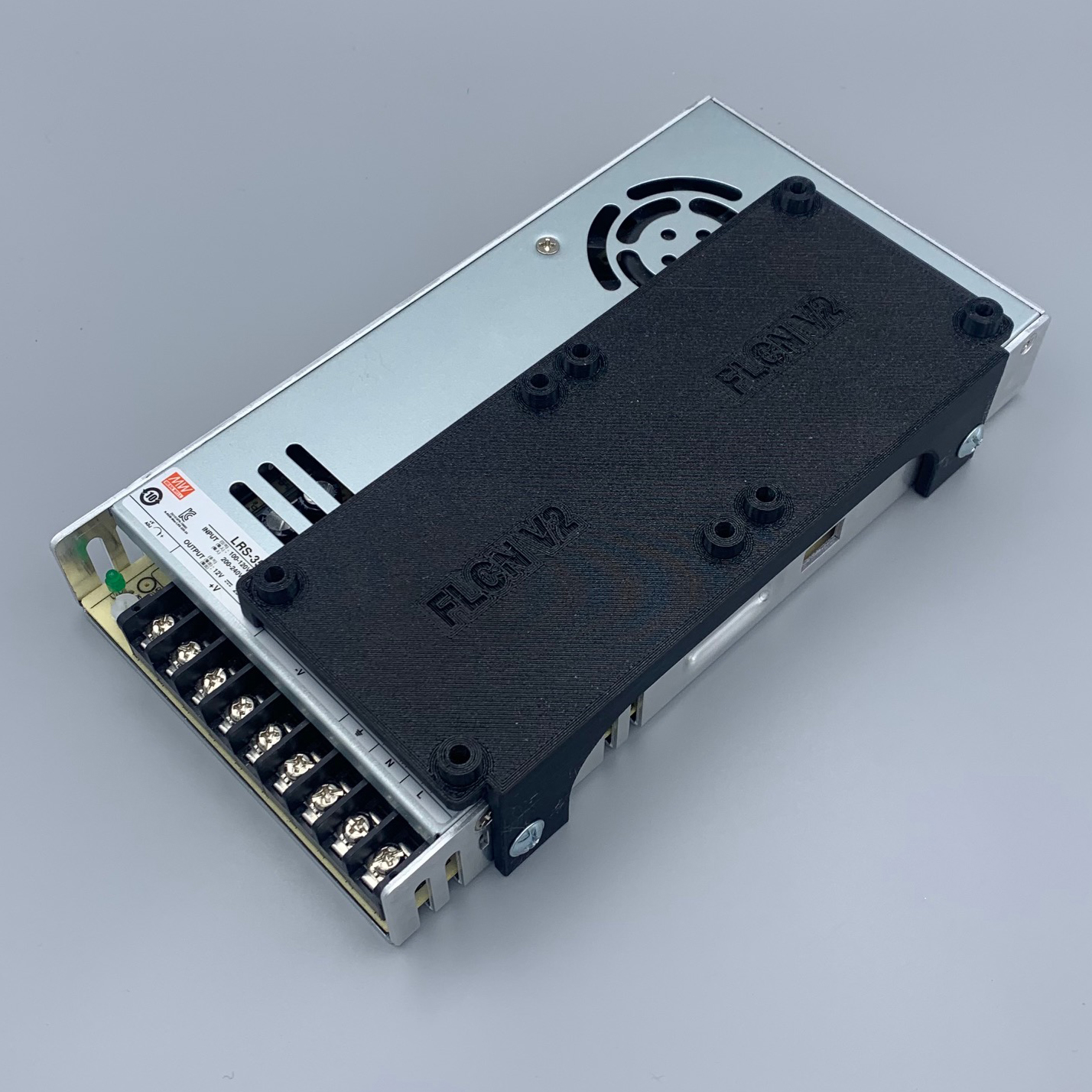

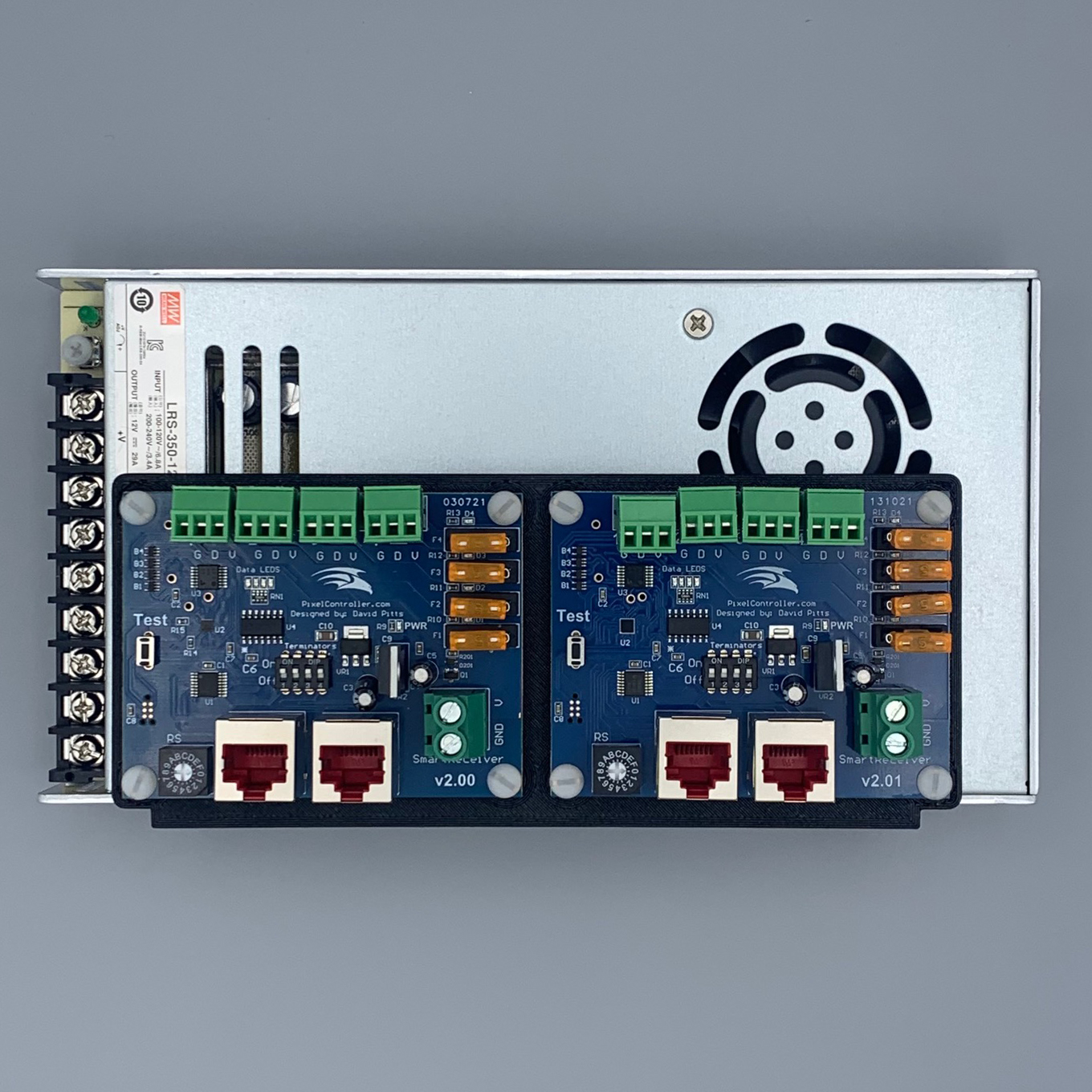

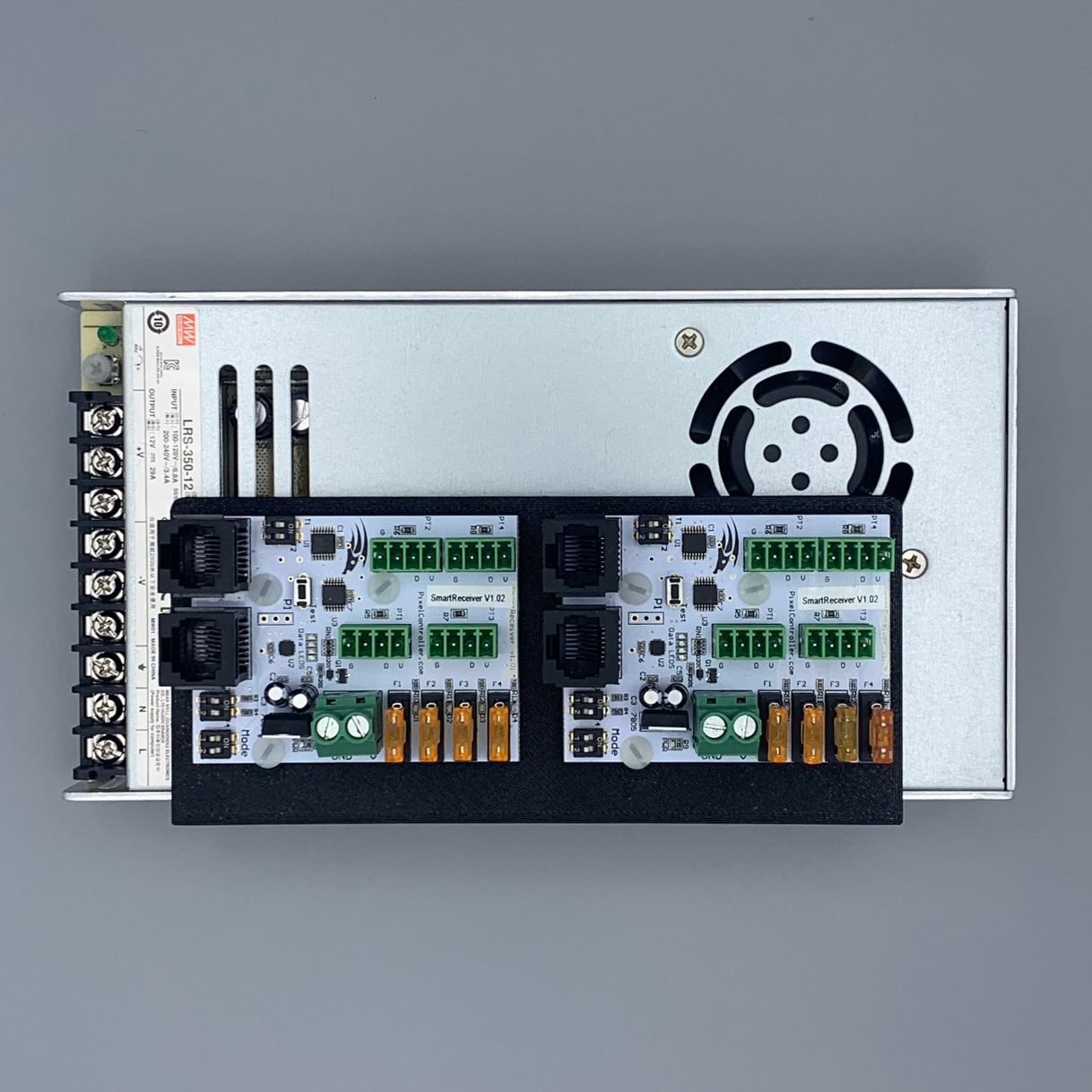

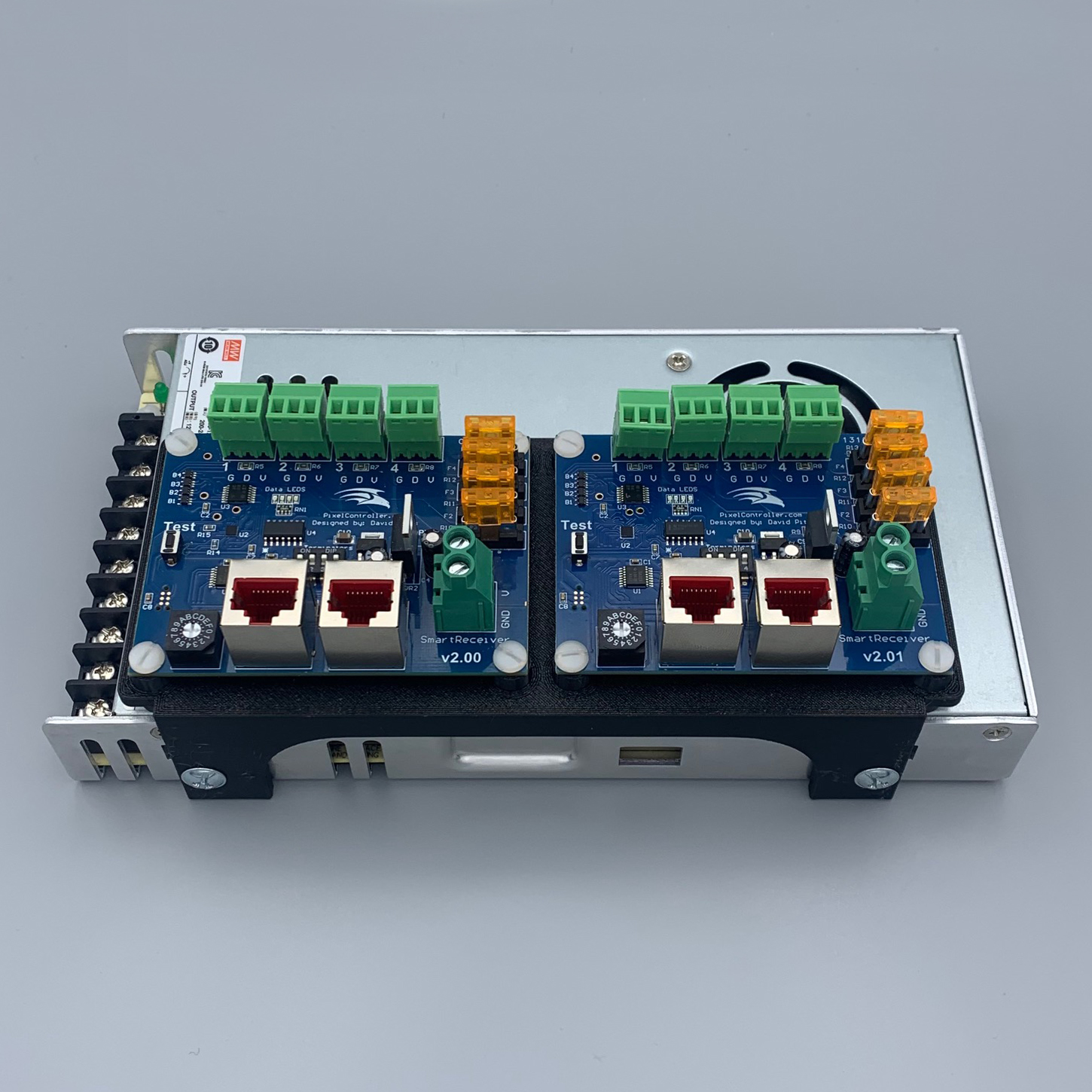

This mount attaches two Falcon 4 port receivers to a Meanwell LRS 350 power supply. (Note: The Falcon Smart Receiver SRx1 v4.xx as well as the v5.xx and the BBB Smart Receiver v2 from Kulp Lights is the same mounting profile as the Falcon v2.xx receiver.) The mount features our new press fit standoffs which lock into place and greatly simplify installation as you no longer have loose standoffs that can slide out of the way when installing the board. They need to be printed separately from the primary mount and then aligned over the openings on the deck of the mount and then simply pressed into place until fully seated and secure. The controller mounting holes themselves will self thread and are sized for a 6-32 x 1/2″ screw. The mount then attaches to the side of the power supply using two M4 x 8mm screws. Compatible with our Ammo Box Mounting System v2 and Voltage Display Mounts.
Note: This is a digital purchase for STL files and not a physical product.
