All of our 3D printed parts use PETG filament which provides good flexibility and resistance to UV exposure when used seasonally.
Dual Falcon Receiver Mount to Meanwell LRS 350 Clearance

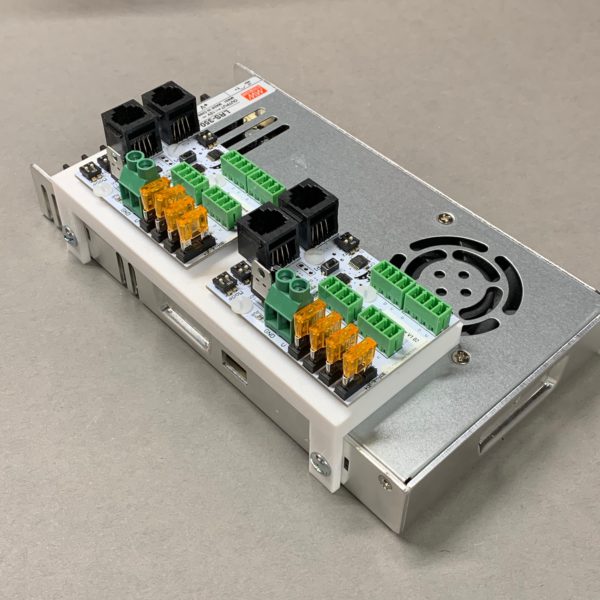

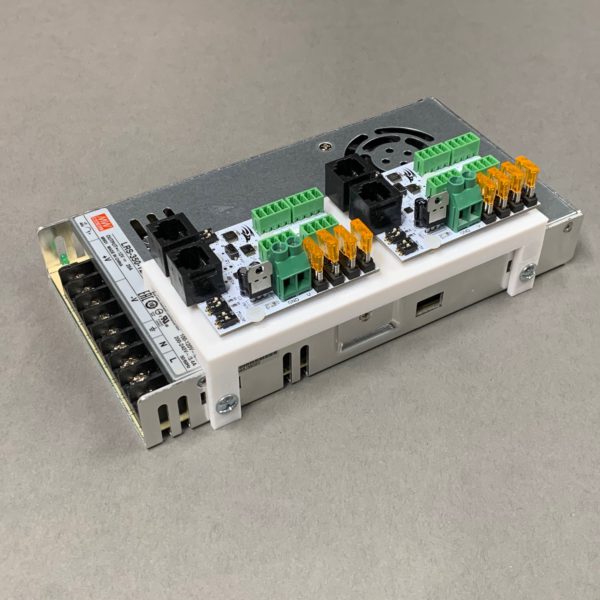

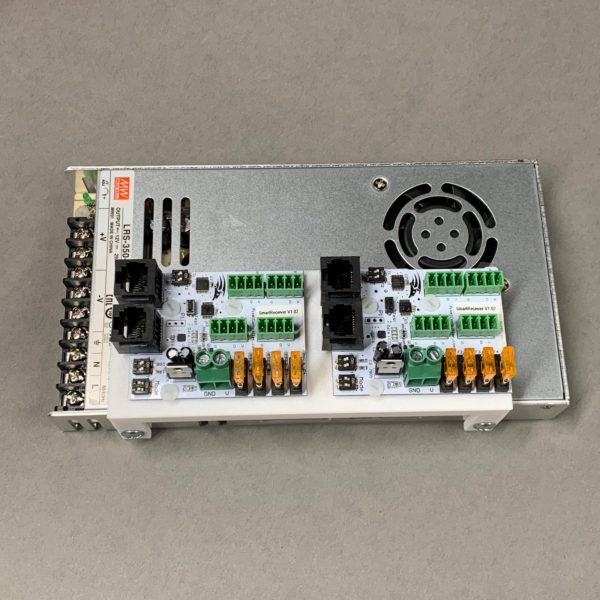

This mount attaches two Falcon 4 port receivers to a Meanwell LRS 350 power supply and comes with 6 or 8 standoffs (depending on version) for mounting the boards so that they don’t sit directly on the mount. The mounting holes for the Falcon receivers will self thread to a 6-32 screw size. We recommend using 6-32 machine screws either 3/8″ or 1/2″ length for attaching the boards to the mount. Then attach the mount to the side of the power supply using two M4 x 8mm screws. Fits both the older Falcon red receivers and newer white receivers. The mount also features a slot on the underside that allows for our voltage display mount to be snapped onto the receiver mount for easy reading of the power supply voltage. This clearance item is the older mount design with regular standoffs and not the press fit standoffs. Note: Pictures depict the v1.xx version of the Falcon receiver. Includes 3D printed part only, no hardware or electronics. Colors may vary, typically they are white or black.
|Falcon Receiver Version||

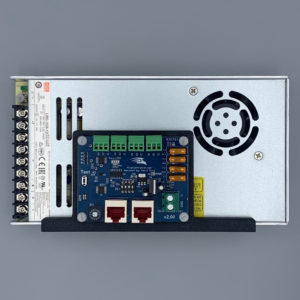

v1.xx (red or white), v2.xx (blue)
